Engine Temperature Sensor: Service and Repair

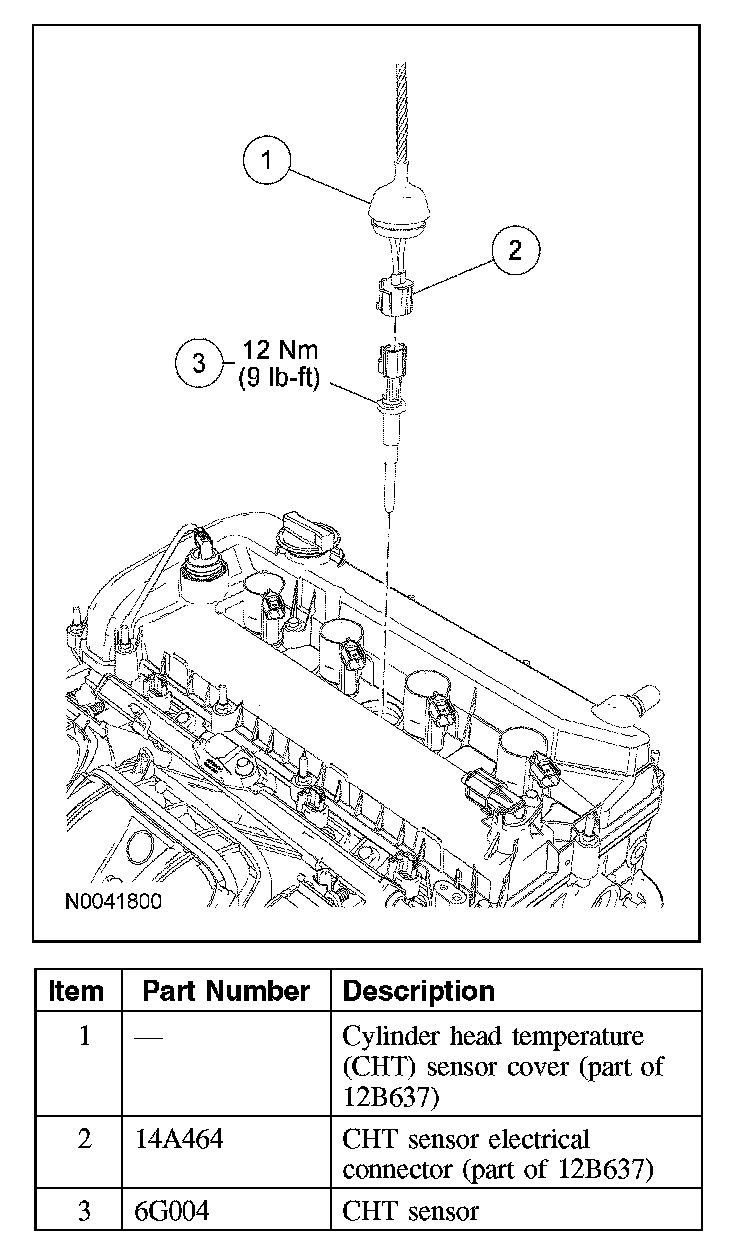

CYLINDER HEAD TEMPERATURE (CHT) SENSOR







Removal and Installation
1. Detach the cylinder head temperature (CHT) sensor cover and position aside.
2. Disconnect the CHT electrical connector.
3. Remove and discard the CHT.
- To install, tighten to 12 Nm (9 lb-ft).

4. To install, reverse the removal procedure.
- Do not reuse the CHT sensor, install a new sensor.
