Compression Check: Specifications
AllData Editors Note - Ford does not provide a cranking pressure specification, only an acceptable range.Compression Test
The indicated compression pressures are considered within specification if the lowest reading cylinder is at least 75% of the highest reading. Refer to the Compression Pressure Limit Chart.

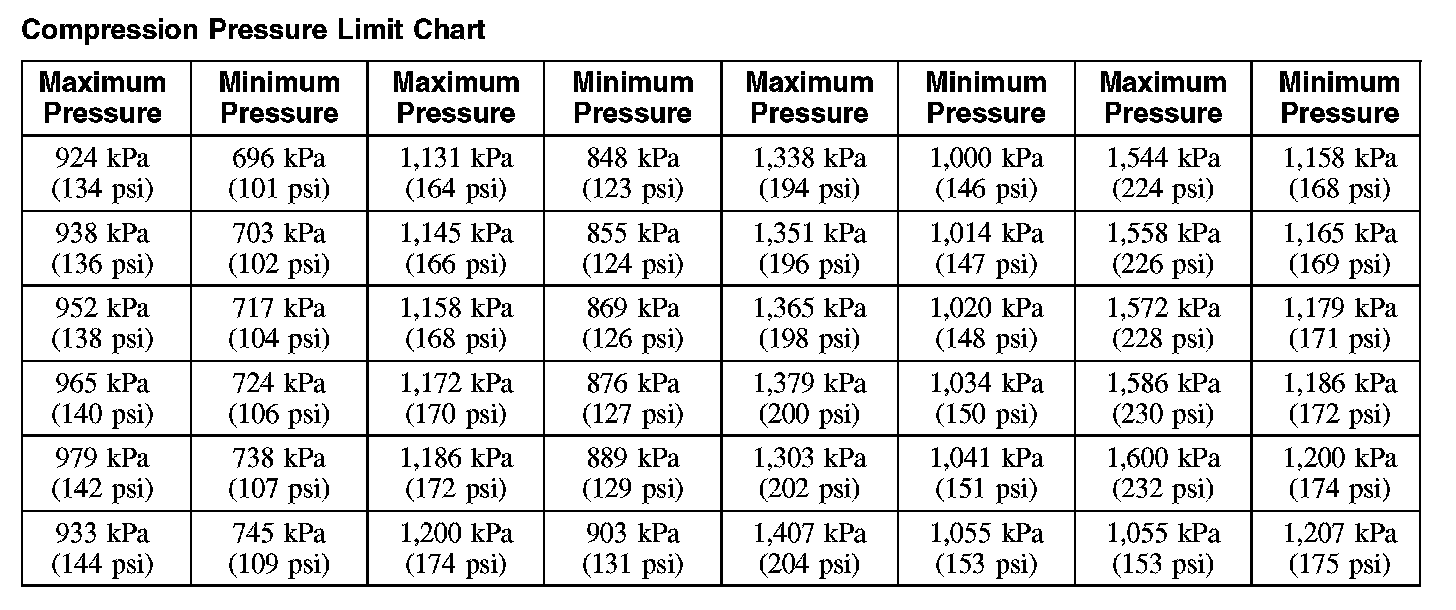

Compression Pressure Limit Chart (Part 1):

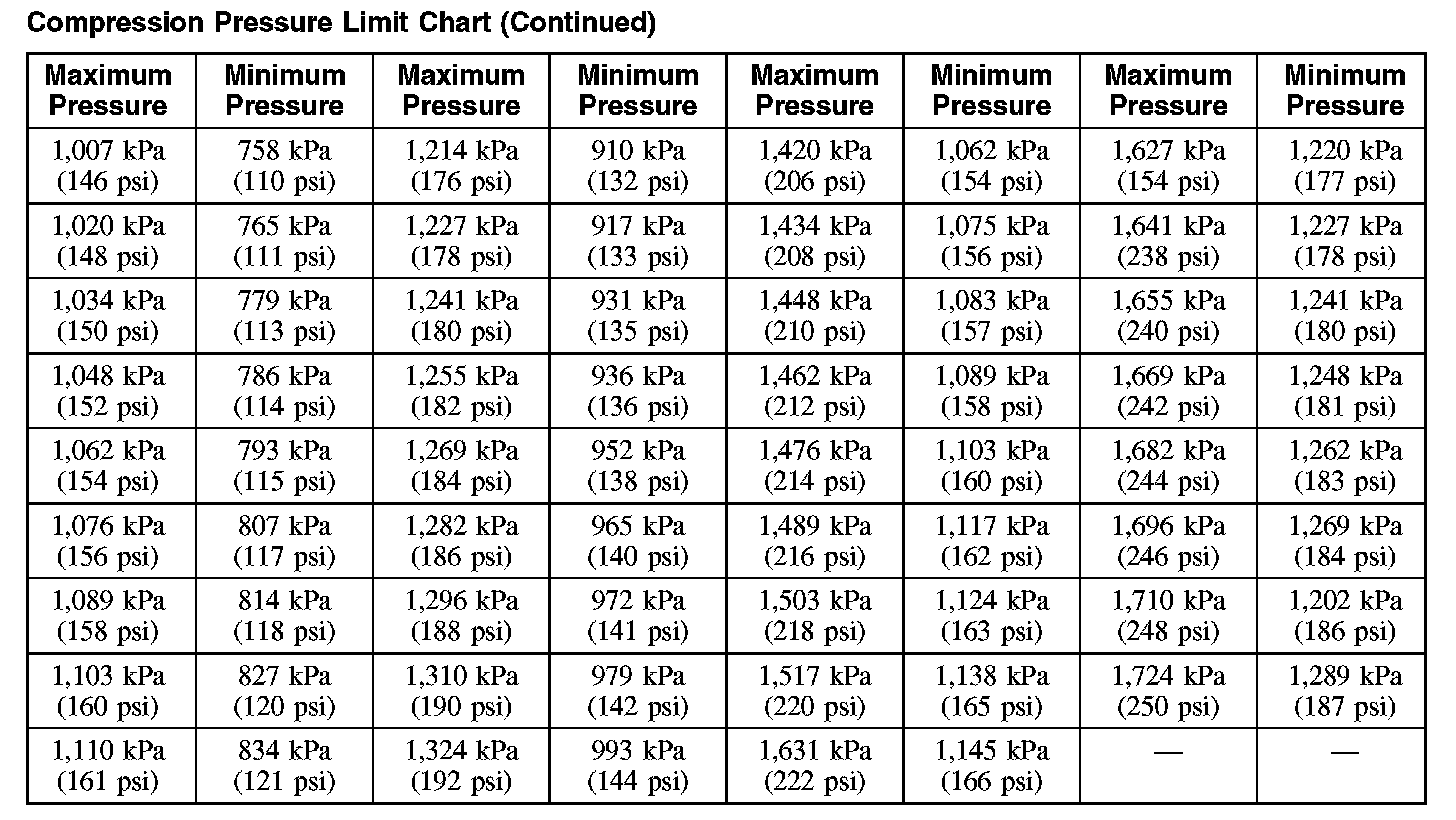

Compression Pressure Limit Chart (Part 2):
