Torque Specifications

Torque Specifications

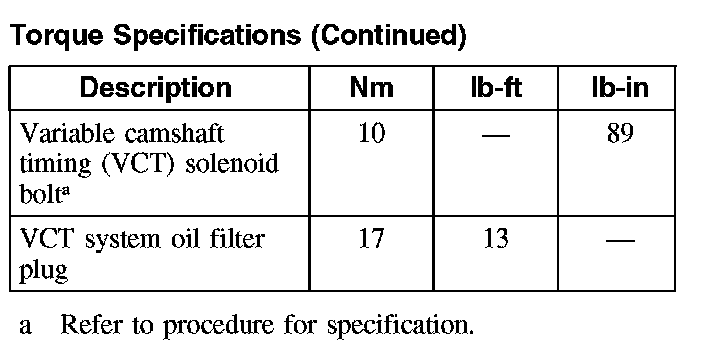

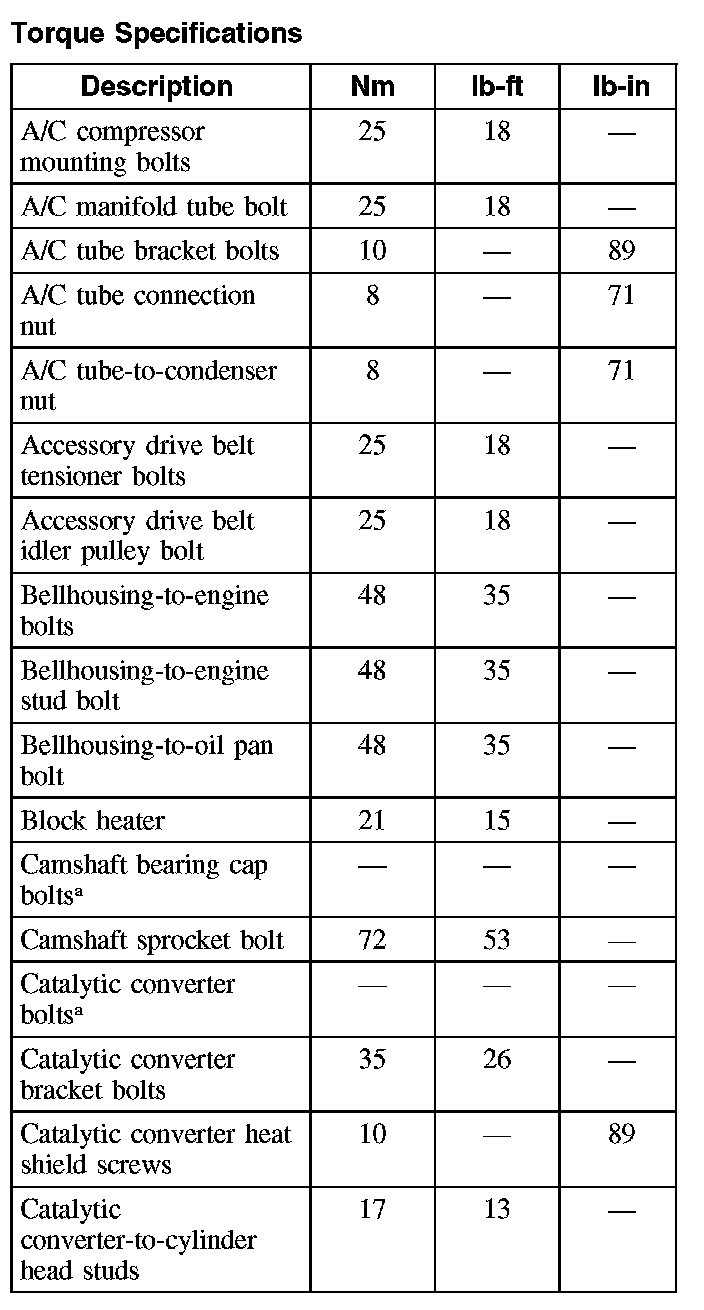

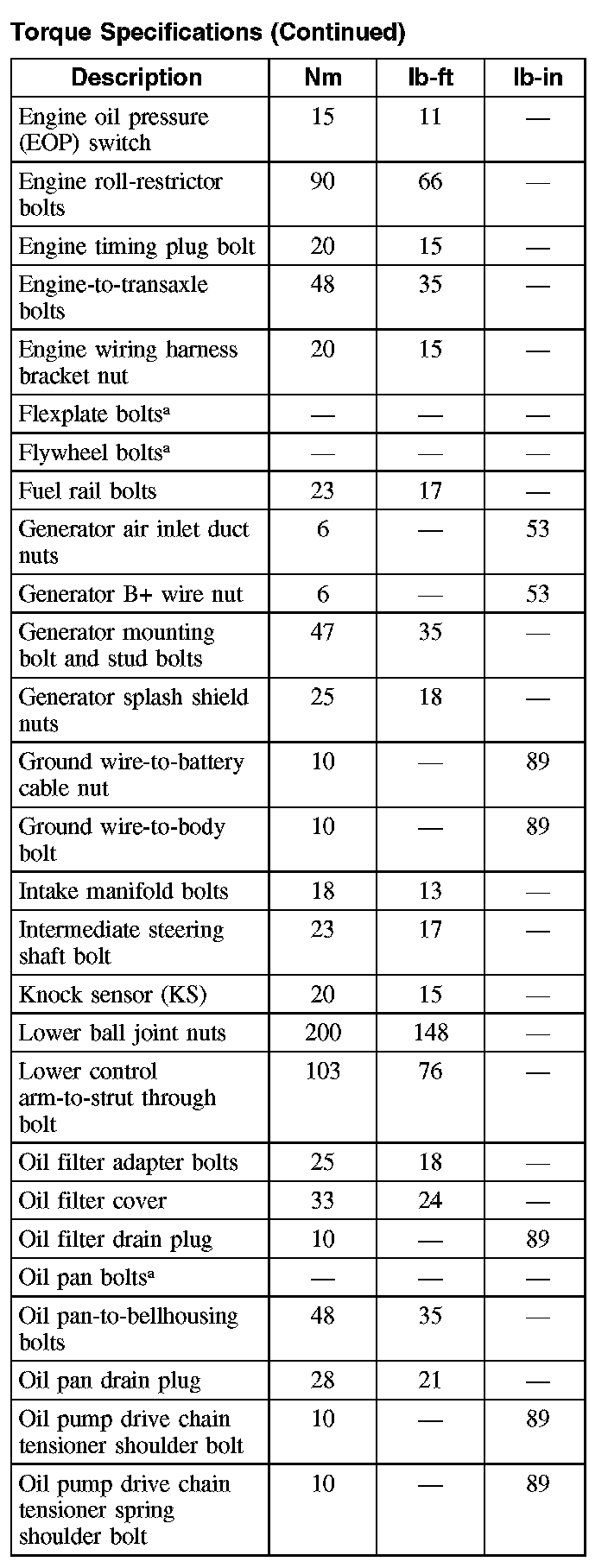

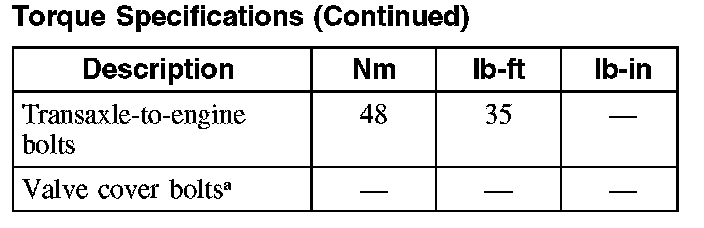

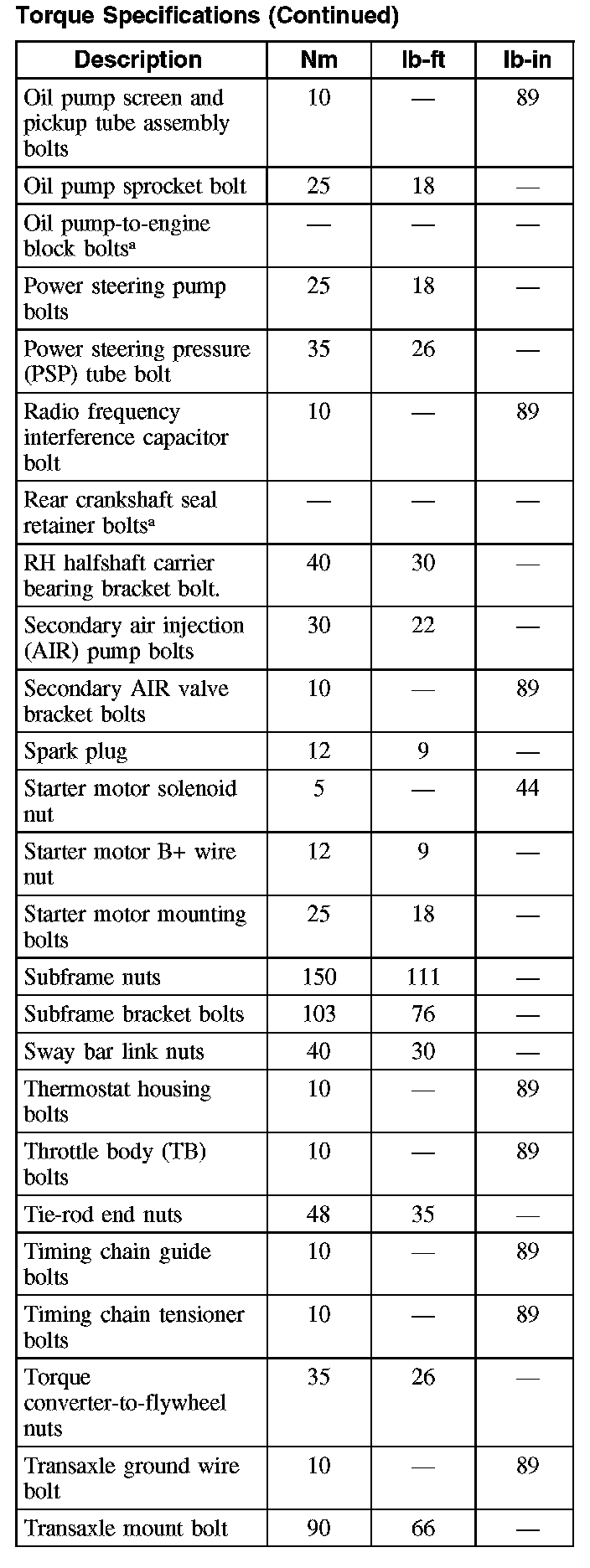

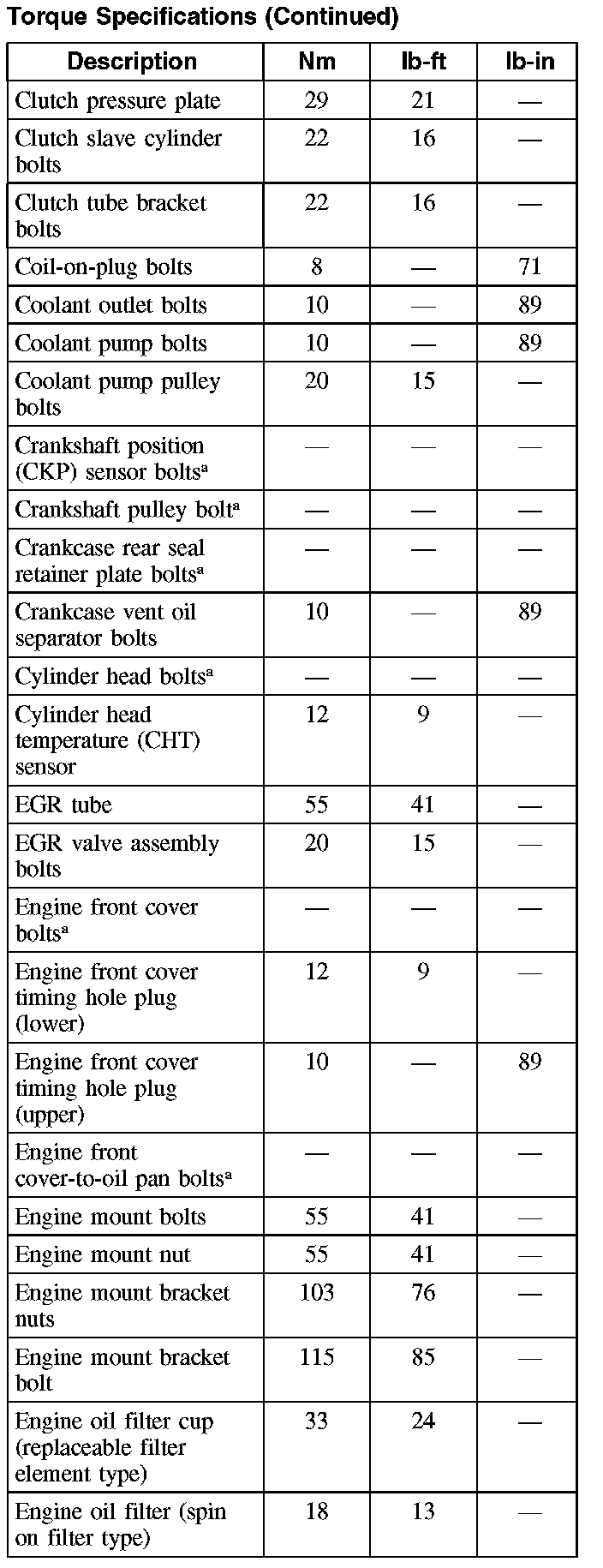

Torque Specifications (Part 1):

Torque Specifications (Part 2):

Torque Specifications (Part 3):

Torque Specifications (Part 4):

Torque Specifications (Part 5):

Torque Specifications (Part 6):

NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.
