System Specifications

Timing Chain Tensioner Bolts 10 Nm (89 lb-inch)

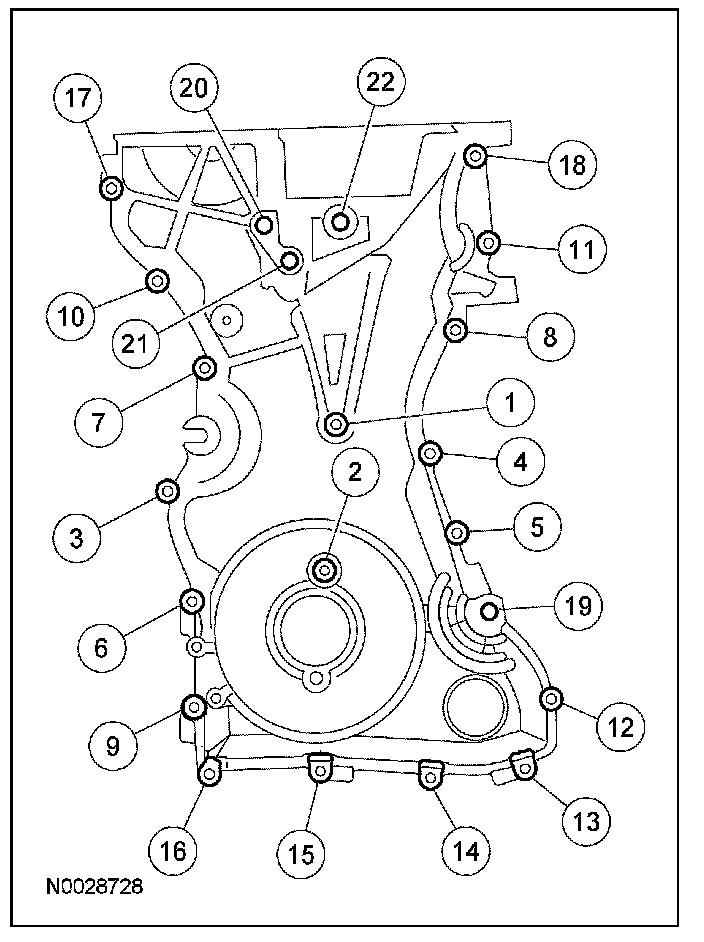

Engine Front Cover Bolts





8-mm bolts 10 Nm (89 lb-inch)
13-mm bolts 48 Nm (35 lb-ft).

Crankshaft Pulley Bolt

NOTE: Do not reuse the crankshaft pulley bolt.

First pass 100 Nm (74 lb-ft).
Final pass Tighten an additional 90° (1/4 turn)
