Test H: Radio Interference

PINPOINT TEST H: RADIO INTERFERENCE

Normal Operation
The generator radio suppression equipment reduces interference transmitted through the speakers by the vehicle electrical system.

This pinpoint test is intended to diagnose the following:
- Generator
- In-vehicle entertainment system

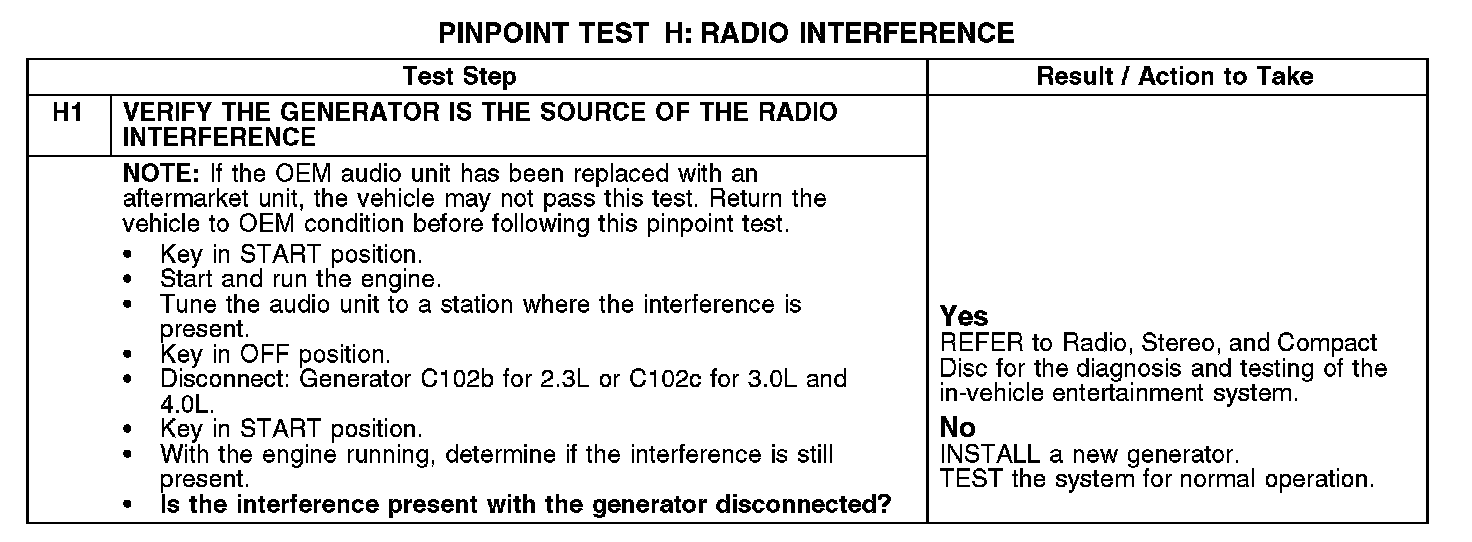

H1:
