Battery Tray

BATTERY TRAY

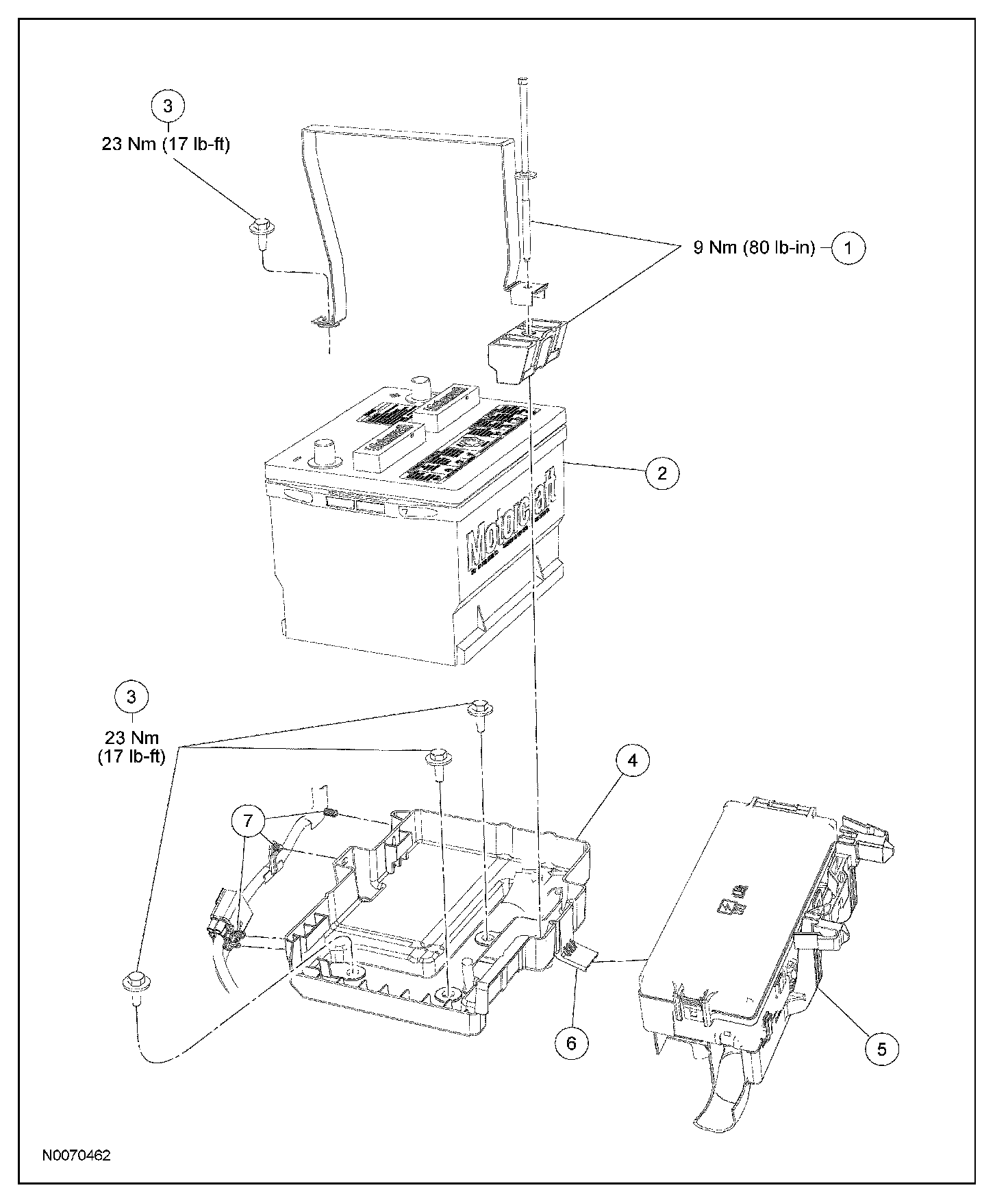

Exploded View

Part 1:

Part 2:

Removal and Installation
1. Remove the battery.
2. Disconnect the 4 wiring harness fasteners from the battery tray.
3. Remove the 4 bolts from the battery tray.
- To install, tighten to 23 Nm (17 lb-ft).

4. Disconnect the power distribution box (PDB) fastener and remove the battery tray.
5. To install, reverse the removal procedure.
