Control Module: Service and Repair

Four Wheel Drive (4WD) Control Module

Removal and Installation

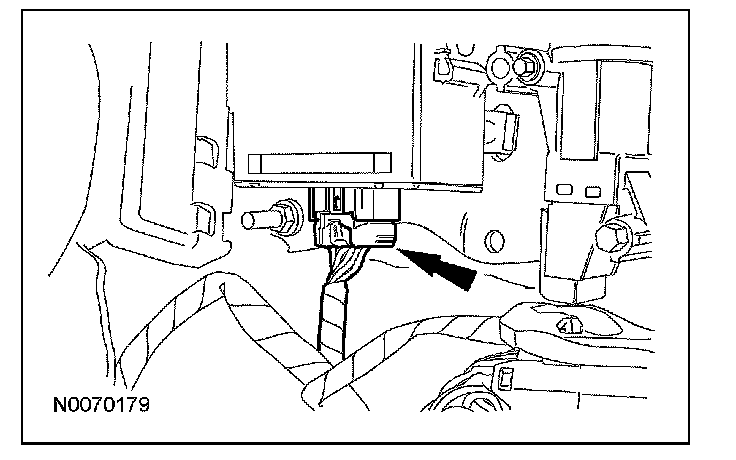

1. Working in the passenger compartment, pull the carpet out-of-the way, then disconnect the four wheel drive (4WD) control module electrical connector.

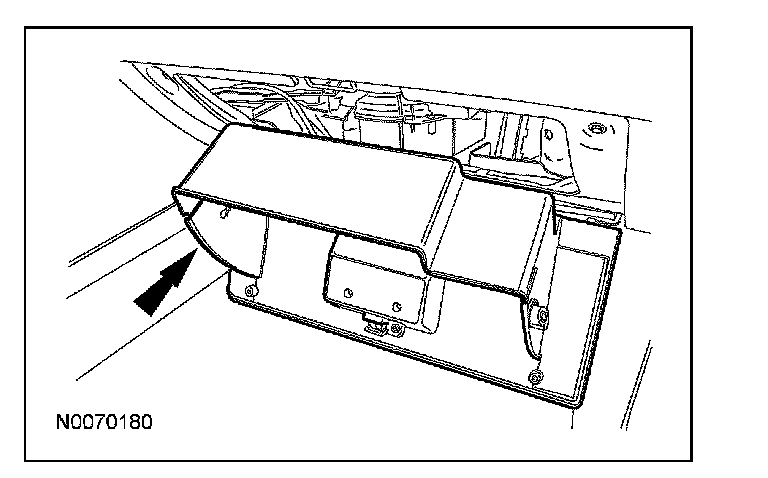

2. Disconnect the glove compartment rod. Rotate the glove compartment downward.

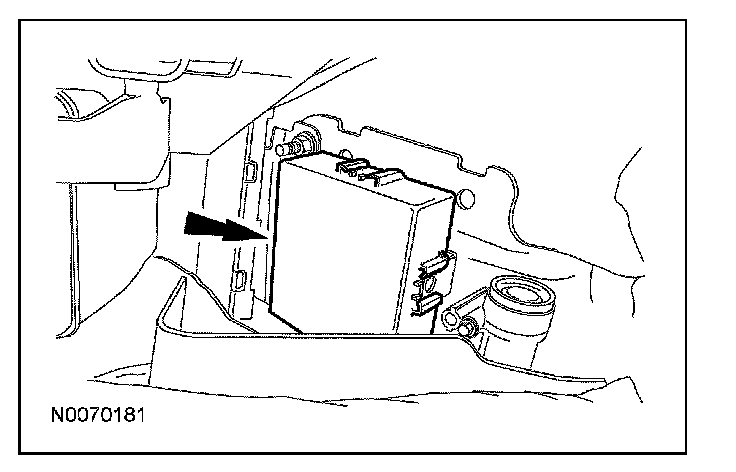

3. Carefully pry the 4WD control module and bracket assembly from the holding bracket.





4. Remove the 4WD control module and bracket assembly from the vehicle.
5. To install, reverse the removal procedure.
