Memory Positioning Module: Service and Repair

DRIVER SEAT MODULE (DSM)

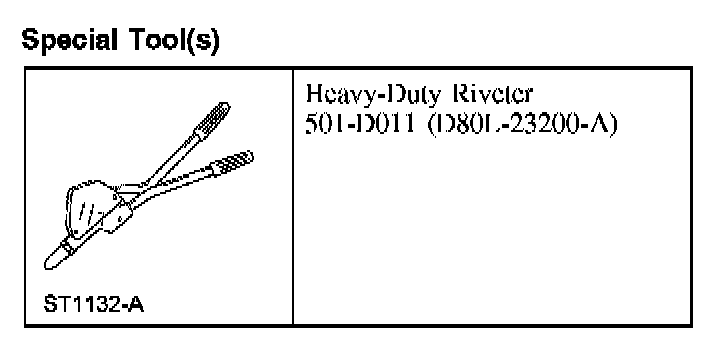

Special Tool(s)

Special Tool(s):

Part 1:

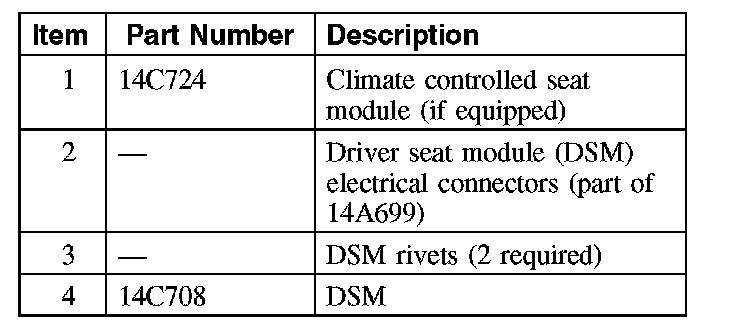

Part 2:

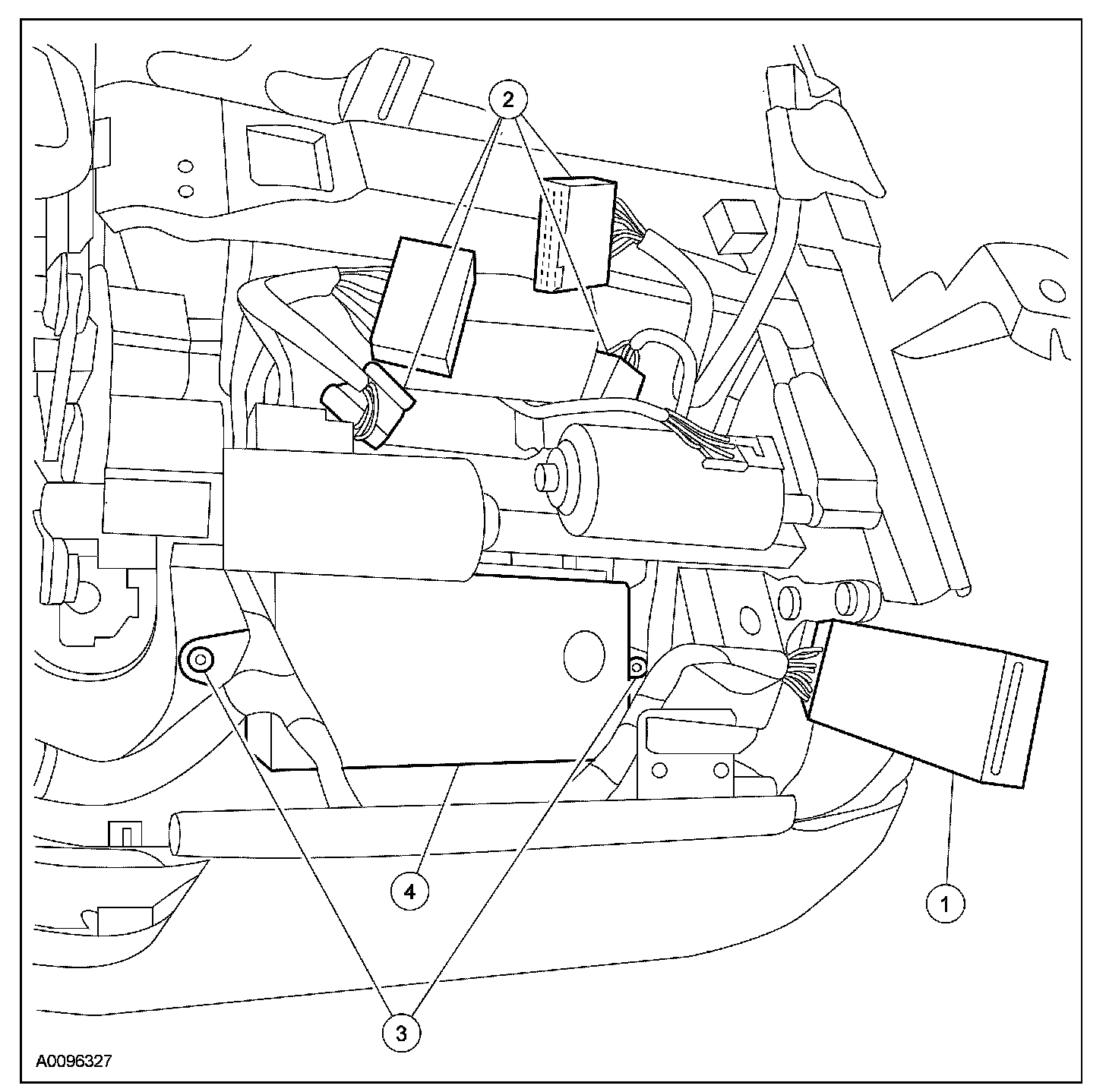

Removal and Installation
1. Remove the driver seat.
2. If equipped, position the dual climate control seat module (DCSM) aside.
3. Disconnect the driver seat module (DSM) electrical connectors.
4. Using a drill, remove the 2 rivets and the DSM.
5. To install, reverse the removal procedure.
- Use the special tool to install the 2 rivets.
