Compression Check: Specifications

The indicated compression pressures are considered within specification if the lowest reading cylinder is at least 75% of the highest reading. Refer to the Compression Pressure Limit Chart.

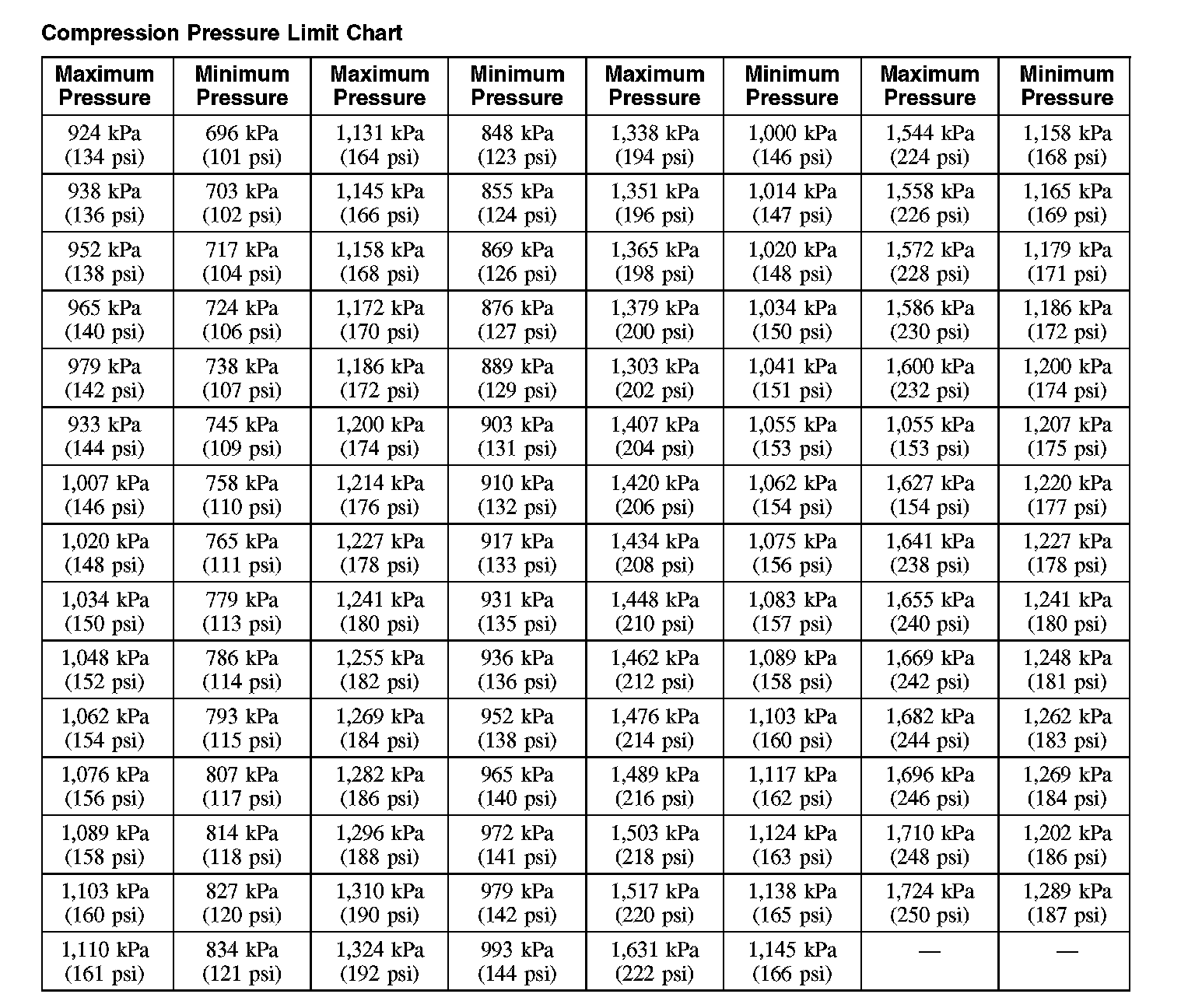

Compression Pressure Limit Chart:
