Typical Diagnostic Reference Values

Typical Diagnostic Reference Values Notes (Part 1):





Typical Diagnostic Reference Values Notes (Part 2):

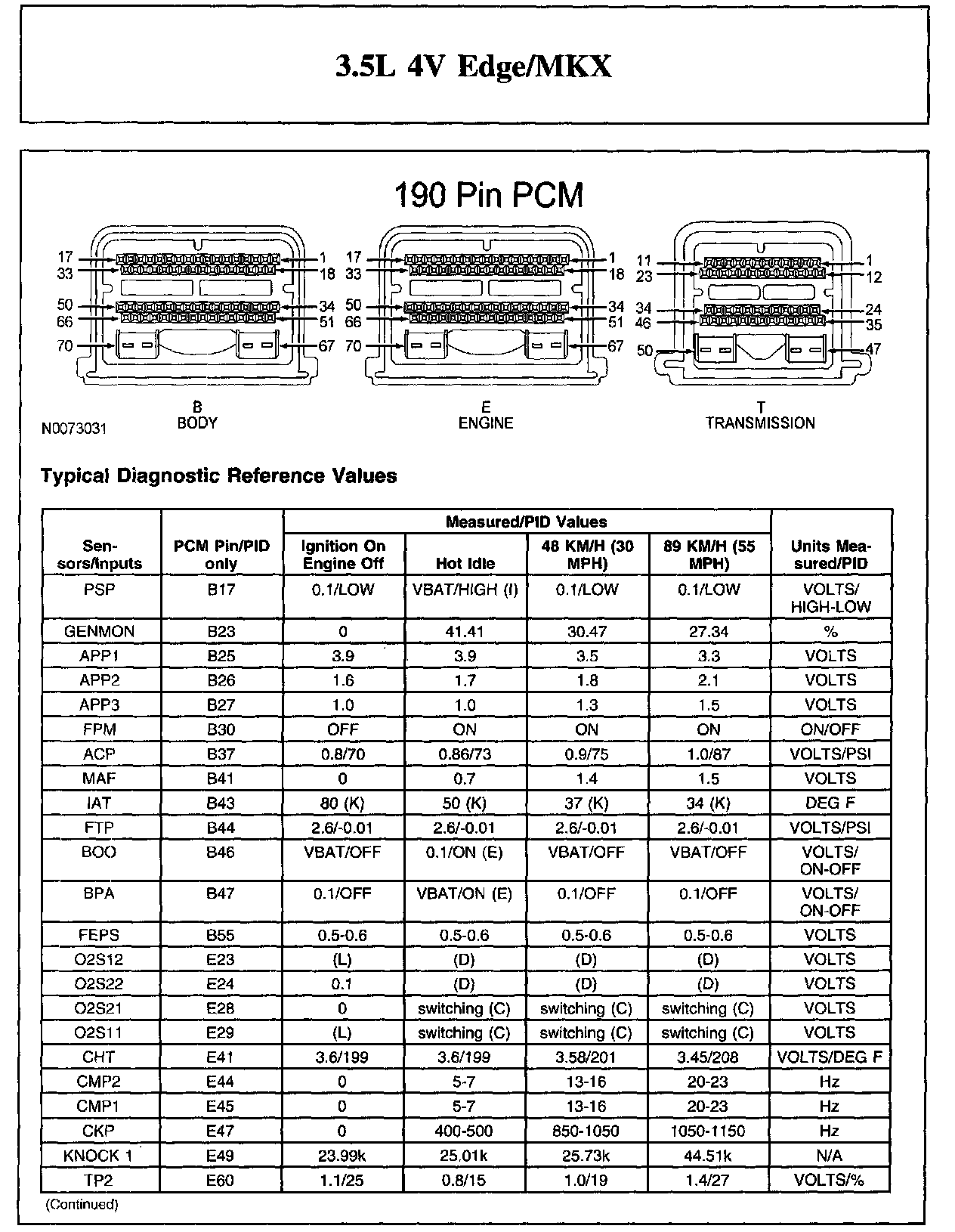

3.5L 4V Edge/MKX (Part 1):

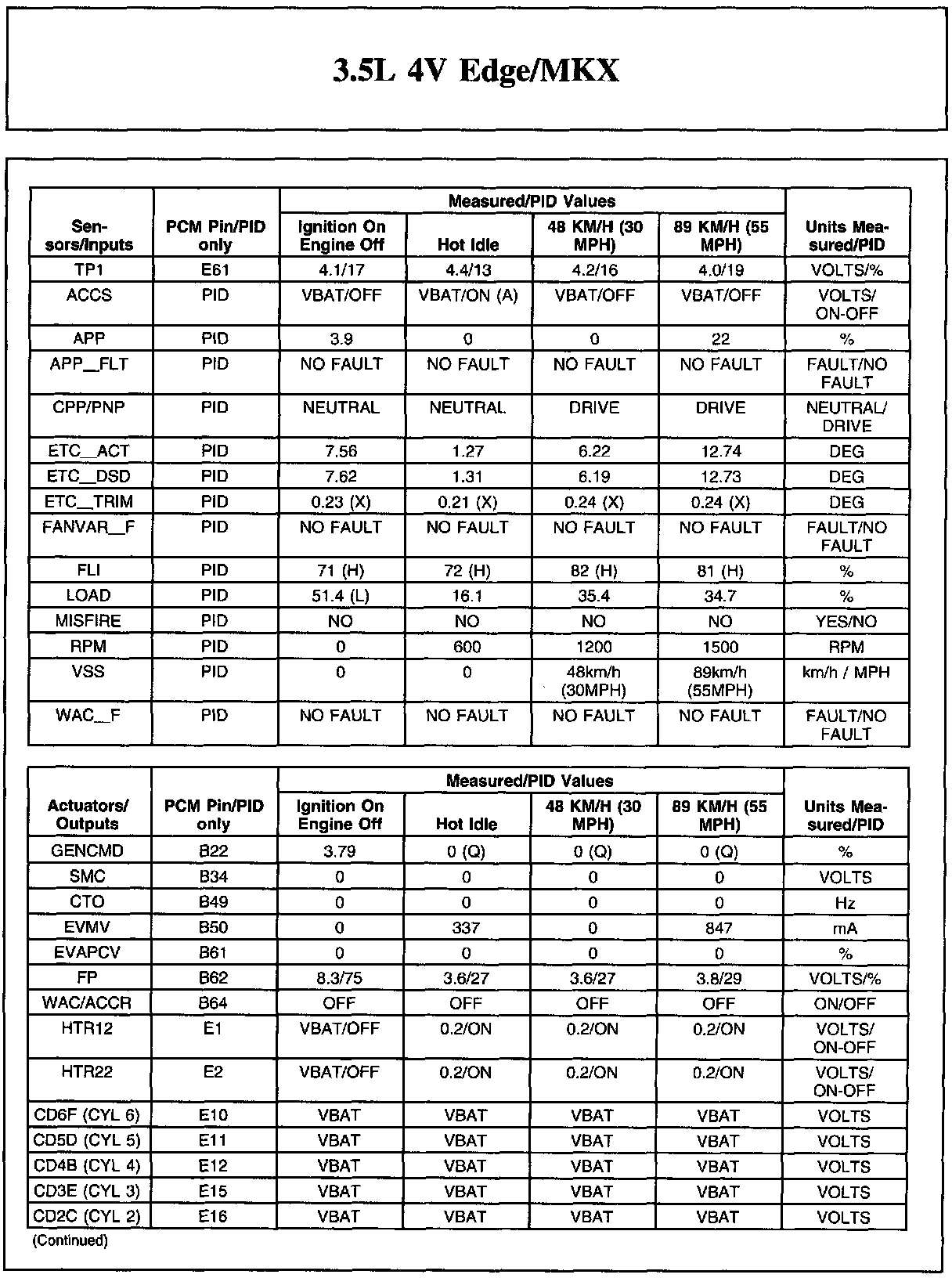

3.5L 4V Edge/MKX (Part 2):

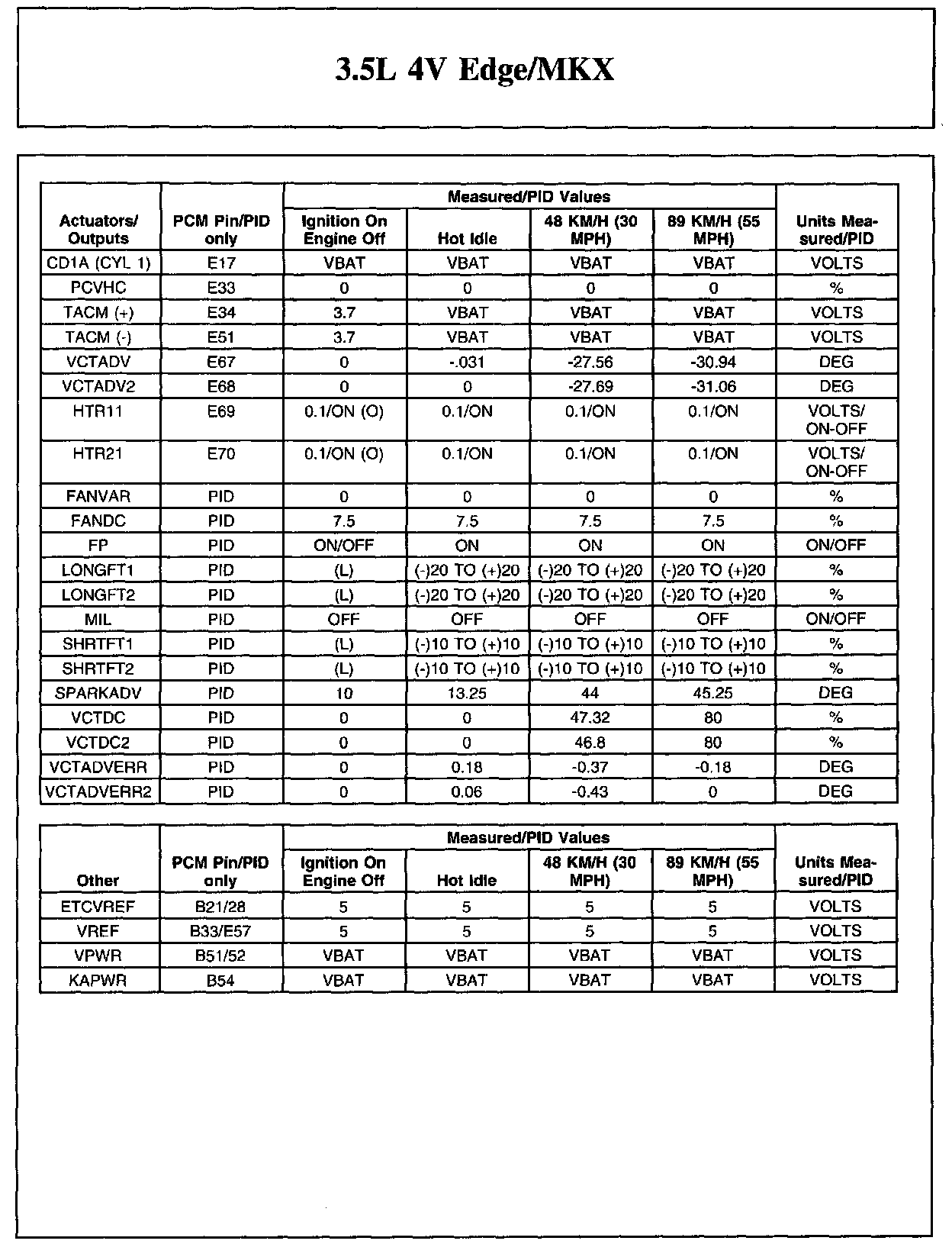

3.5L 4V Edge/MKX (Part 3):
