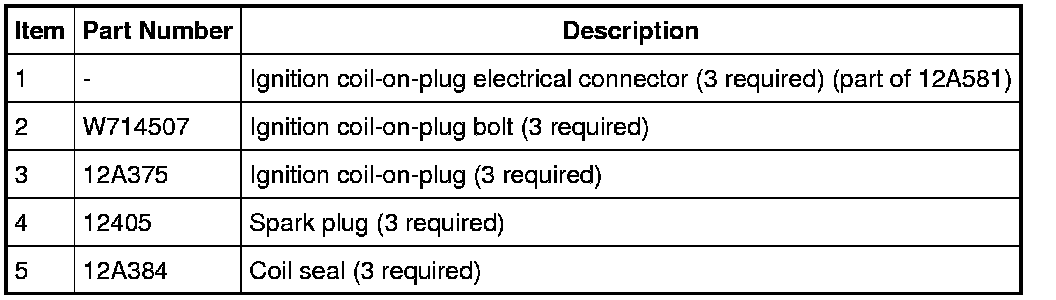

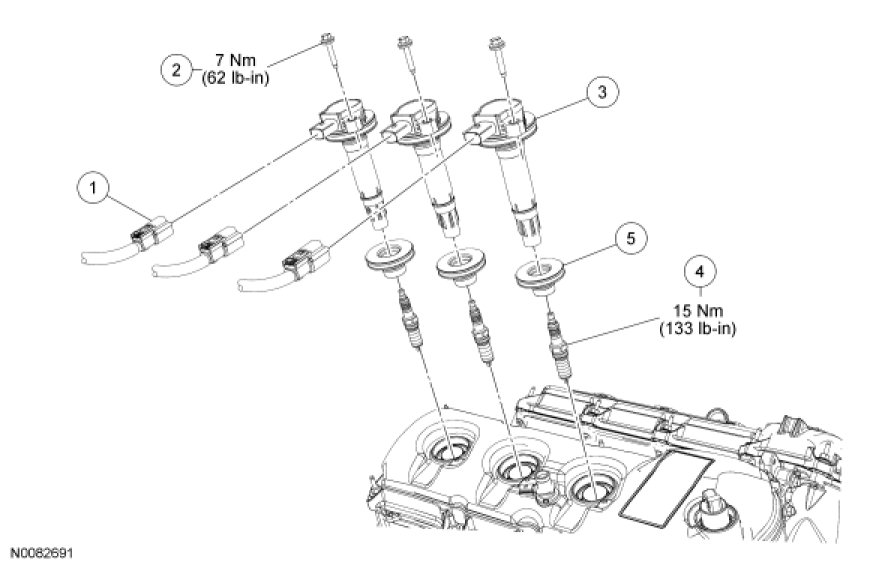

Engine Ignition Components - Exploded View - RH Side




Engine Ignition Components - Exploded View

RH Side









1. For additional information, refer to the procedures.
