Driver Seat Module (DSM): Notes

WARNING: This page is about a different car, the 2009 Ford Flex. However, it is still accessible from the selected car via links, so may be relevant.

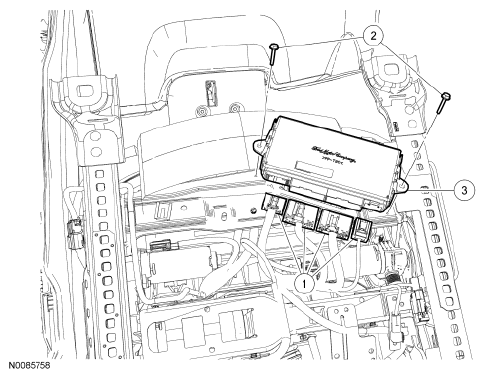

Fig 1: Identifying Driver Seat Module
G06070677Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 - Driver Seat Module (DSM) electrical connectors (4 required) (part of 14D231)
2 - DSM  bolts (2 required)
3 14C708 DSM
