Seat Temperature Control Module: Service and Repair

Seat - Exploded View, Front

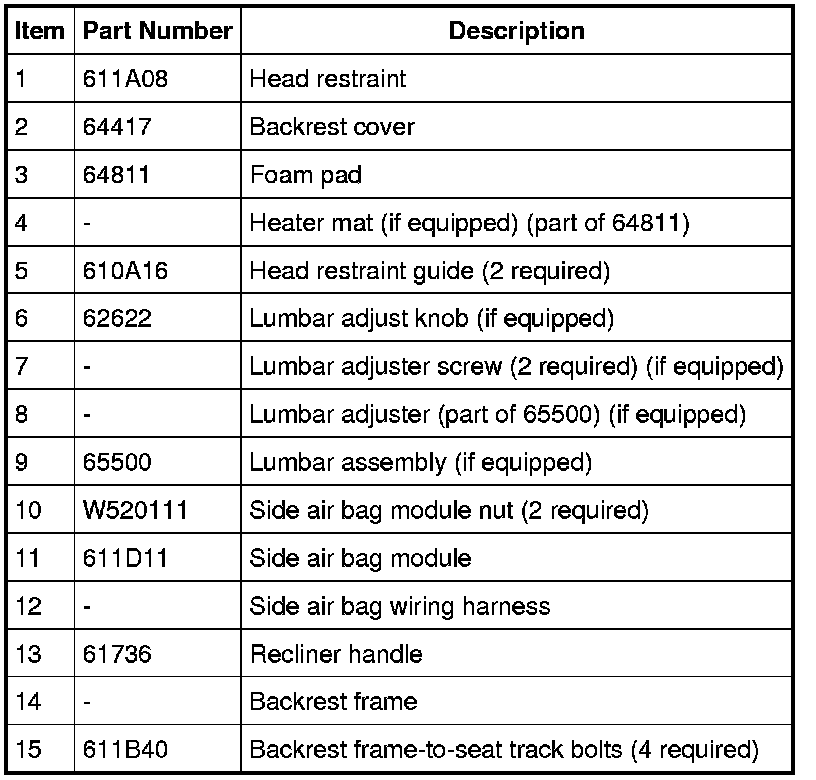

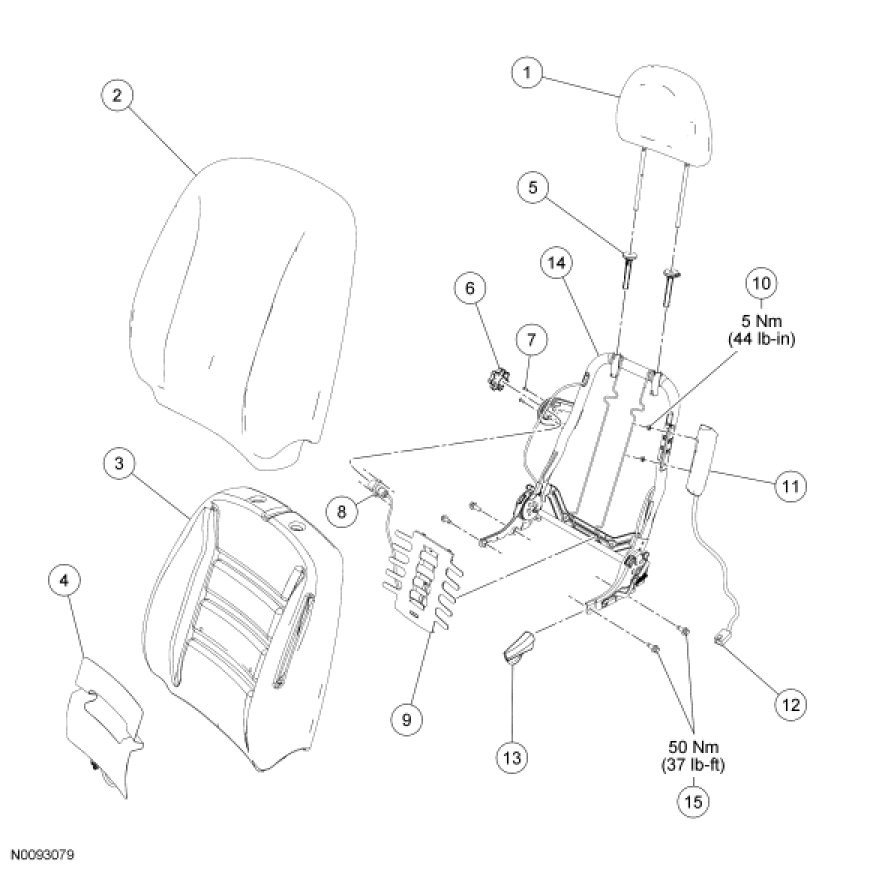

Seat Backrest - Front

NOTE: Driver seat shown, passenger seat similar.

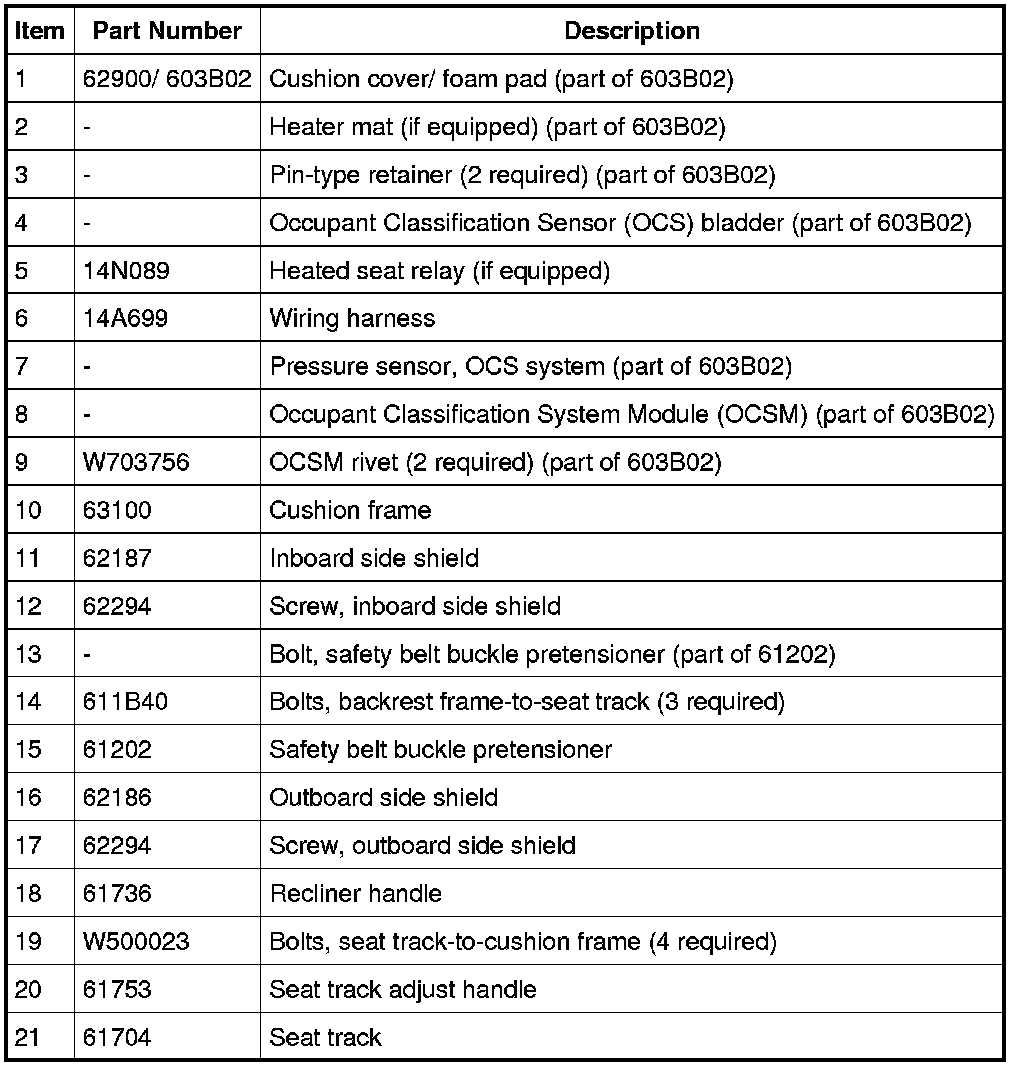

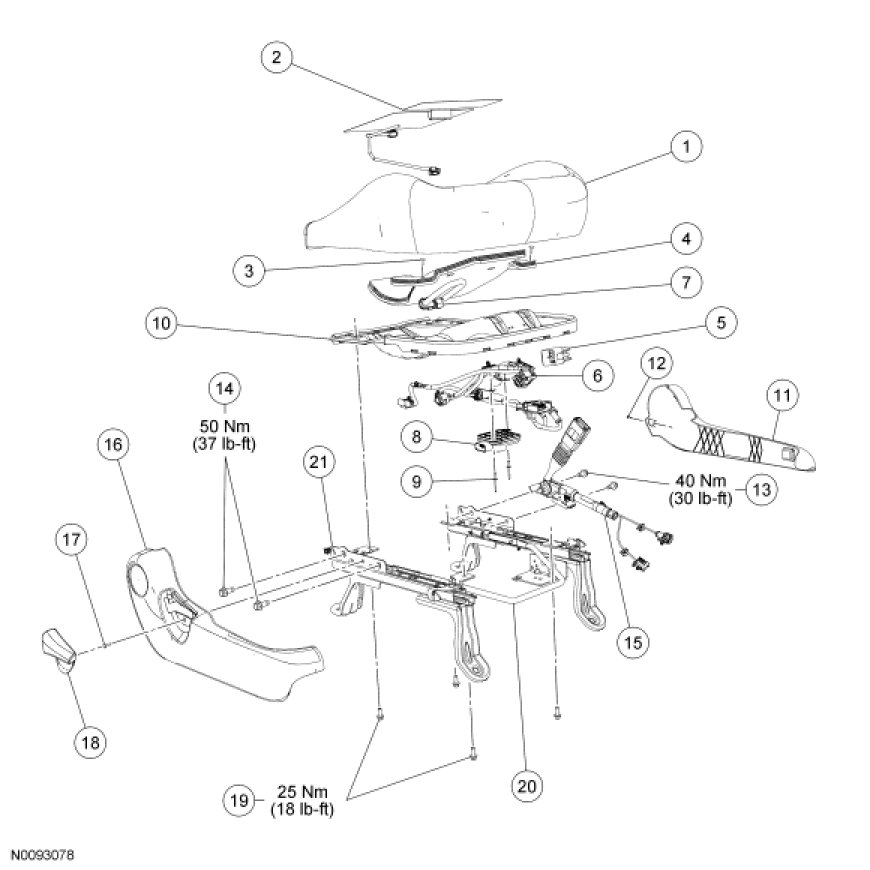

Seat Cushion - Driver

NOTE: Power seat track shown, manual seat track similar.

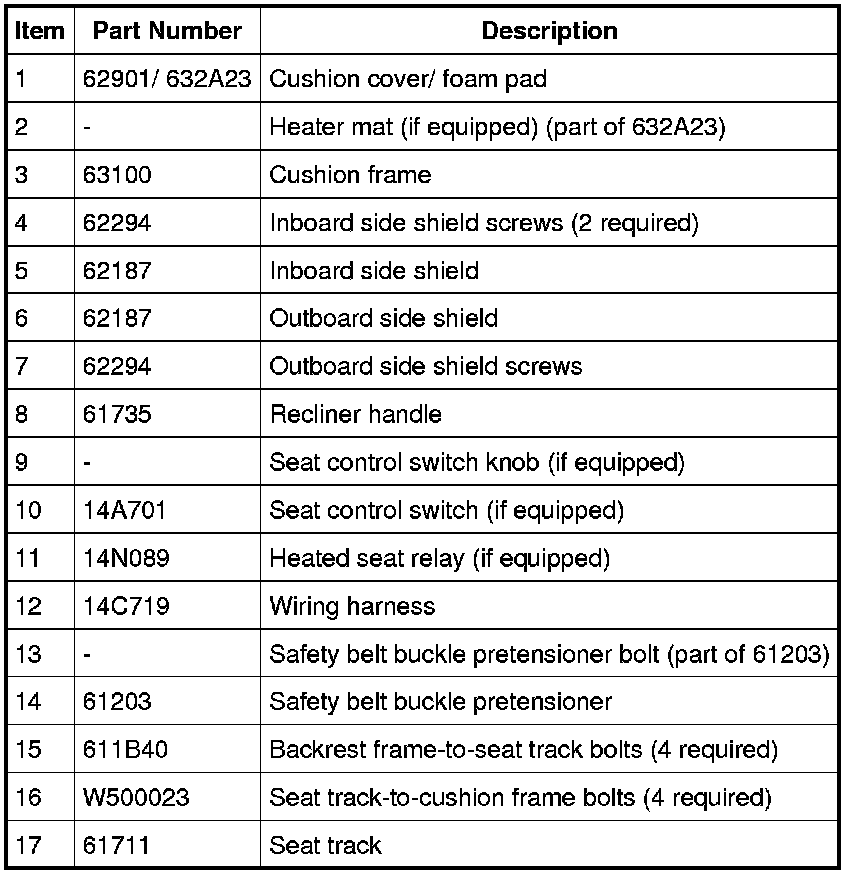

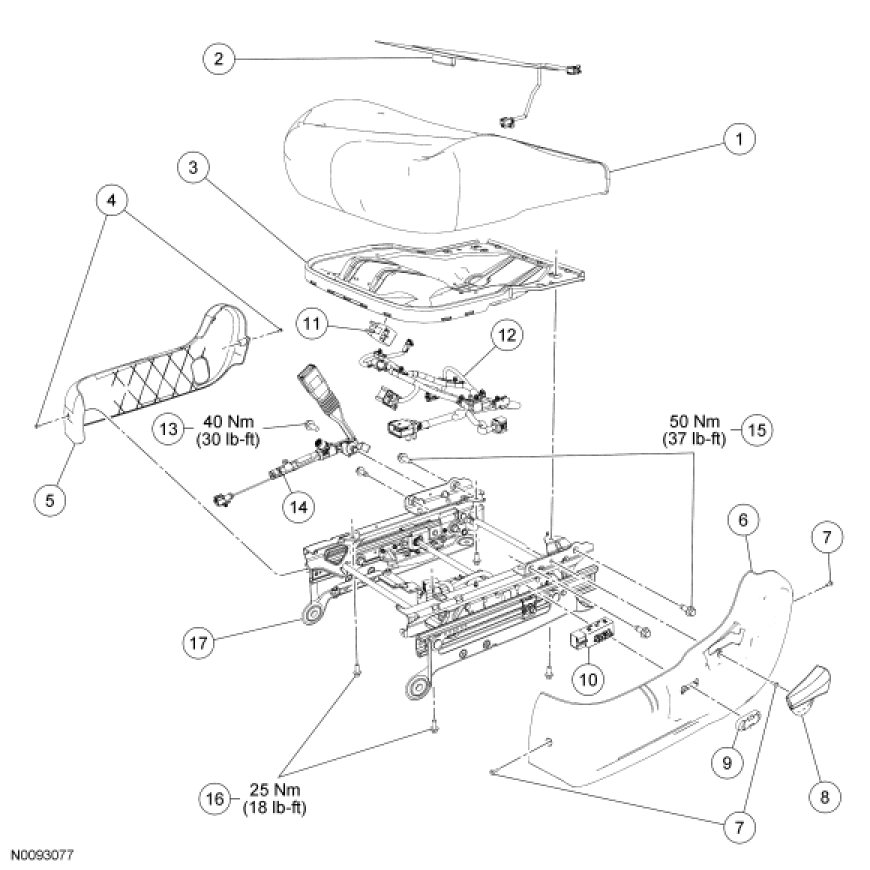

Seat Cushion - Front, Passenger









1. For additional information, refer to the procedures.
