Speed Control Switch

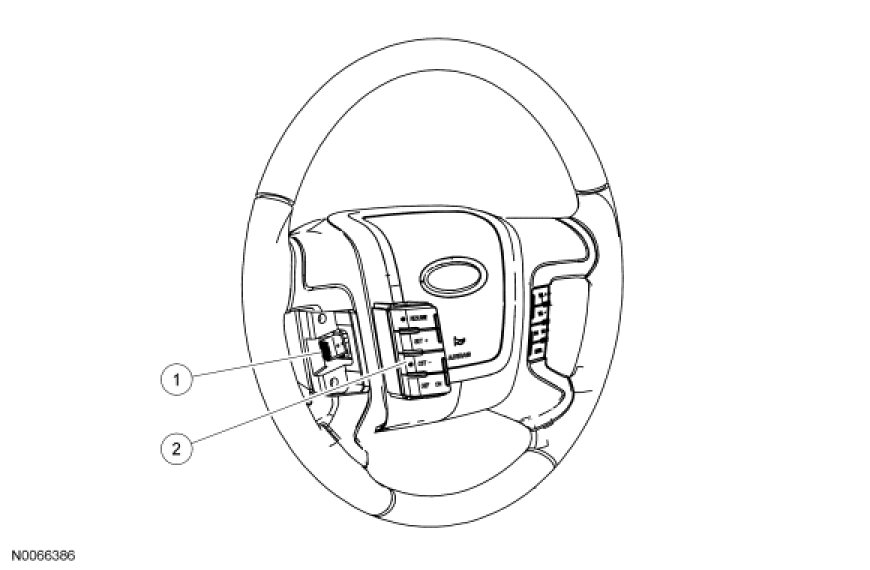

Speed Control Switch

Escape and Mariner shown, Hybrid similar









Removal and Installation

1. Remove the speed control switch by pulling the switch toward the rear of the vehicle.

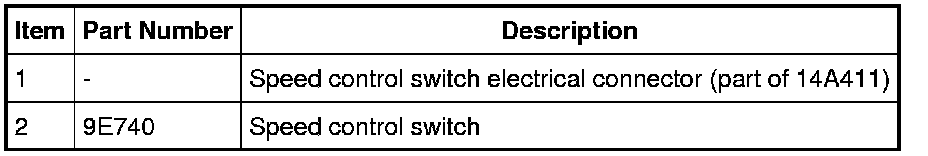

- Disconnect the electrical connector.

2. To install, reverse the removal procedure.
