Module Configuration
Module Configuration

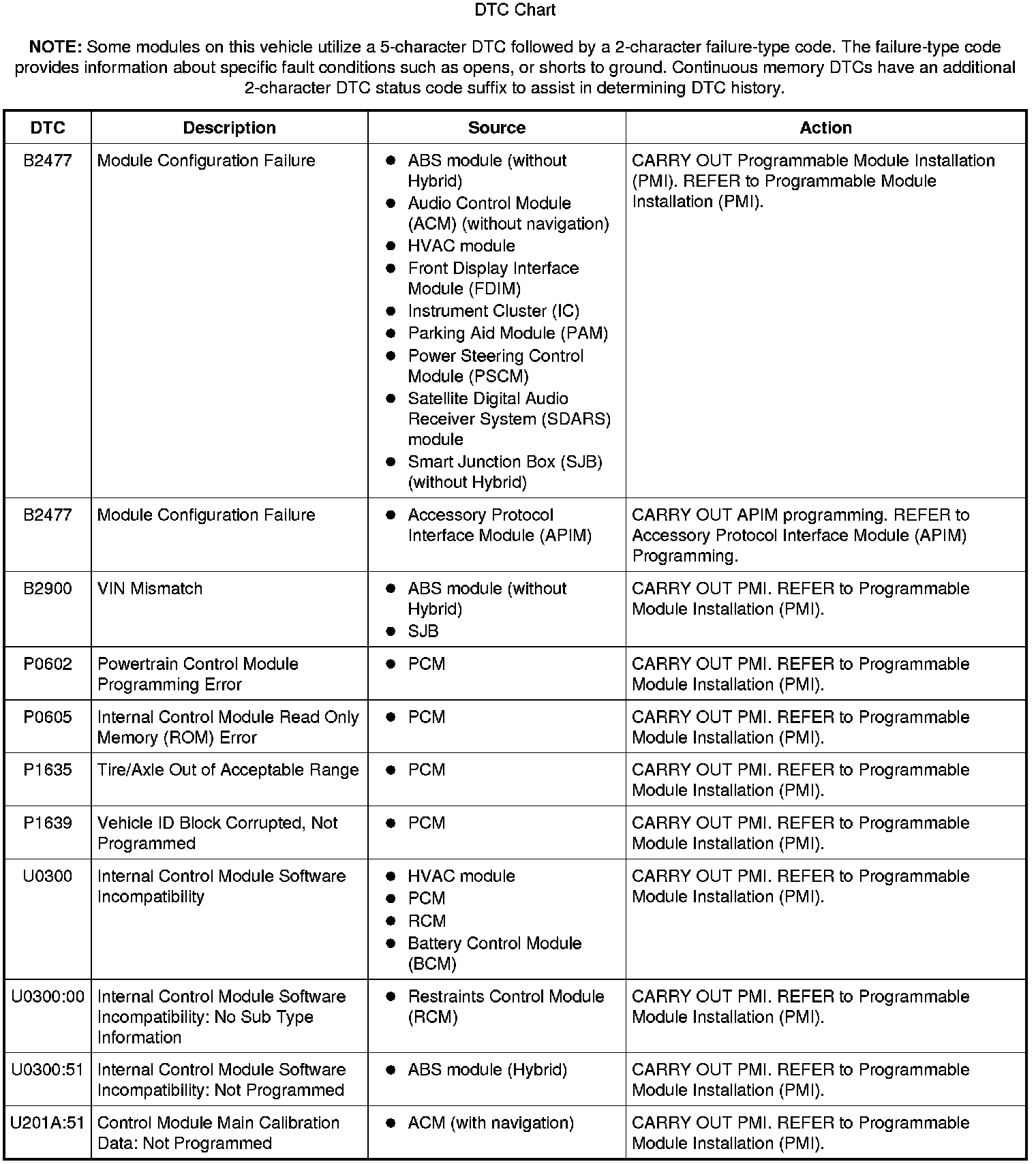

B2477-B2900 / P0602-P1639 / U201A:51-U0300:51:

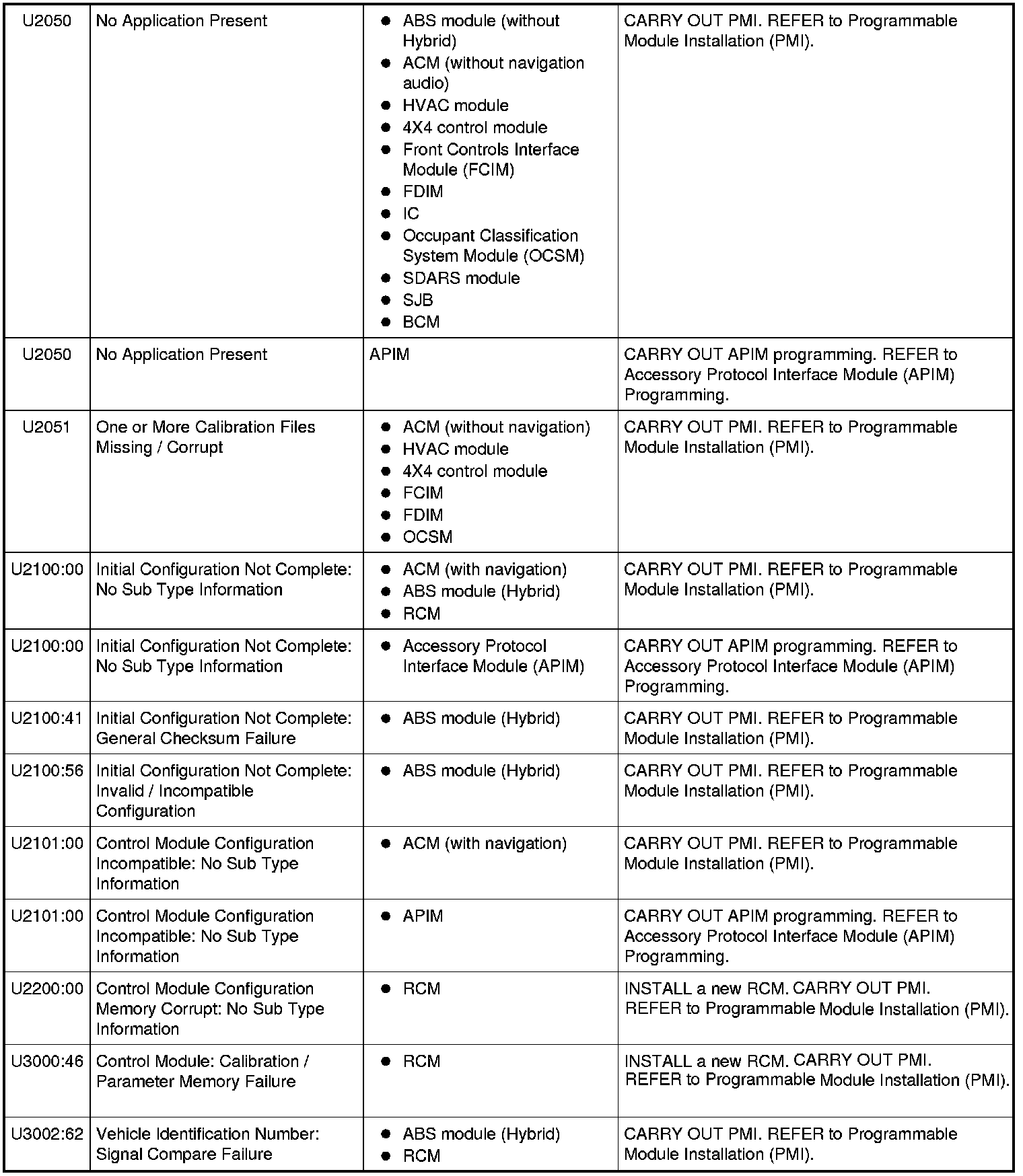

U2050-U3002:62:
