Camshaft Bearing

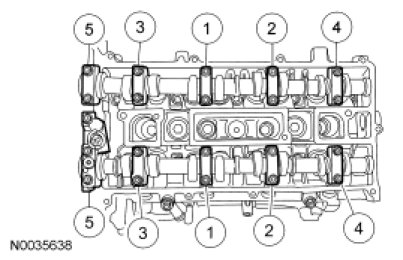

Stage 1: Tighten the
camshaft bearing
cap bolts one at a time until finger tight.
Stage 2: Tighten to
7 Nm (62 lb-in).
Stage 3: Tighten to
16 Nm (142 lb-in).
