Reverse Position: Notes

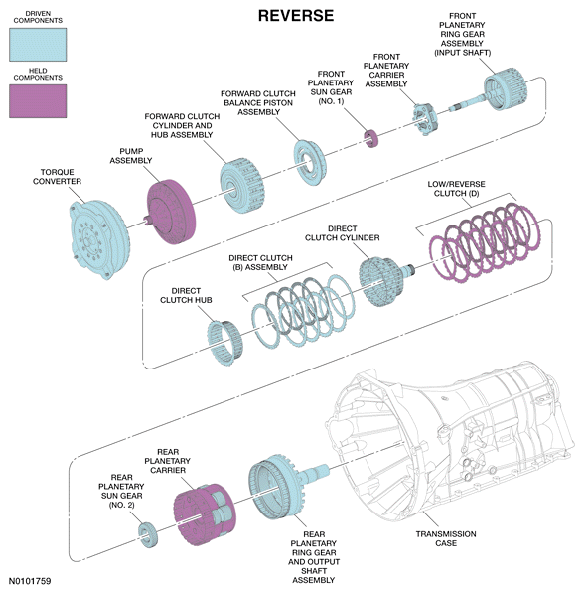

Fig 1: Reverse Position Chart
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
