Seat Temperature Control Module: Service and Repair

Seat - Exploded View, Front

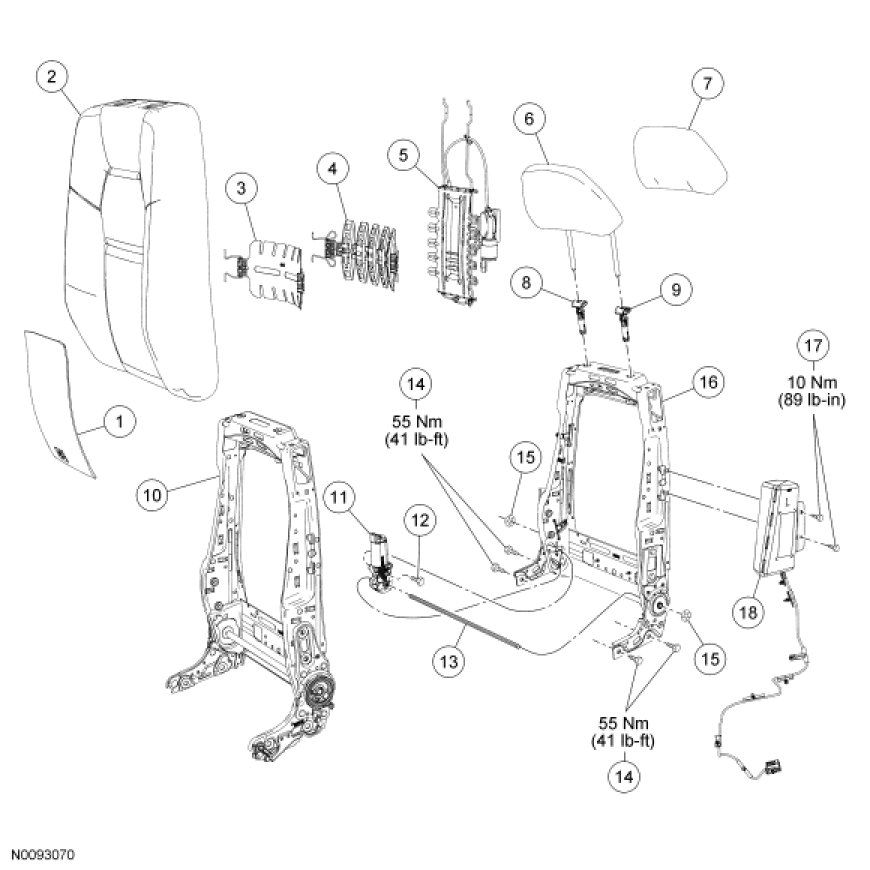

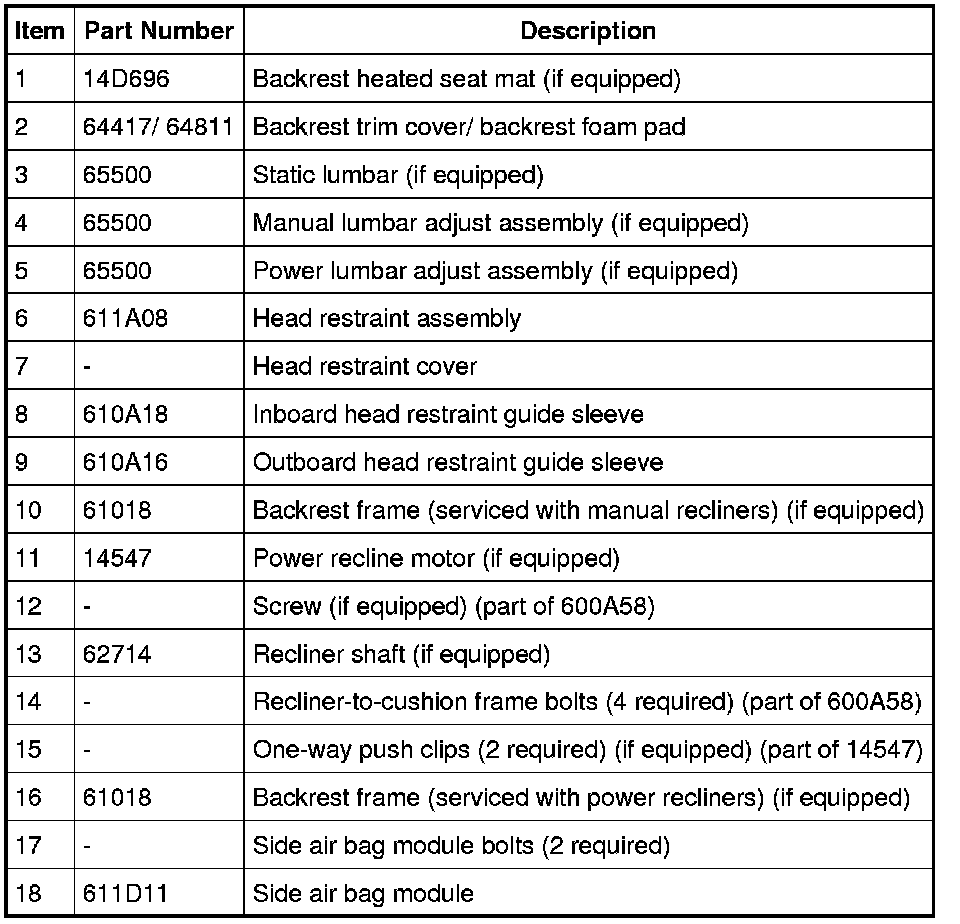

Front Seat Backrest

NOTE: Driver backrest shown, passenger backrest similar.

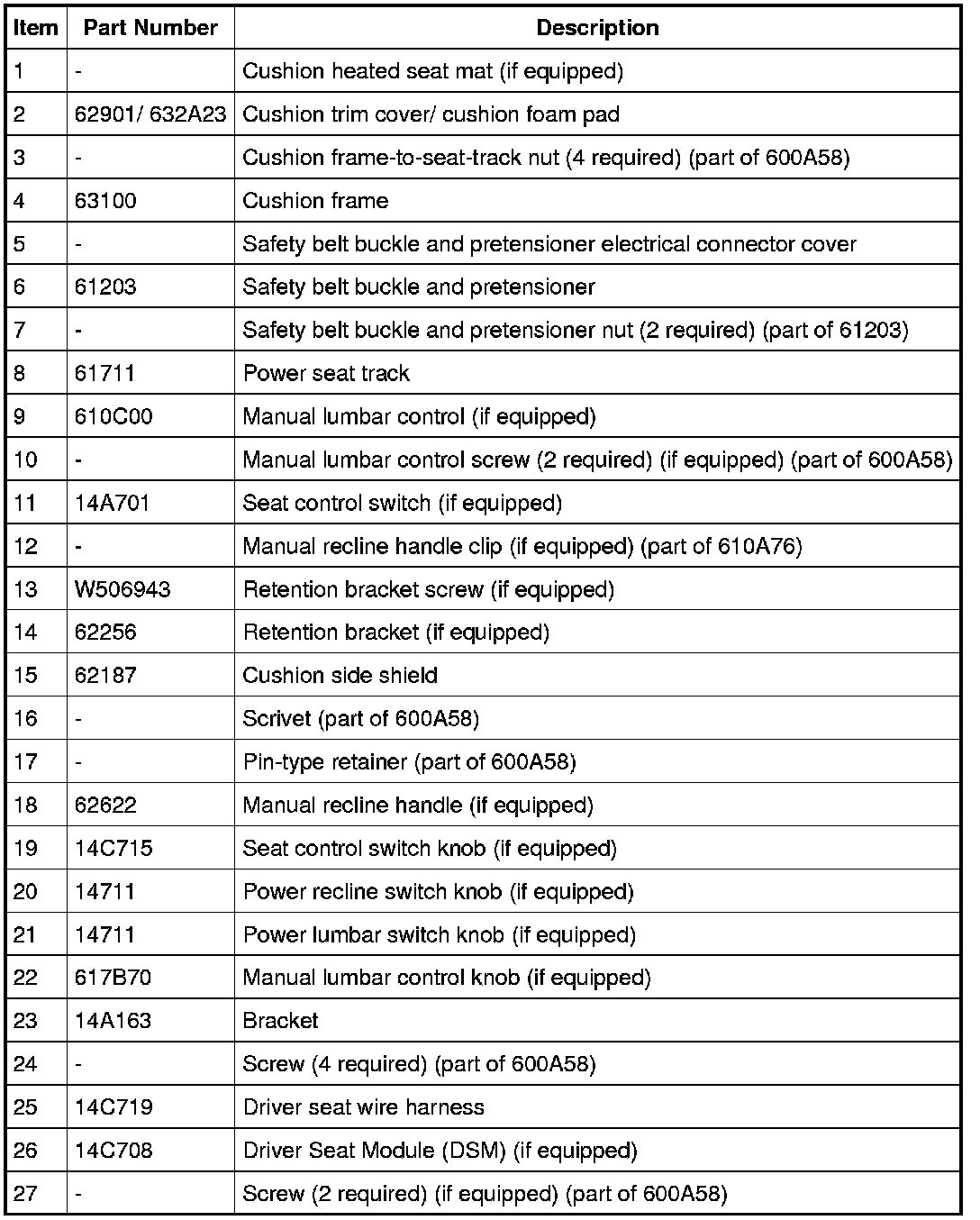

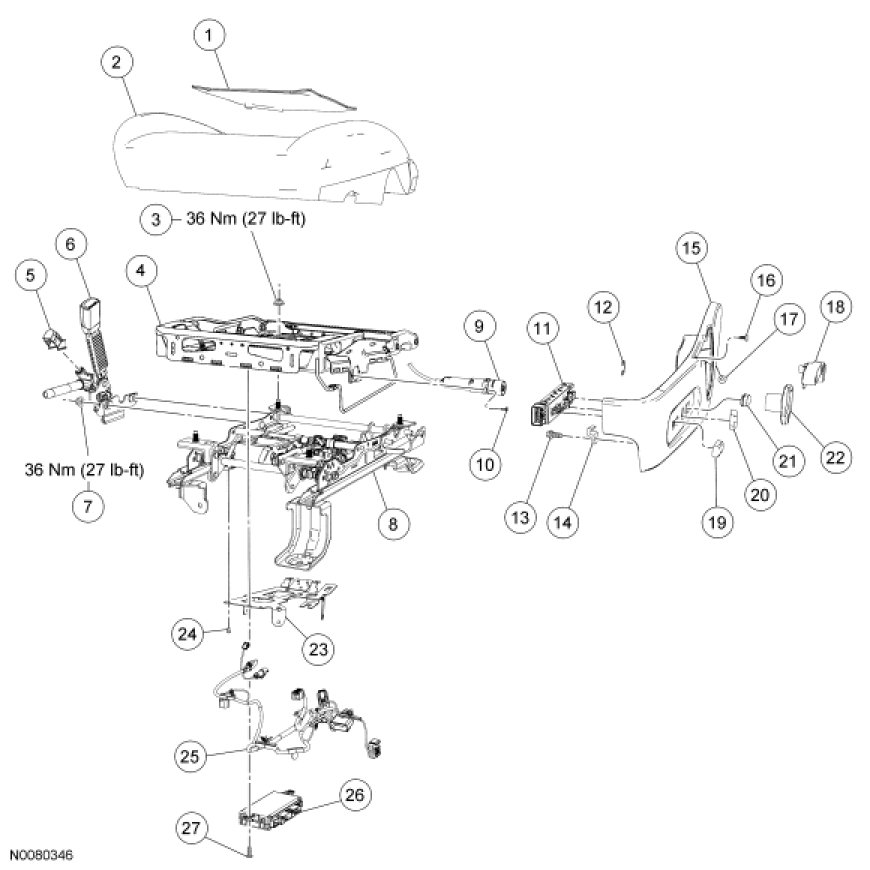

Driver Seat Cushion

NOTE: Power seat track shown, manual seat track similar.

NOTE: The retention bracket and screw can be used to repair cushion side shields that will not retain to the cushion frame wire.

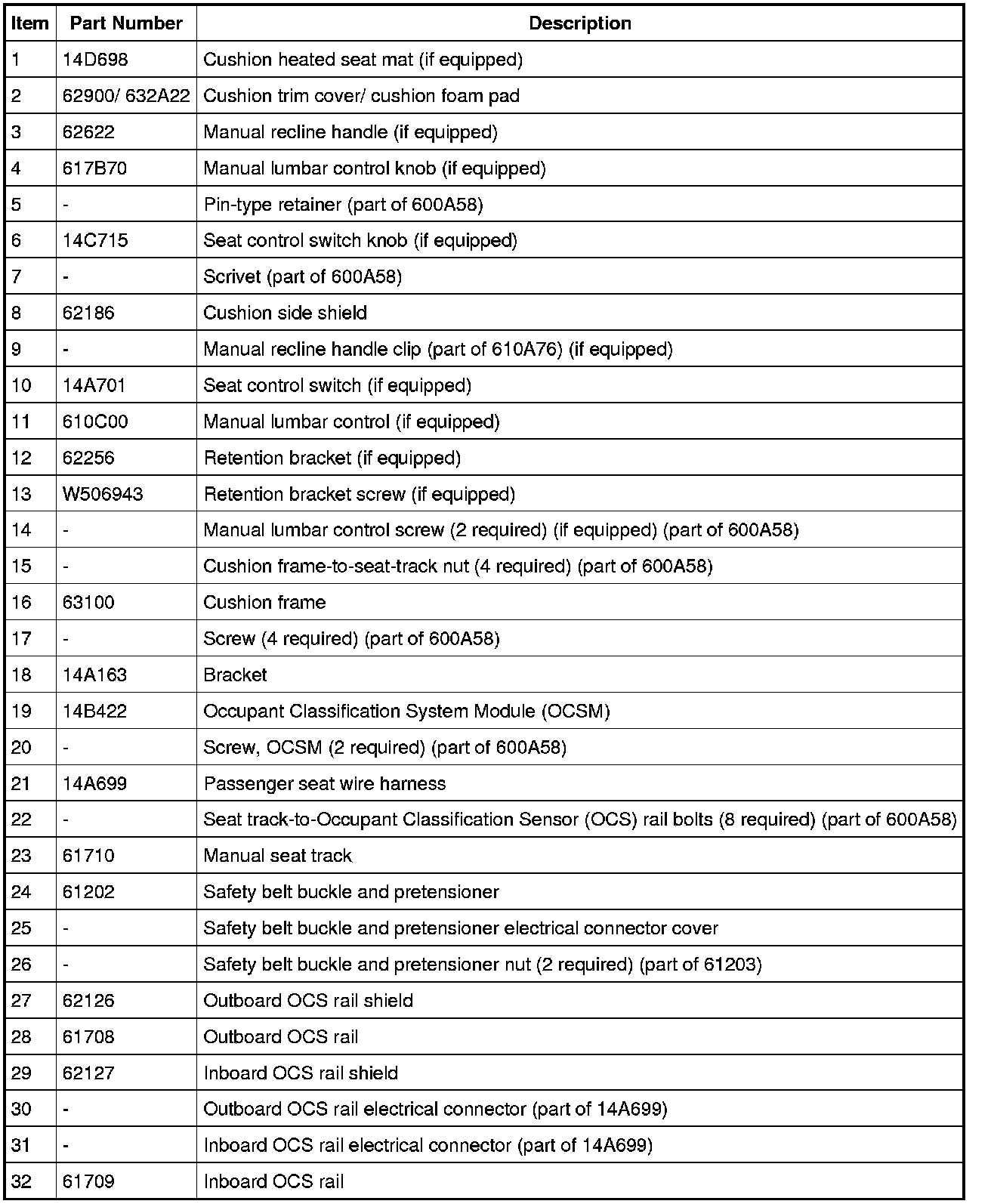

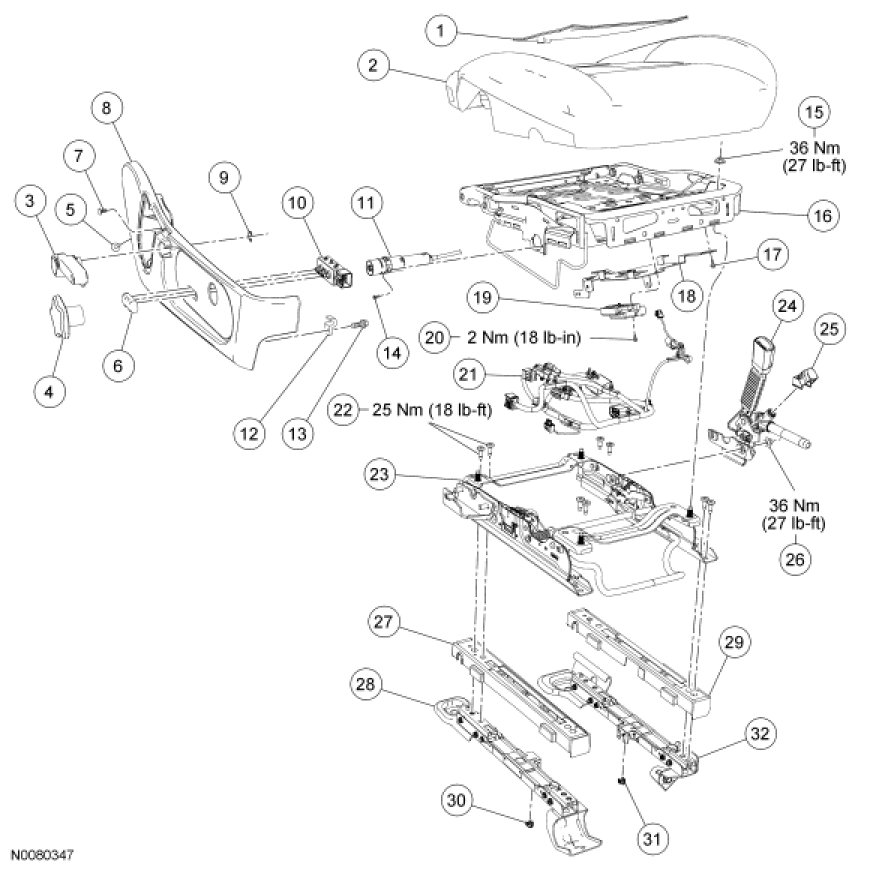

Passenger Seat Cushion

NOTE: Manual seat track shown, power seat track similar.

NOTE: The retention bracket and screw can be used to repair cushion side shields that will not retain to the cushion frame wire.










1. For additional information, refer to the procedures.
