Trailer Brake Control Module
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

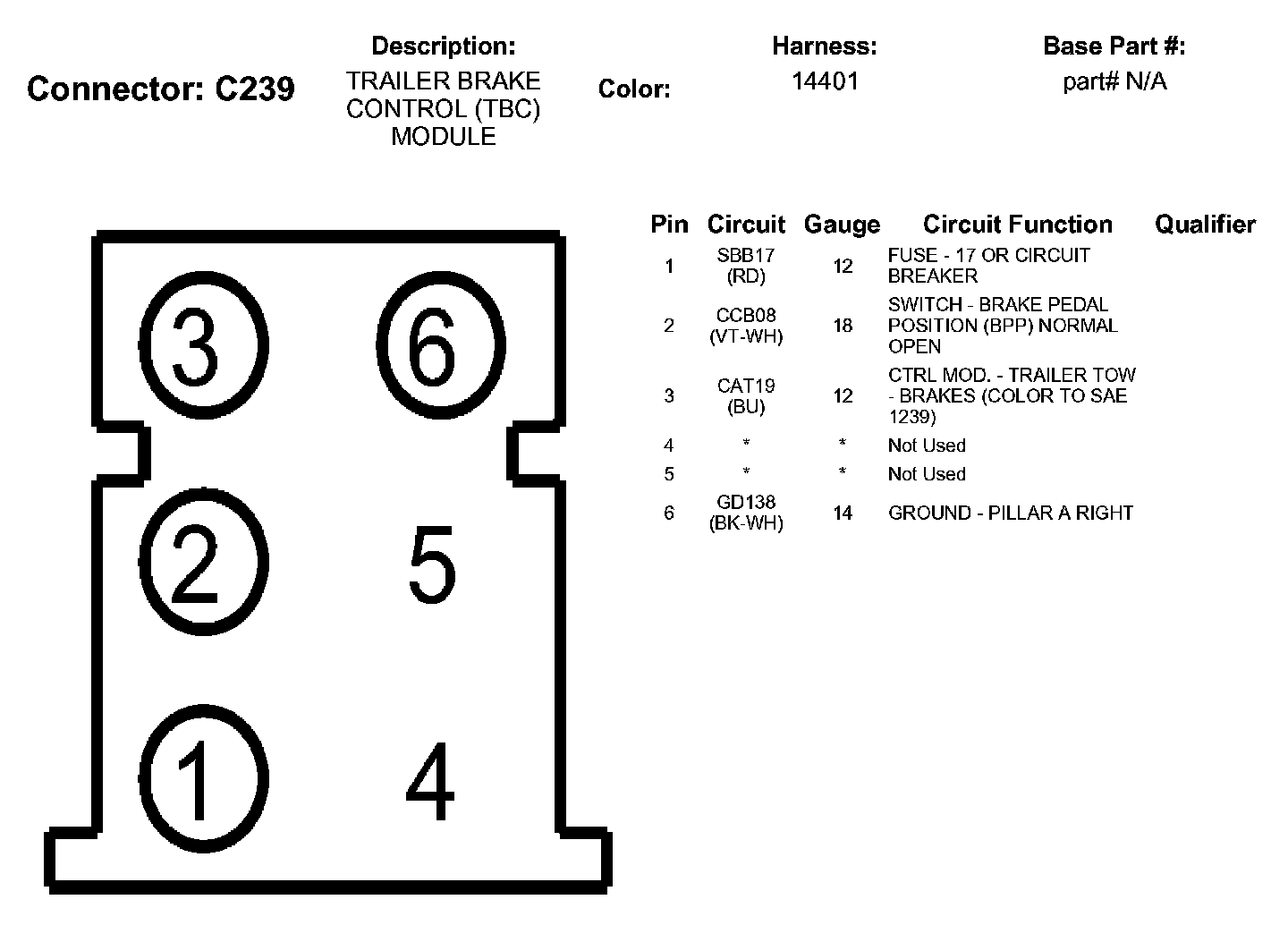

Trailer Brake Control Module
