Coolant Temperature Sensor/Switch (For Computer): Service and Repair

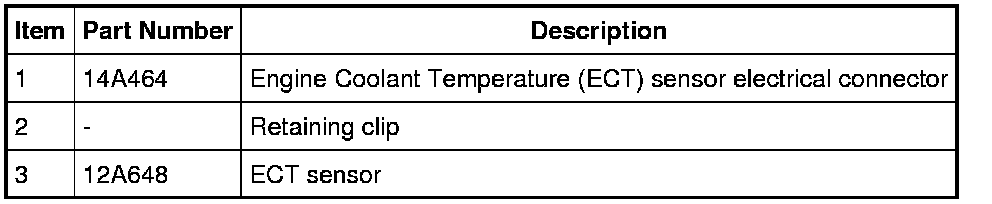

Engine Coolant Temperature (ECT) Sensor - 4.0L SOHC

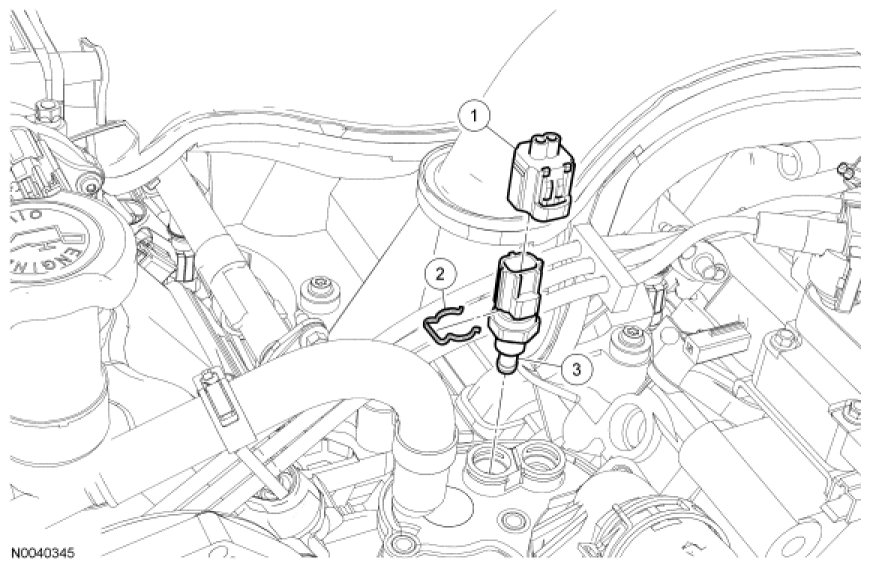

Removal and Installation

1. Drain the cooling system.

2. Disconnect the Engine Coolant Temperature (ECT) sensor electrical connector.

3. Remove the clip and the ECT sensor.

4. To install, reverse the removal procedure.
