Connecting Rod, Engine

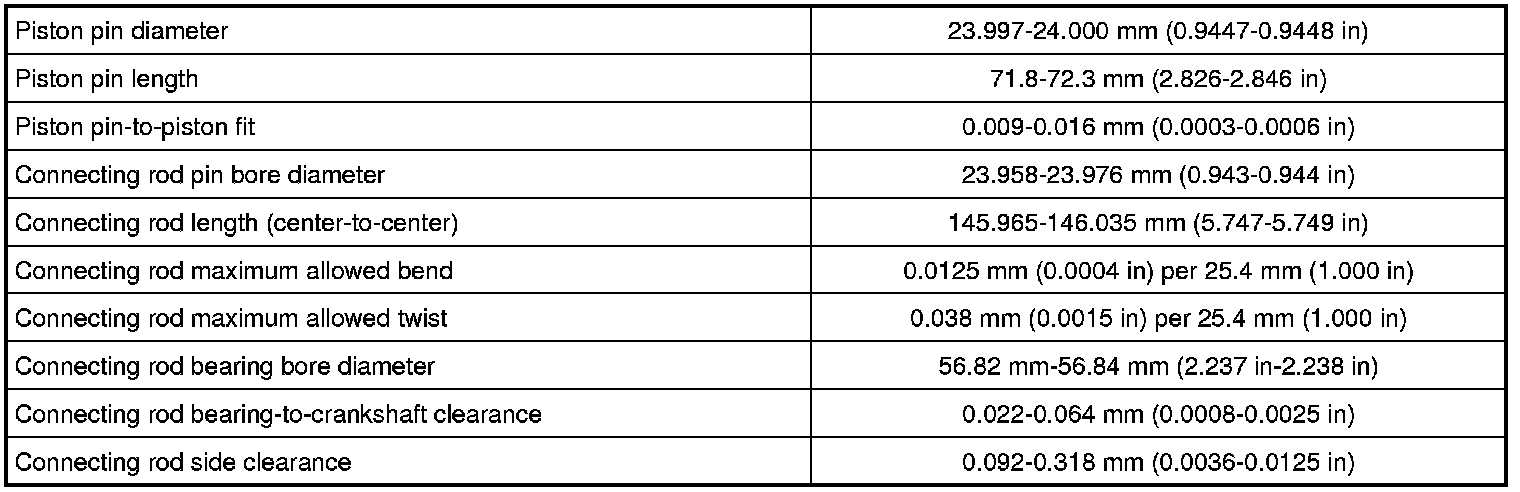

CONNECTING ROD










ROD BEARING CAP

Tighten the 2 connecting rod nuts in 2 stages.
Stage 1: Tighten to 20 Nm (177 lb-in).
Stage 2: Tighten an additional 90 degrees.
