Timing Cover

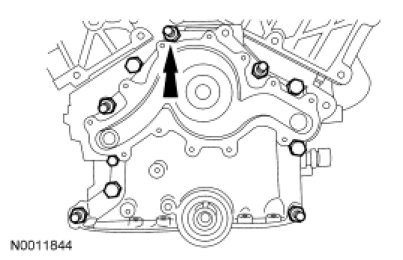

Install the Front Cover Aligner and tighten the 5 bolts and 5 stud bolts.
Tighten to
19 Nm (168 lb-in).
