Keyless Entry Key-Pad: Service and Repair

Keyless Entry Keypad

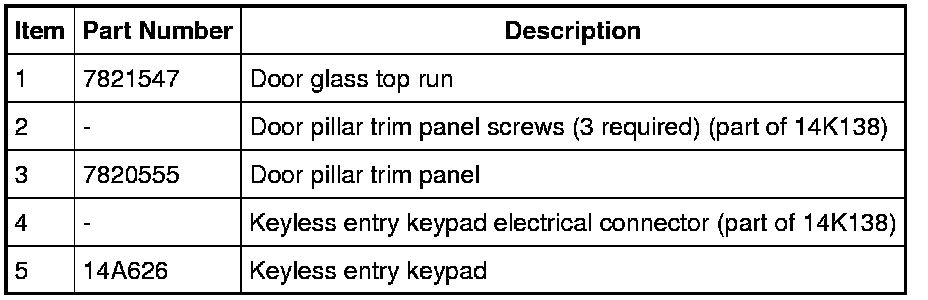

Removal and Installation

1. Position the front window glass to the full down position.

2. Position the door glass top run aside to access the door pillar trim panel screws.

3. Remove the 3 door pillar trim panel screws and the door pillar trim panel.

4. Disconnect the electrical connector and remove the keyless entry keypad from the door pillar trim panel.

5. To install, reverse the removal procedure.
