Auxiliary Climate Control Assembly




Auxiliary Climate Control Assembly

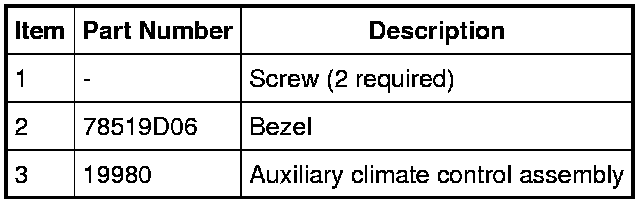

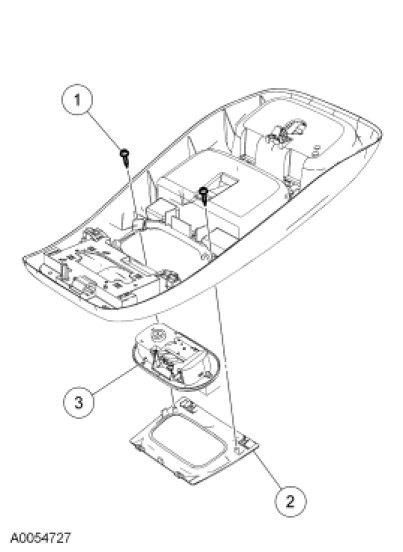

Removal and Installation

1. Remove the overhead console. Console - Overhead

2. Remove the 2 screws.

3. Remove the bezel.

4. Remove the auxiliary climate control assembly.

5. To install, reverse the removal procedure.
