Climate Control Assembly

Climate Control Assembly

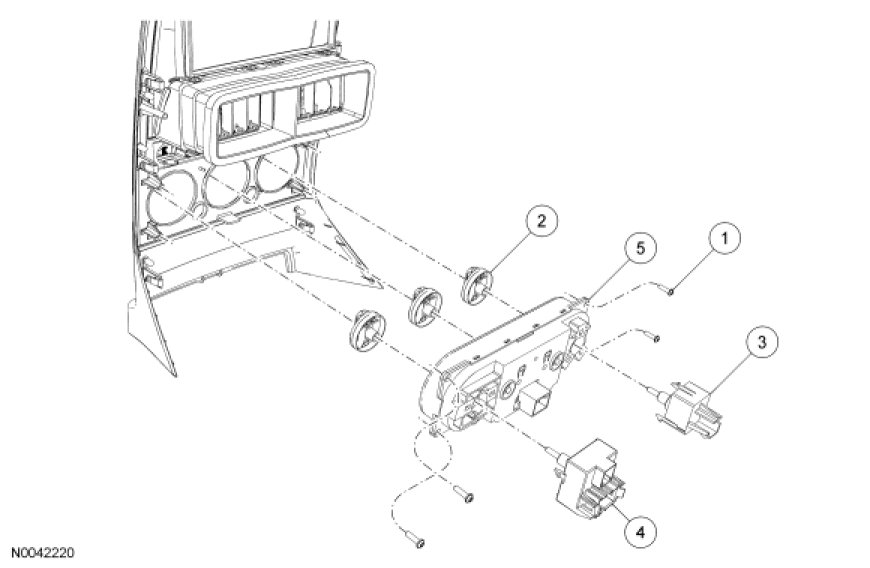

Removal and Installation

1. Remove the center instrument panel finish panel. Service and Repair

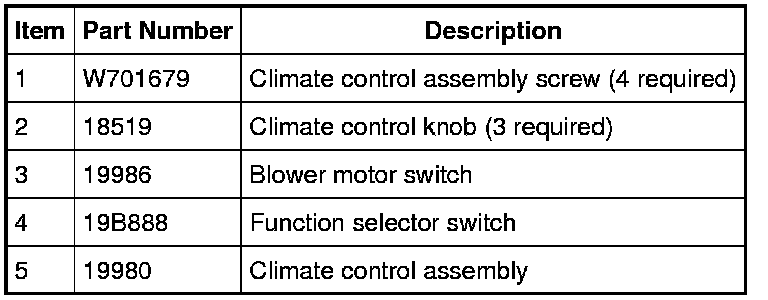

2. Remove the 4 climate control assembly screws.

3. Remove the climate control assembly.

4. Remove the 3 climate control knobs.

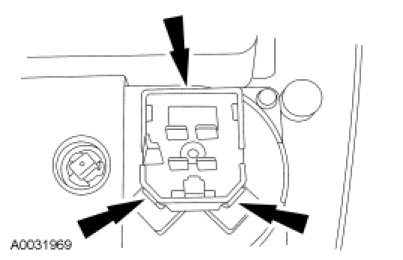

5. Depress the tabs and remove the blower motor switch.





6. Depress the tabs and remove the function selector switch.





7. To install, reverse the removal procedure.
