Engine Temperature Sensor: Service and Repair

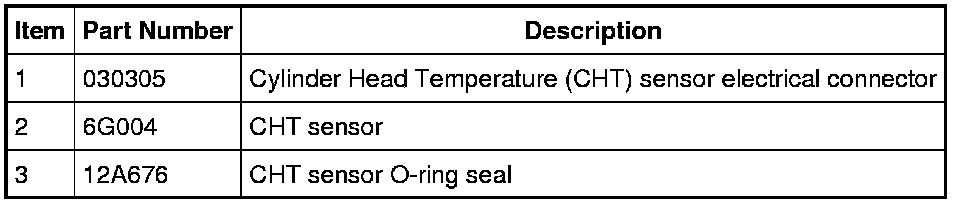

Cylinder Head Temperature (CHT) Sensor - 4.6L (3V)

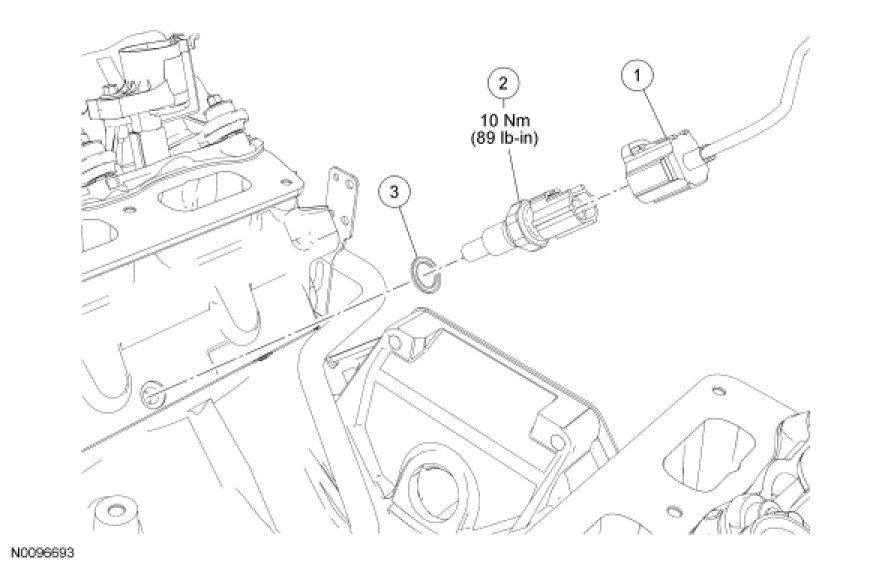

Removal and Installation

1. Remove the intake manifold.

2. Disconnect the Cylinder Head Temperature (CHT) sensor electrical connector.

3. Remove and discard the CHT sensor.
- To install, tighten to 10 Nm (89 lb-in).

4. To install, reverse the removal procedure.
- Do not reuse the CHT sensor. Install a new sensor.
