Module Configuration
Module Configuration

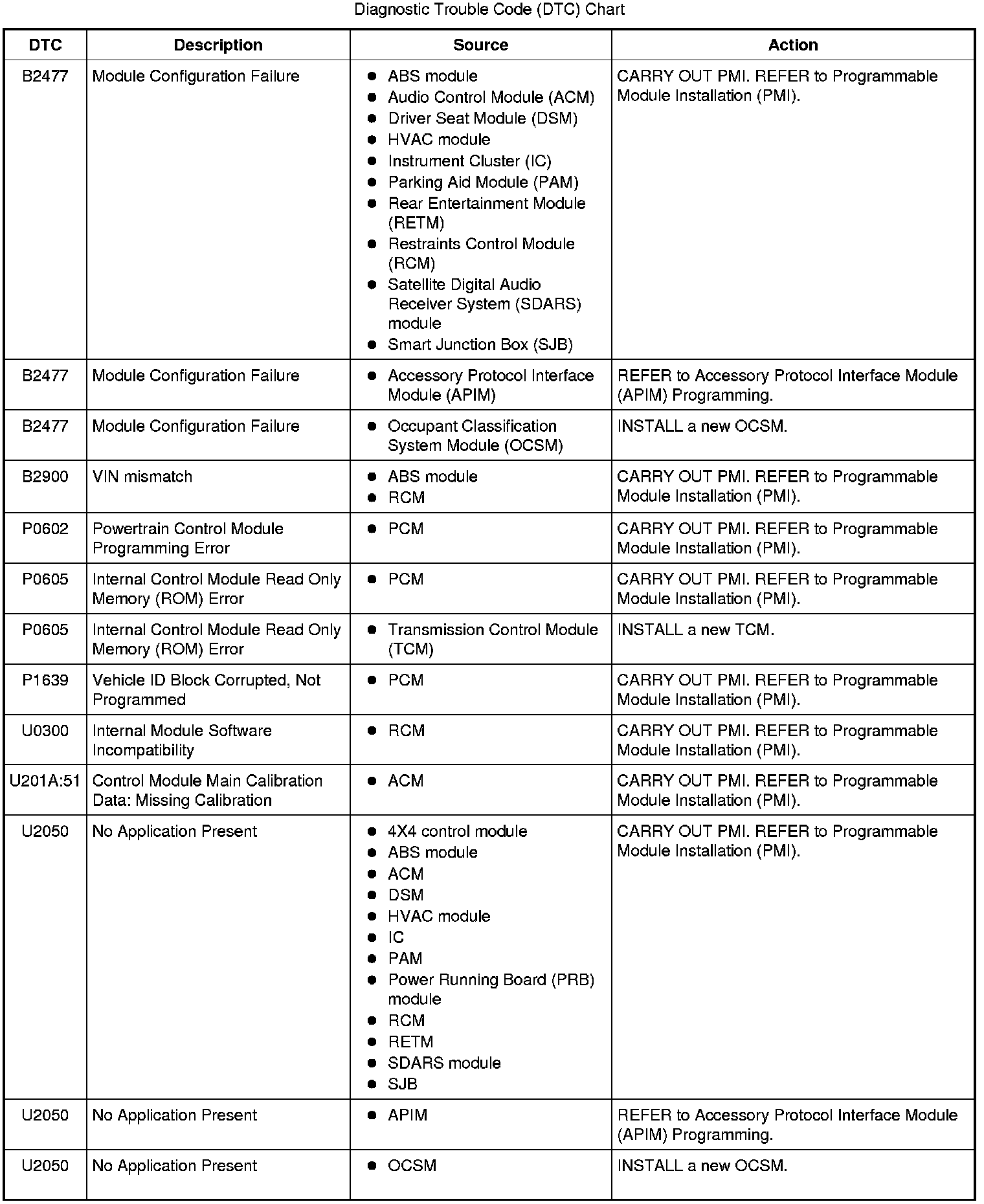

B2477-B2900 / P0602-P1639 / U201A:51-U2050:

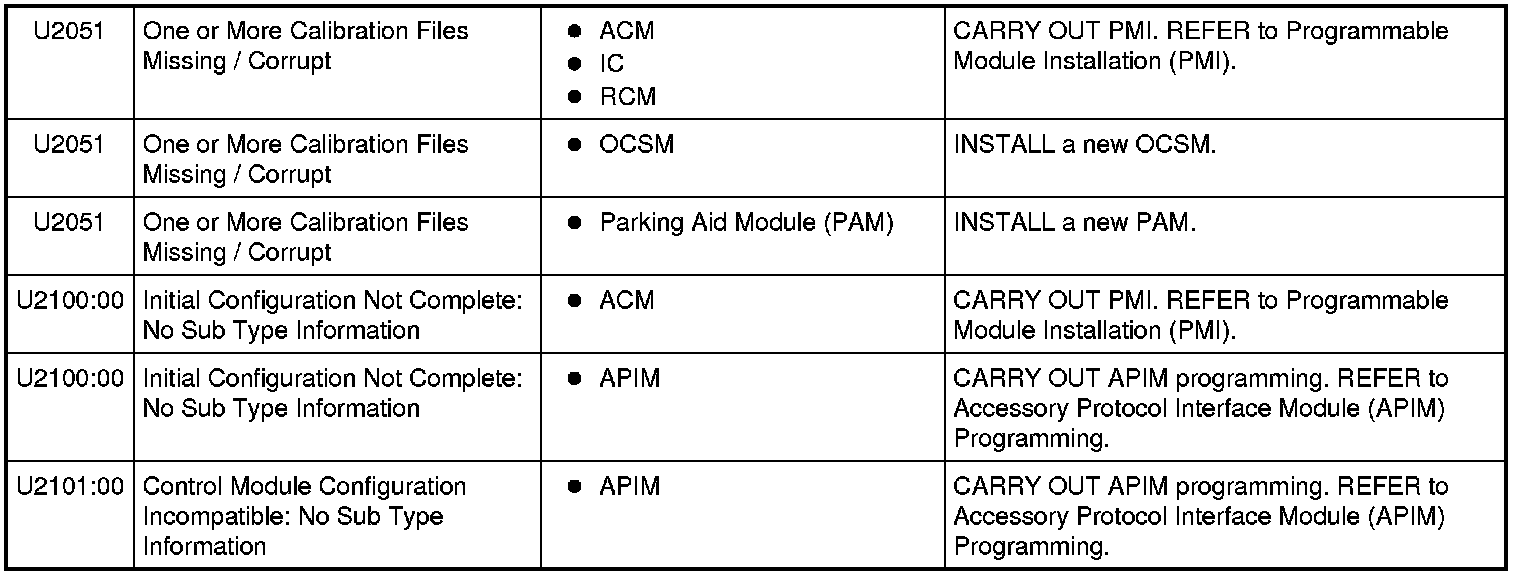

U2051-U2101:00:
