Typical Diagnostic Reference Values

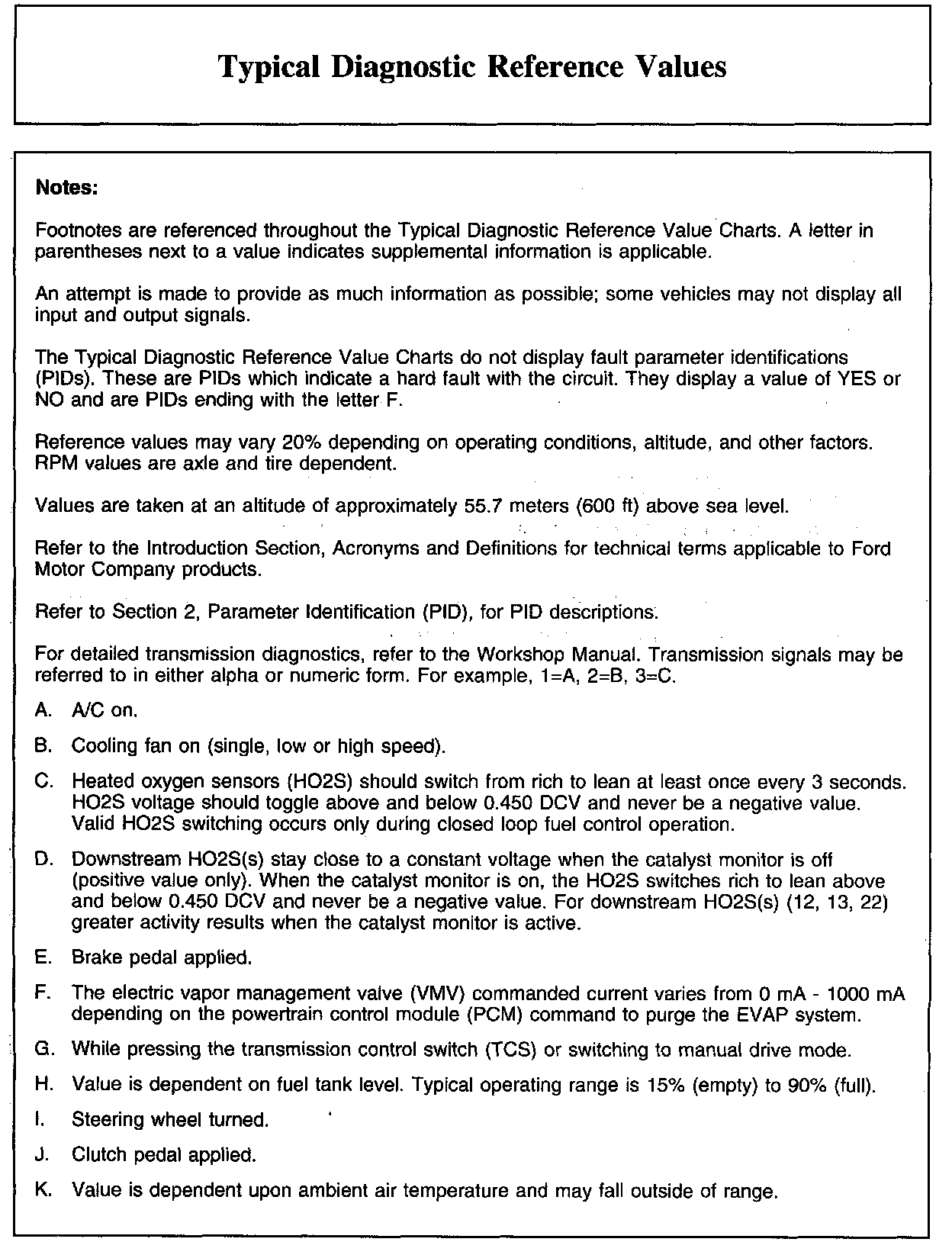

Typical Diagnostic Reference Values Notes (Part 1):

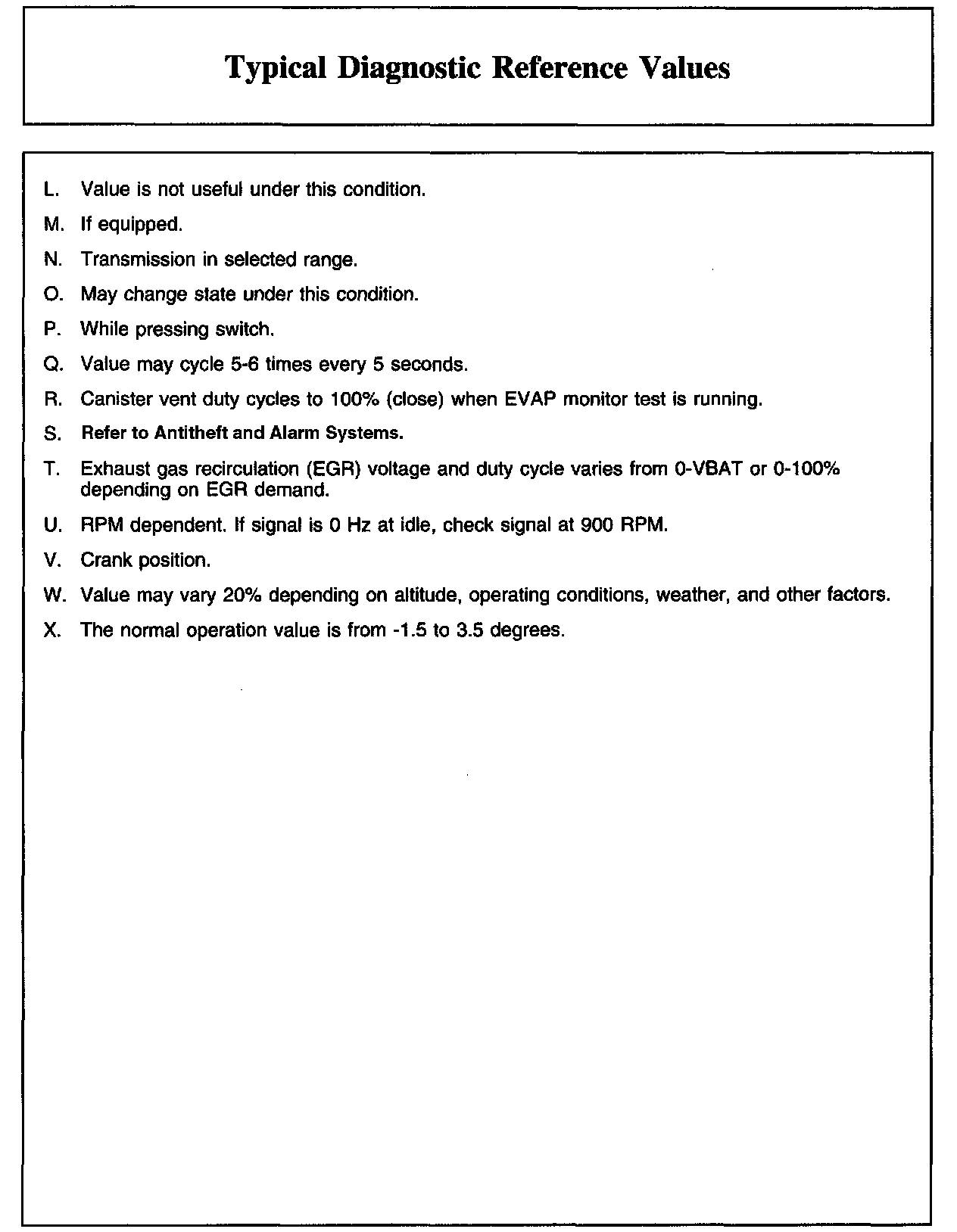

Typical Diagnostic Reference Values Notes (Part 2):

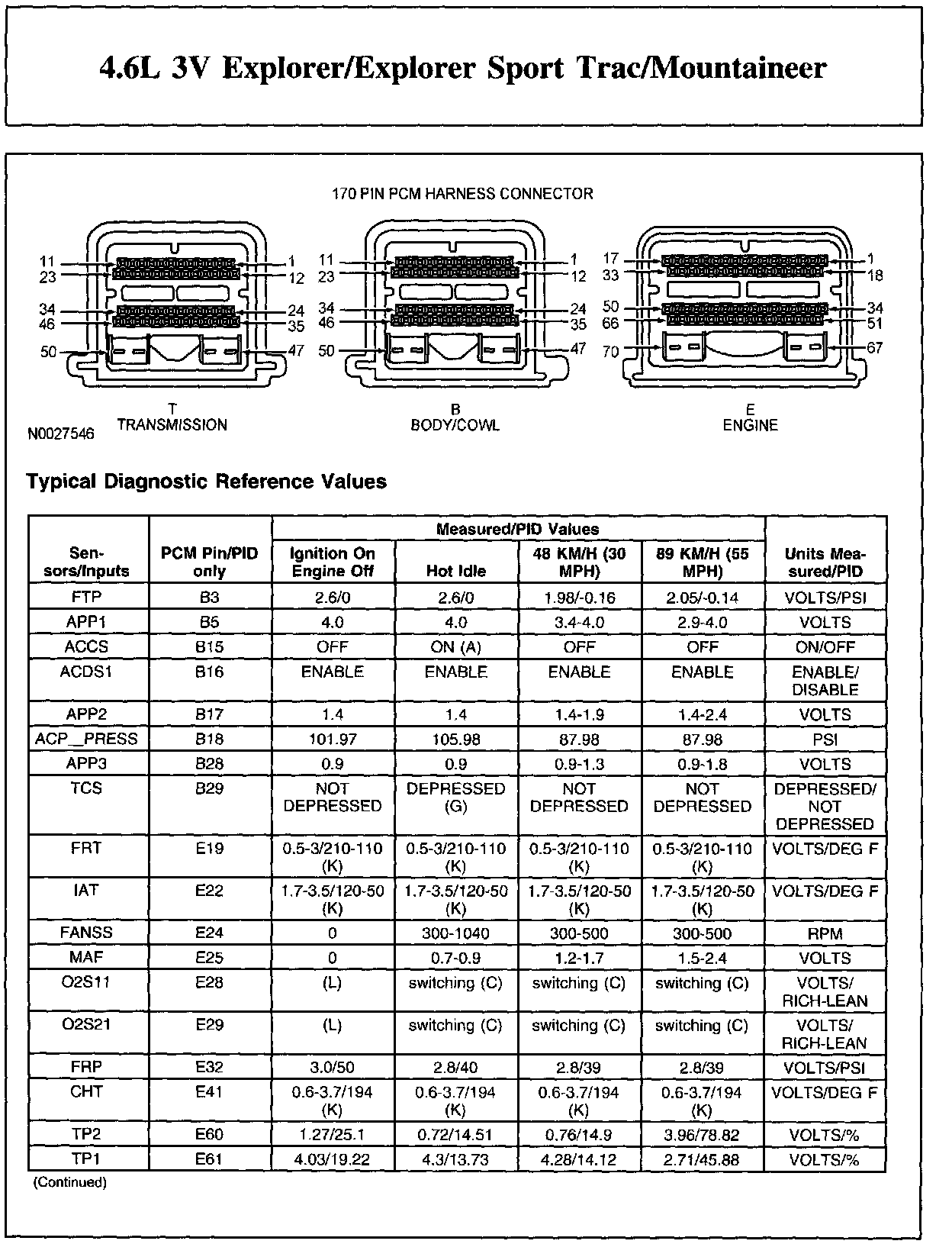

4.6L 3V Explorer/Explorer Sport Trac/Mountaineer (Part 1):

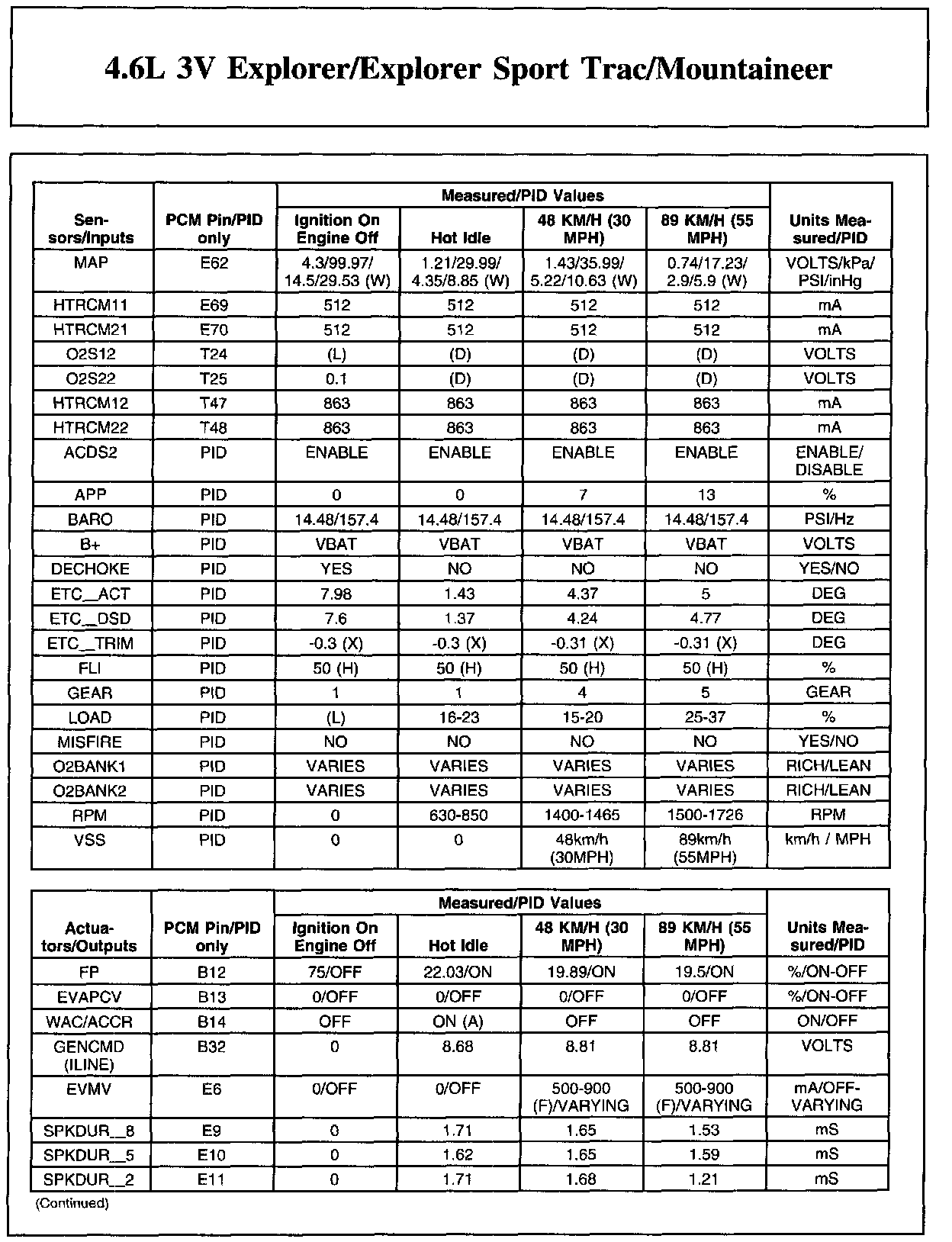

4.6L 3V Explorer/Explorer Sport Trac/Mountaineer (Part 2):

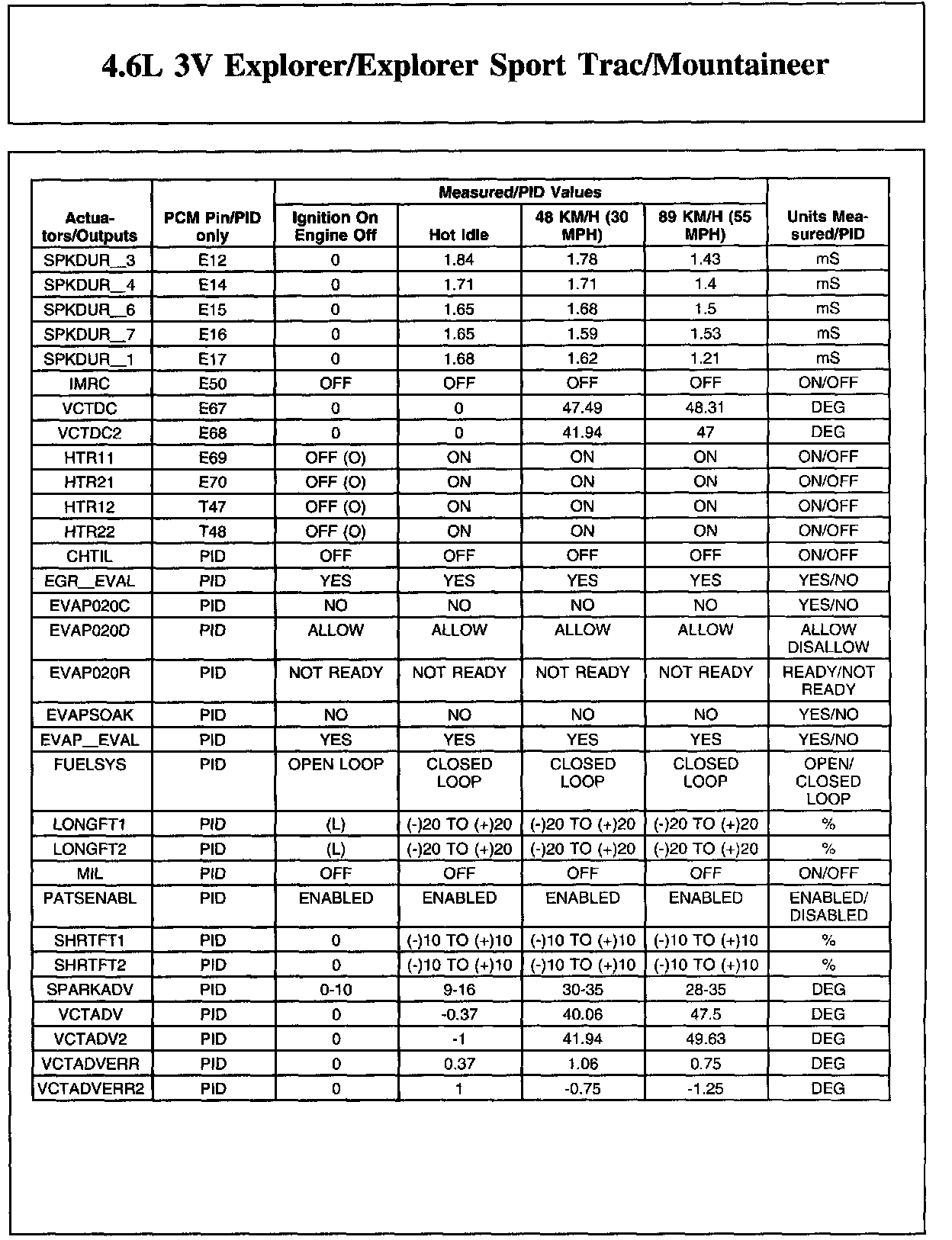

4.6L 3V Explorer/Explorer Sport Trac/Mountaineer (Part 3):

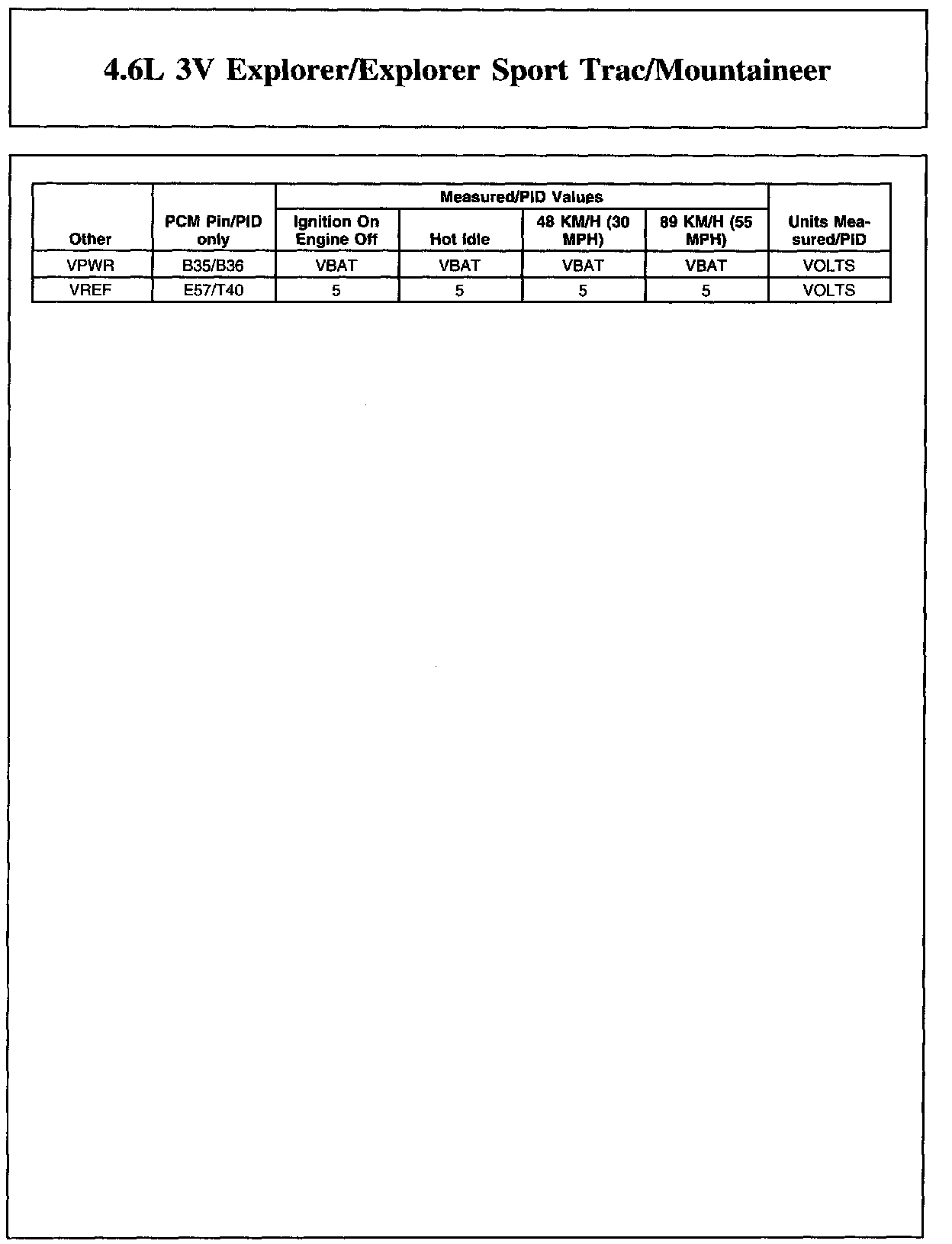

4.6L 3V Explorer/Explorer Sport Trac/Mountaineer (Part 4):
