Control Module: Service and Repair

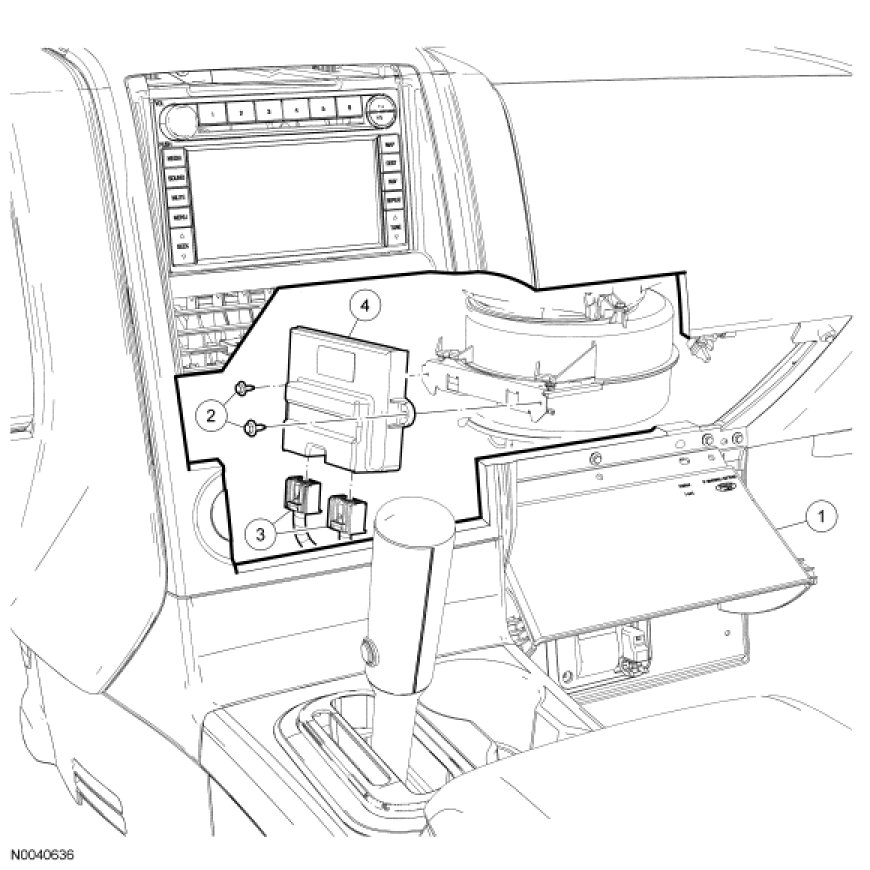

4X4 Control Module









1. Disconnect the battery ground cable.

2. Open the glove compartment, press in on sides and lower it to gain access.

3. Remove the 2 screws.

4. Disconnect the electrical connectors.

5. Remove the 4X4 control module.

6. To install, reverse the removal procedure.
