LH Side

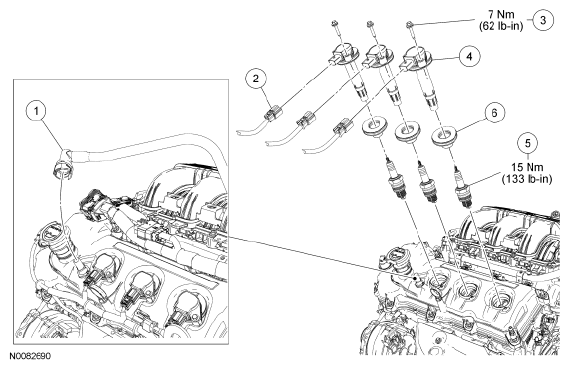

Fig 1: Exploded View Of Engine Ignition Components - LH With Torque Specifications

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	6758	Crankcase vent tube-to-valve cover fitting quick connect coupling
2	-	Ignition coil-on-plug electrical connector (3 required) (part of 12A581)
3	W714507	Ignition coil-on-plug bolt (3 required)
4	12A375	Ignition coil-on-plug (3 required)
5	12405	Spark plug (3 required)
6	12A384	Coil seal (3 required)
