Speed Control Deactivator Switch

Speed Control Deactivator Switch









Removal and Installation

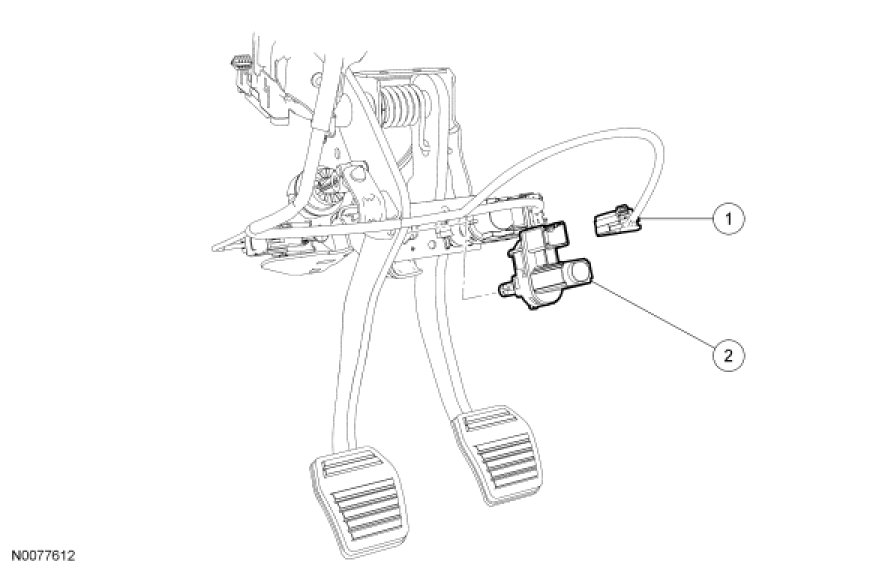

1. Disconnect the electrical connector and remove the speed control deactivator switch.

2. Rotate the speed control deactivator switch counterclockwise one-quarter turn.

3. Remove the speed control deactivator switch.

4. To install, reverse the removal procedure.
