Arm/Disarm Switch, Antitheft
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

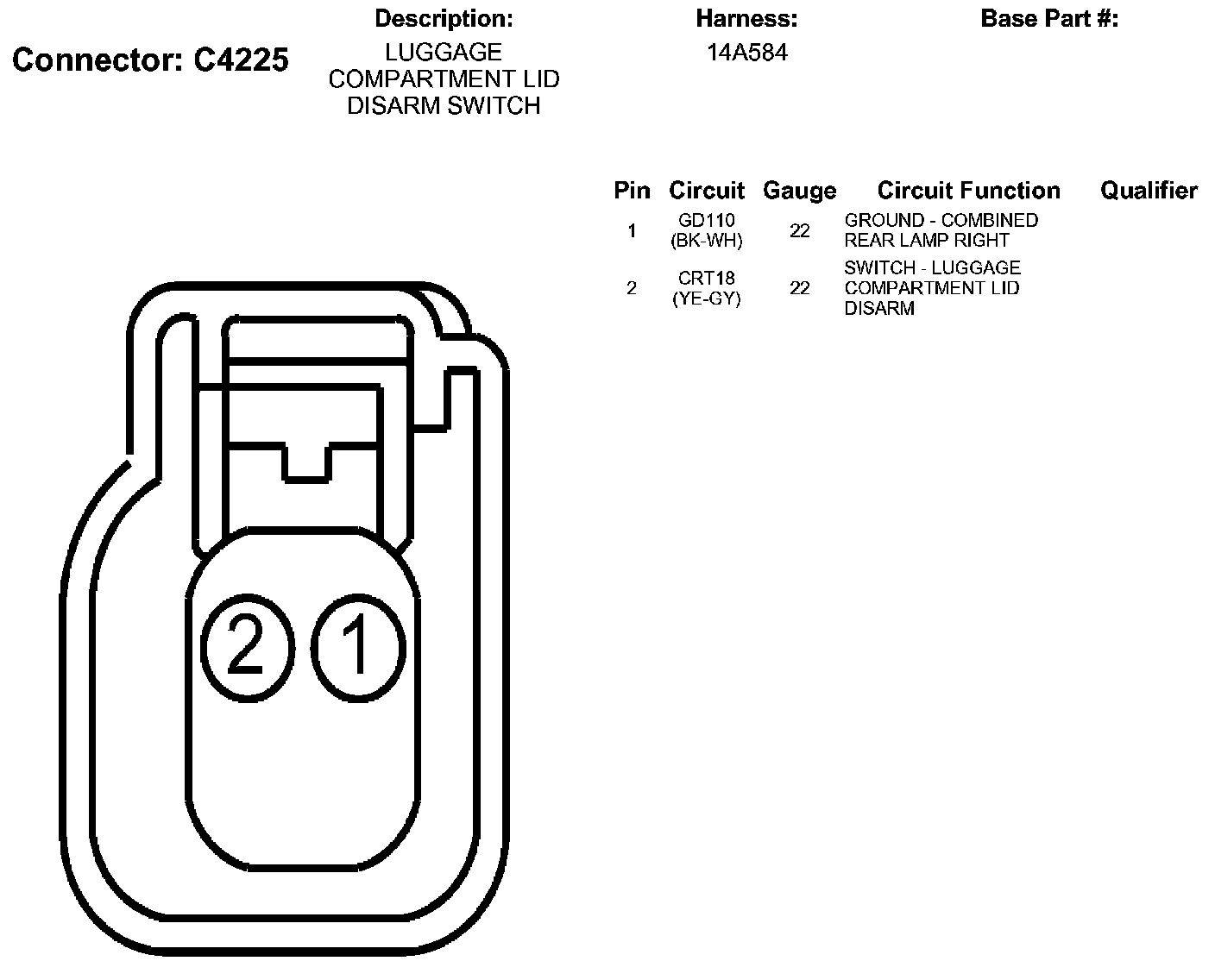

Arm/Disarm Switch, Antitheft
