Typical Diagnostic Reference Values

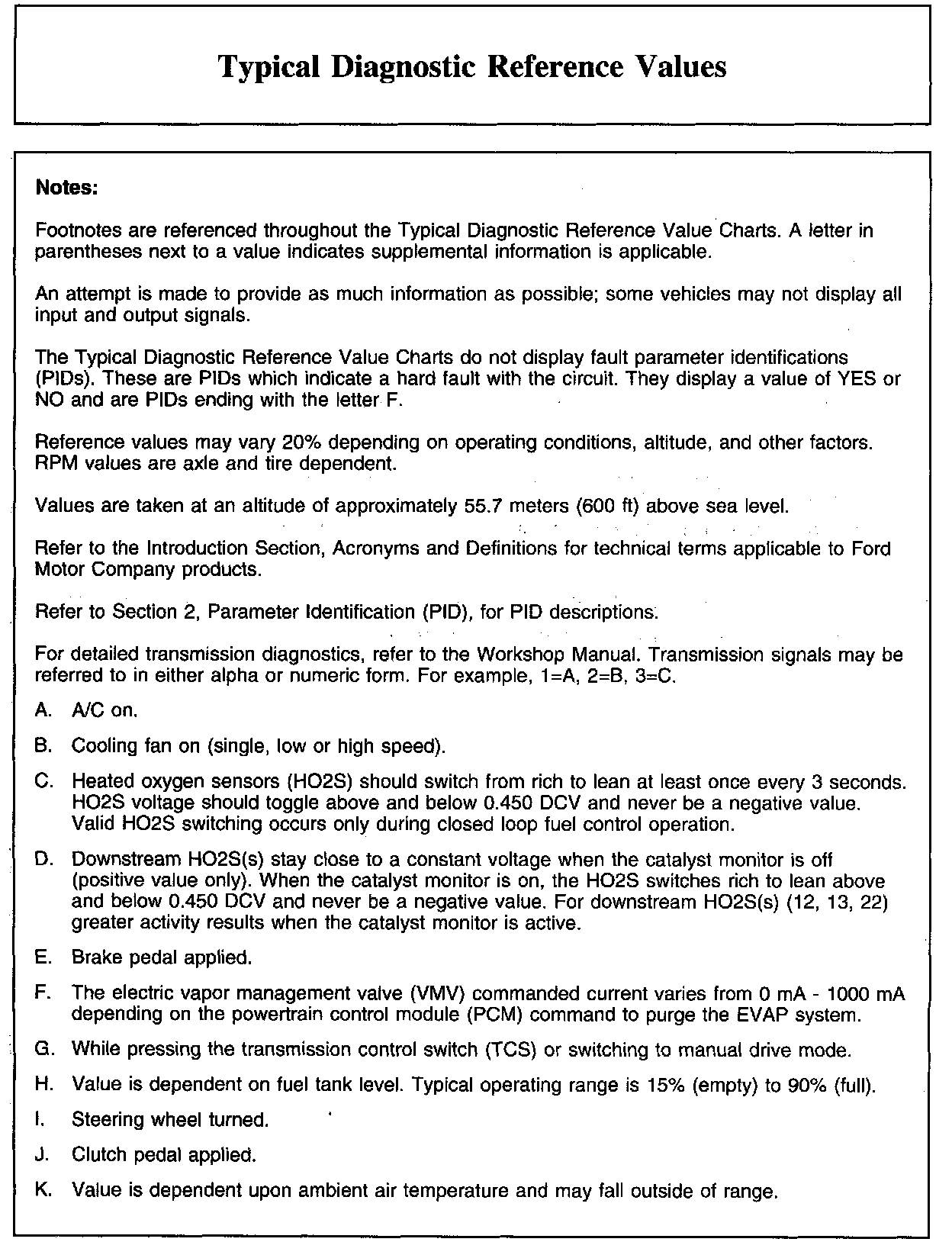

Typical Diagnostic Reference Values Notes (Part 1):

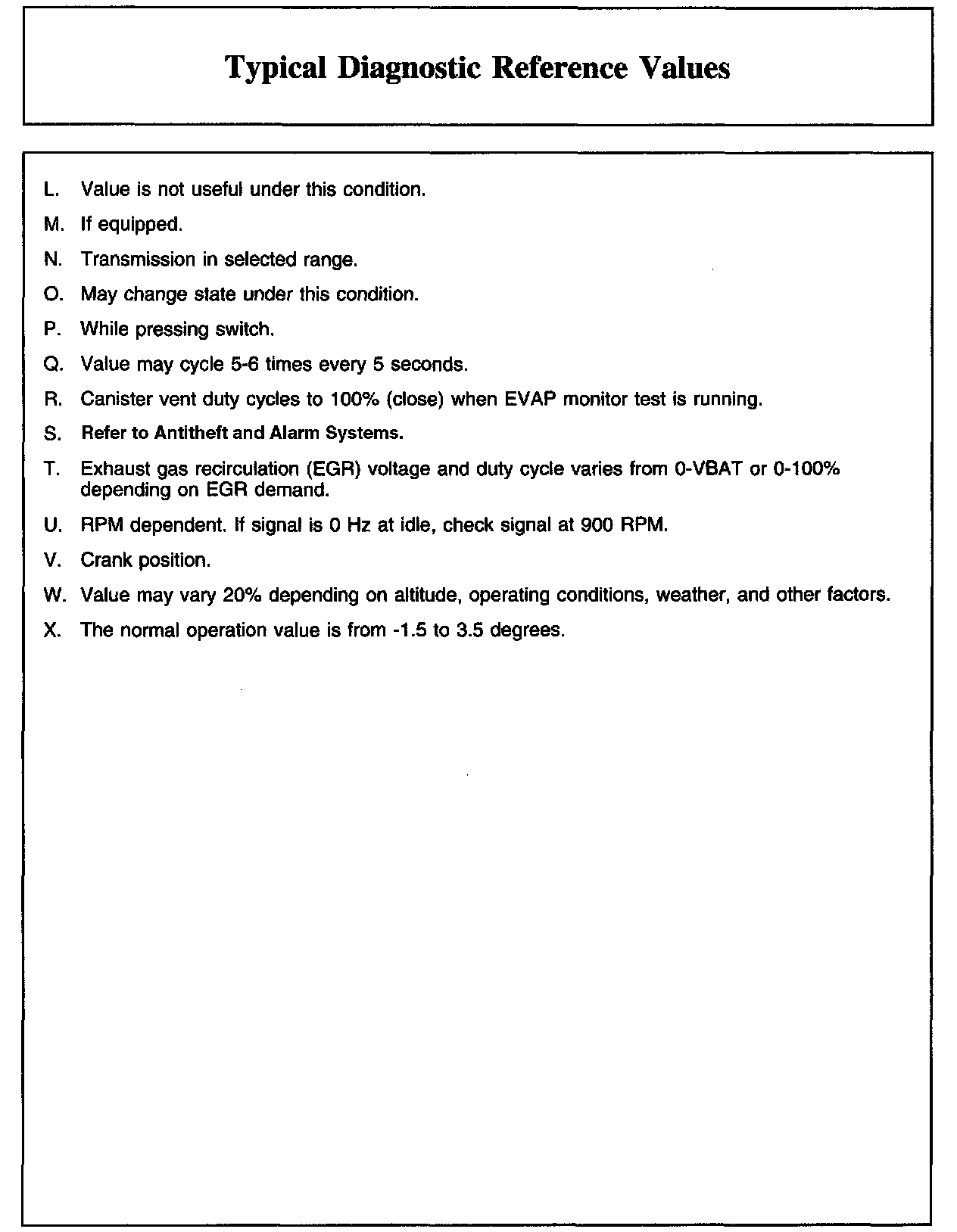

Typical Diagnostic Reference Values Notes (Part 2):

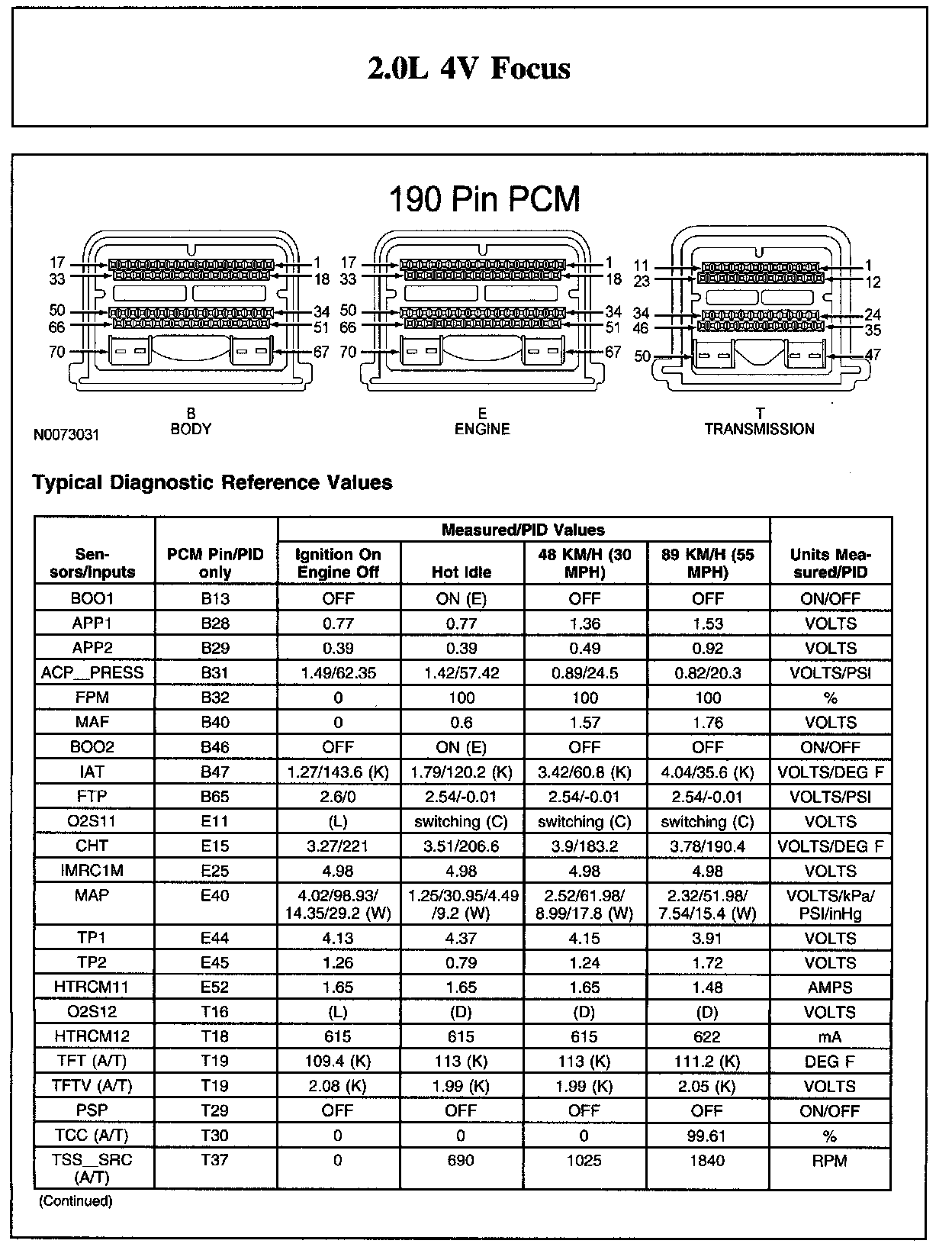

2.0L 4V Focus (Part 1):

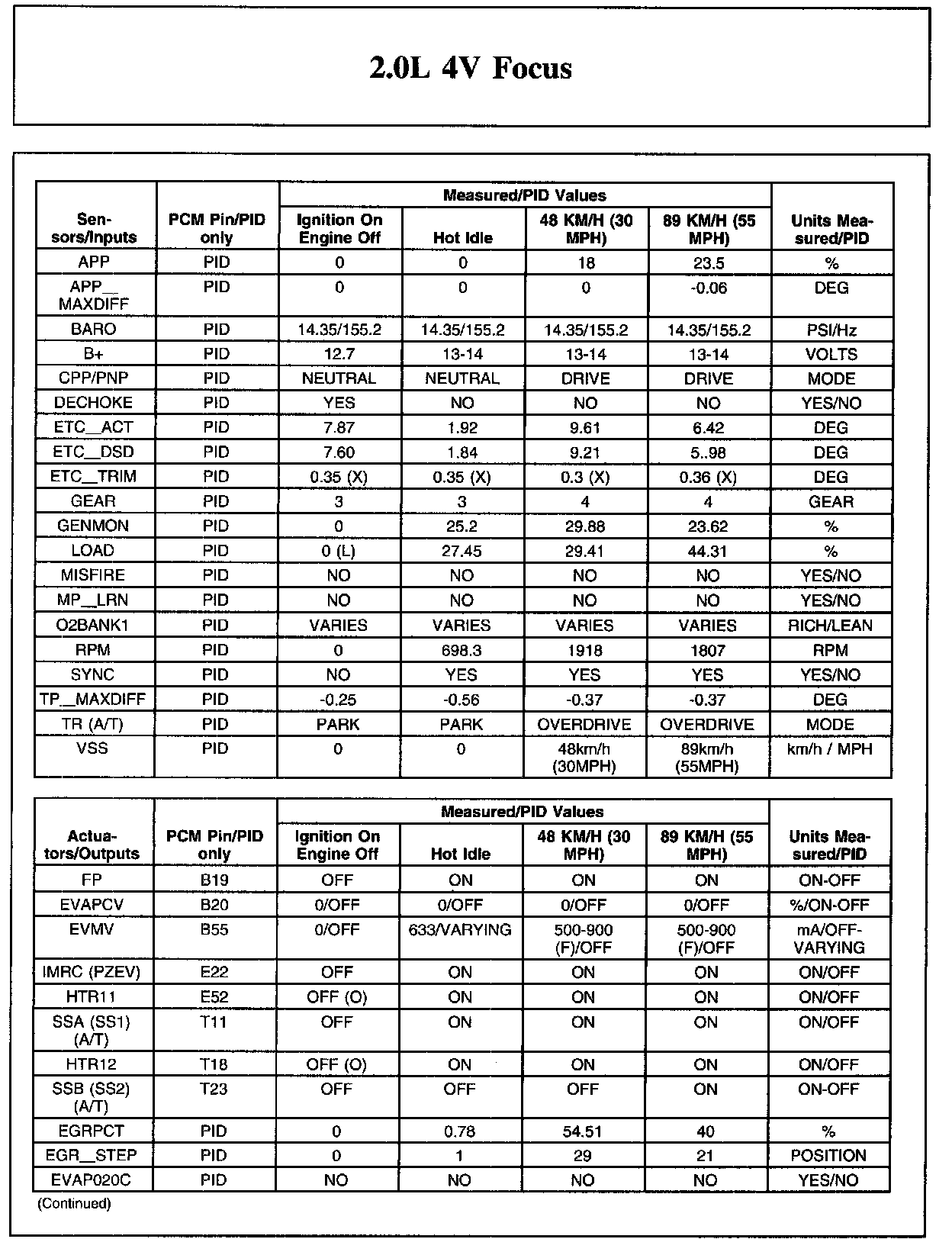

2.0L 4V Focus (Part 2):

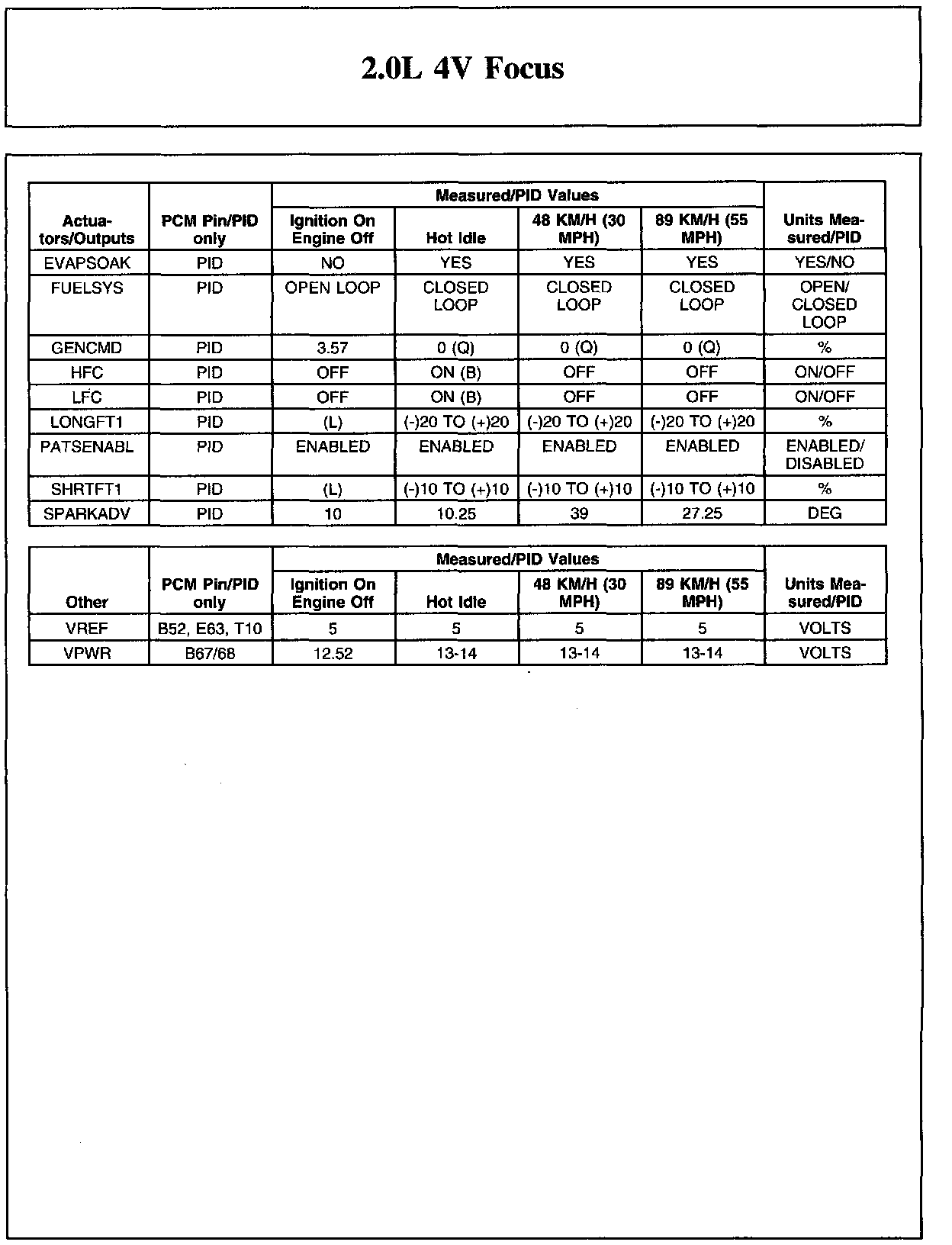

2.0L 4V Focus (Part 3):
