Intake Manifold
UPPER/LOWER INTAKE MANIFOLDInstall the lower intake manifold bolt.
Tighten to 18 Nm (159 lb-in).

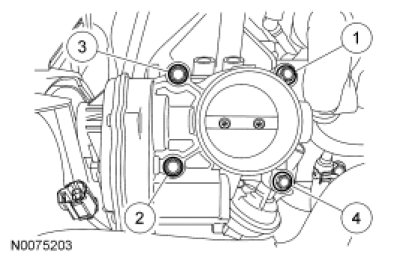

THROTTLE BODY
Tighten to 10 Nm (89 lb-in) in the sequence shown.
Install the lower intake manifold bolt.
Tighten to 18 Nm (159 lb-in).
THROTTLE BODY
Tighten to 10 Nm (89 lb-in) in the sequence shown.
