Control Module: Service and Repair

4X4 Control Module

Removal and Installation

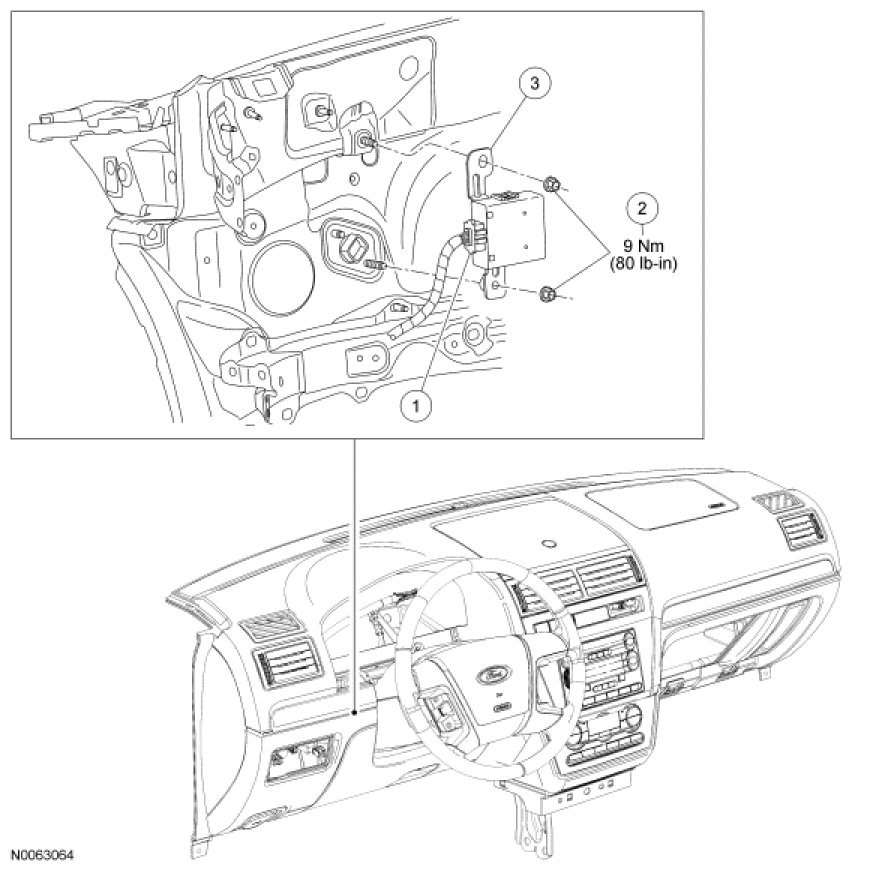

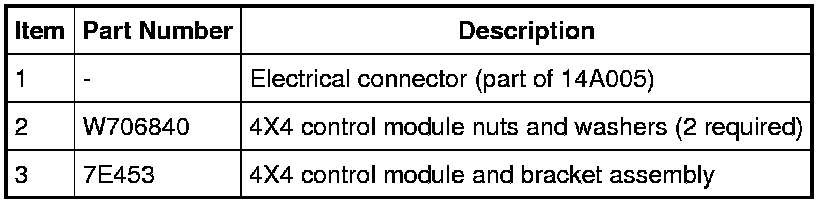

1. From below the LH side instrument panel, disconnect the 4X4 control module harness connector.

2. Remove the two 4X4 control module nuts.
- To install, tighten to 9 Nm (80 lb-in).

3. Remove the 4X4 control module and bracket.

4. To install, reverse the removal procedure.
