Main Relay (Computer/Fuel System): Locations



Battery Junction Box (BJB)

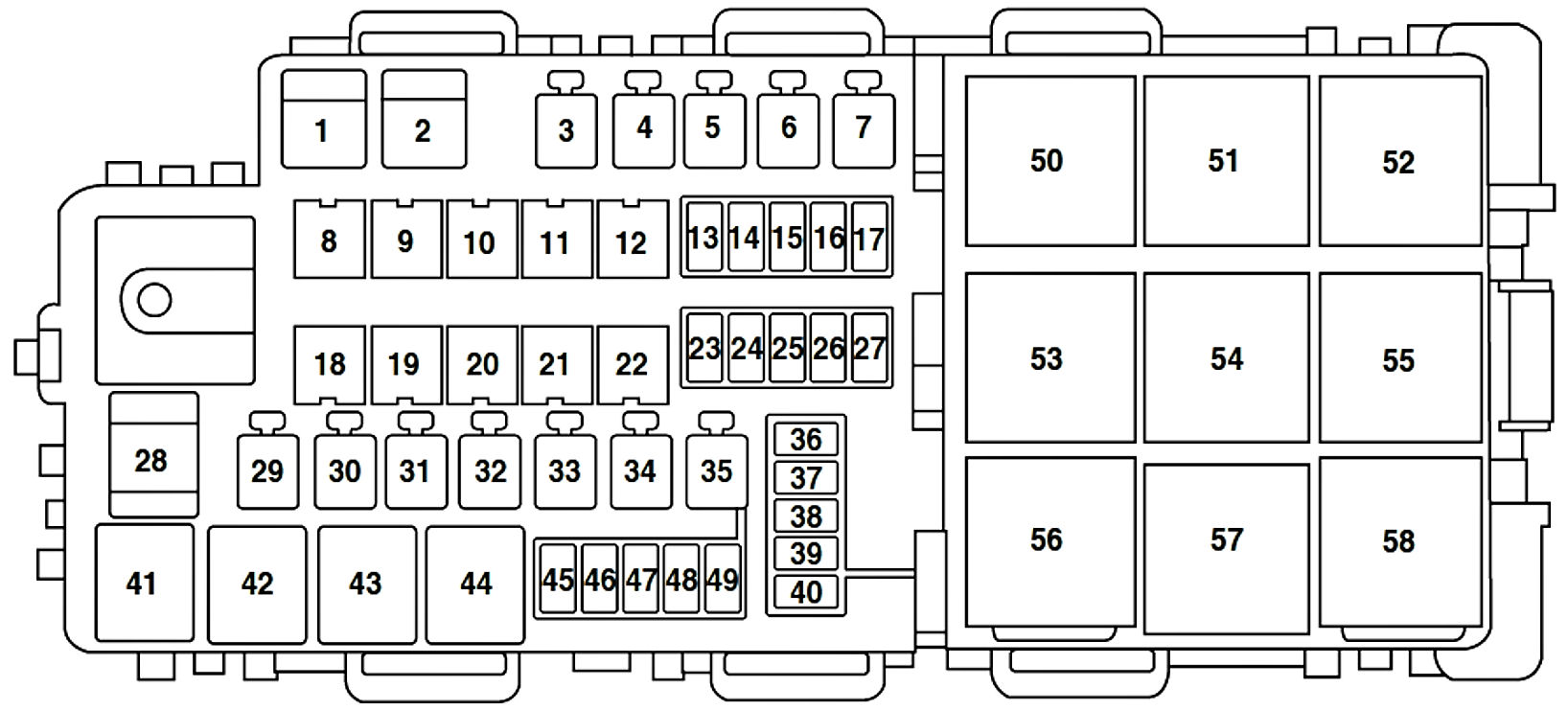

Battery Junction Box (BJB) / Power Distribution Box:

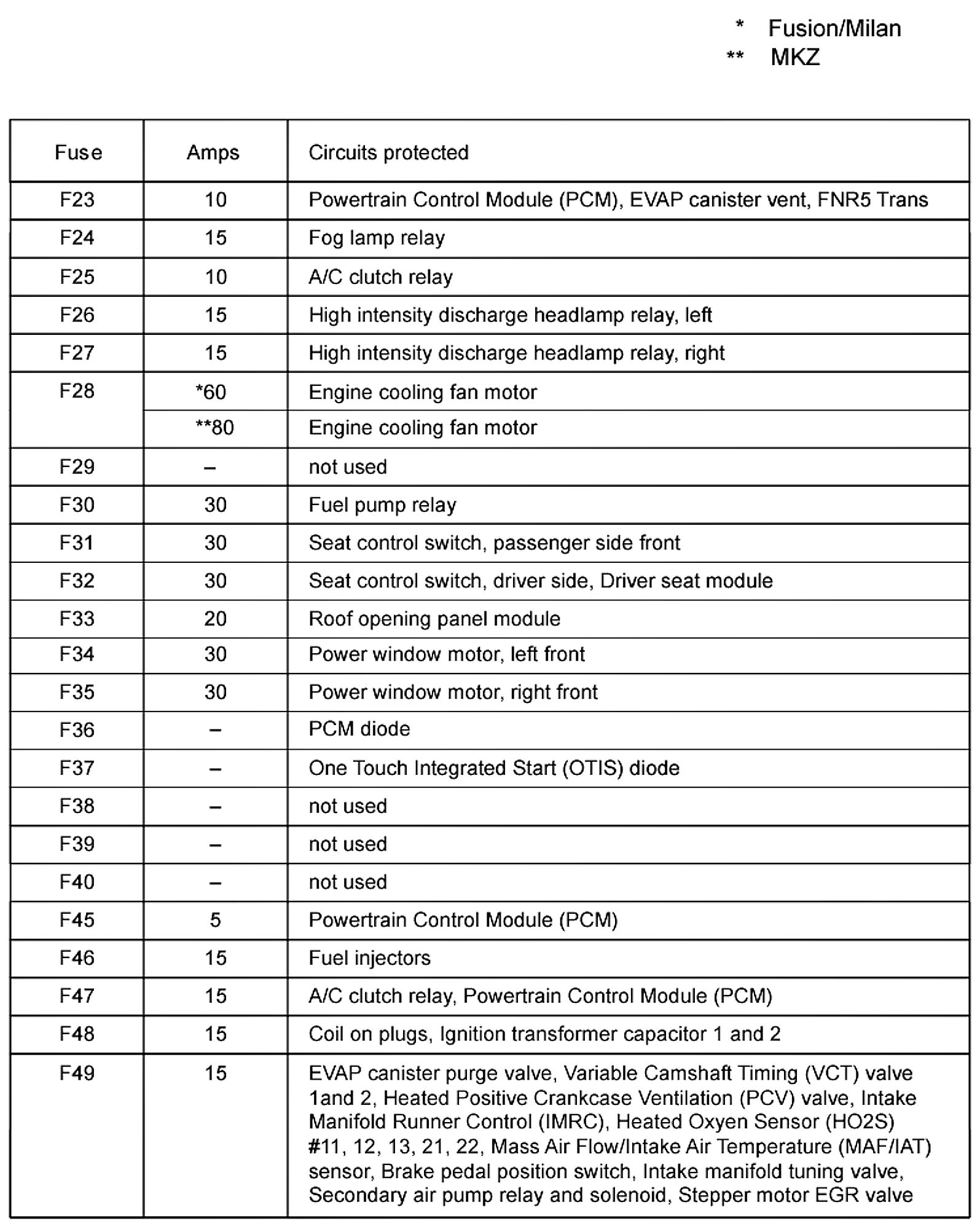

Fuse:

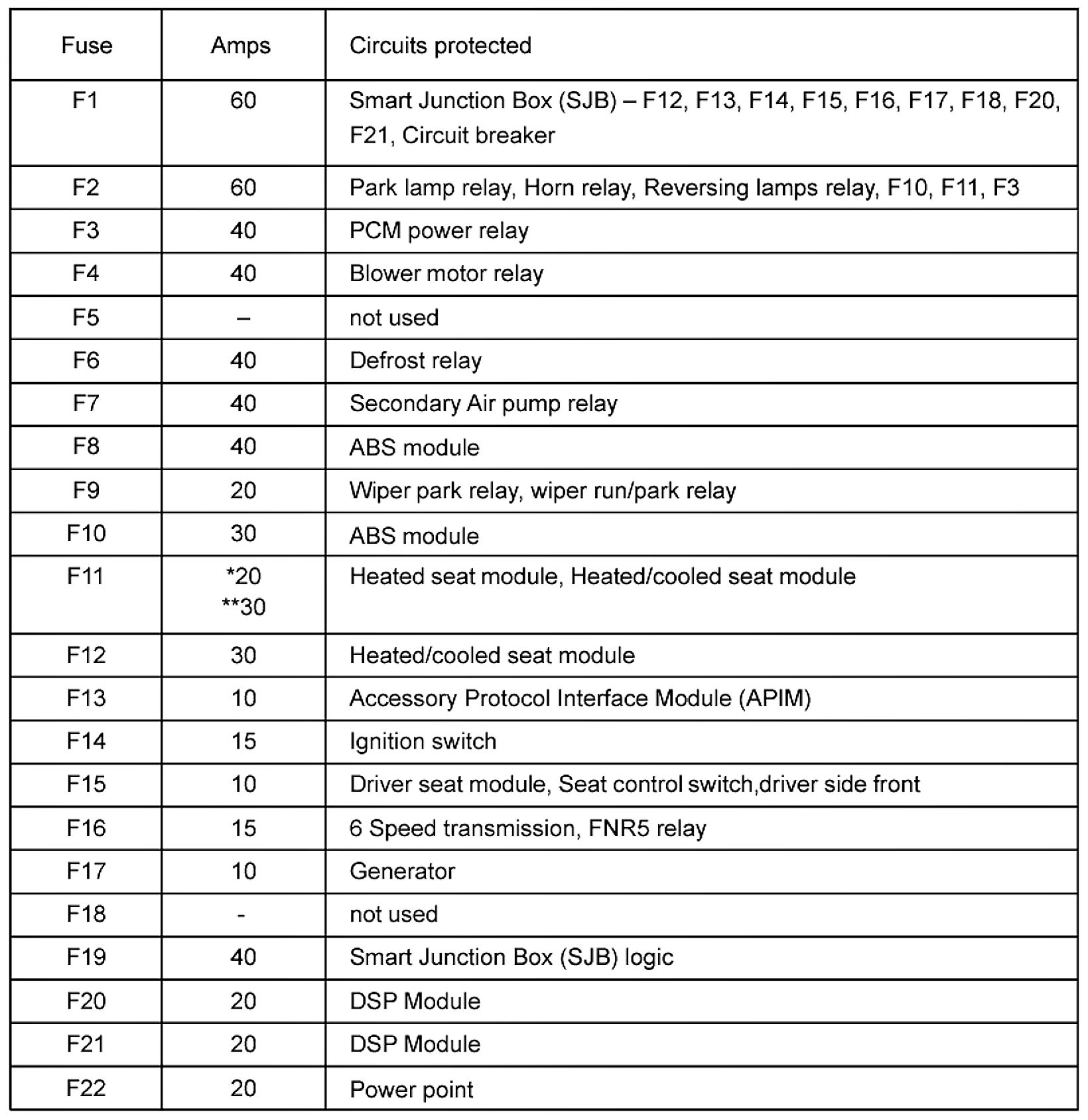

Fuse:

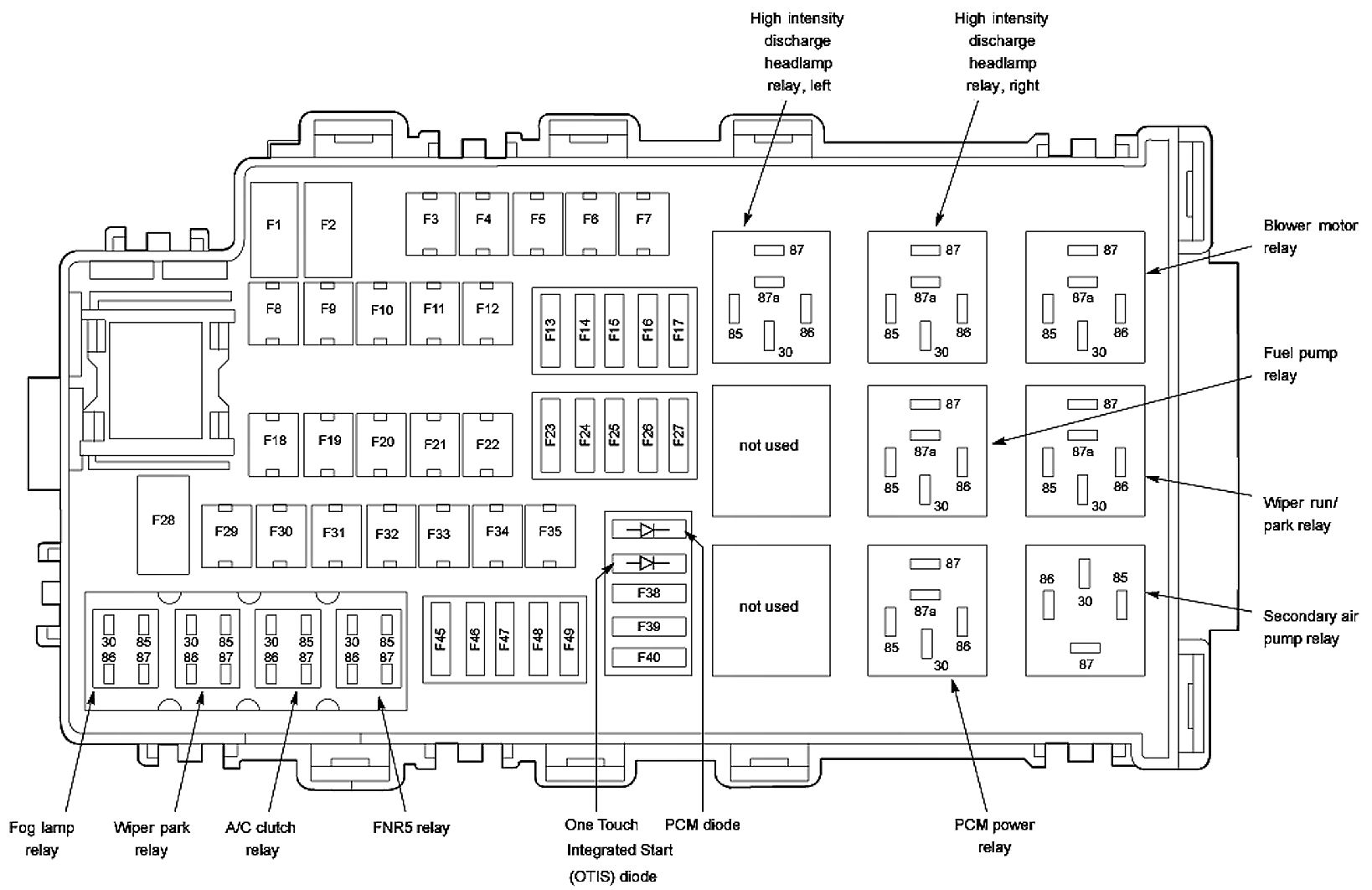

Battery Junction Box (BJB) / Power Distribution Box:
