Typical Diagnostic Reference Values
Typical Diagnostic Reference Values Notes (Part 1):
Typical Diagnostic Reference Values Notes (Part 2):

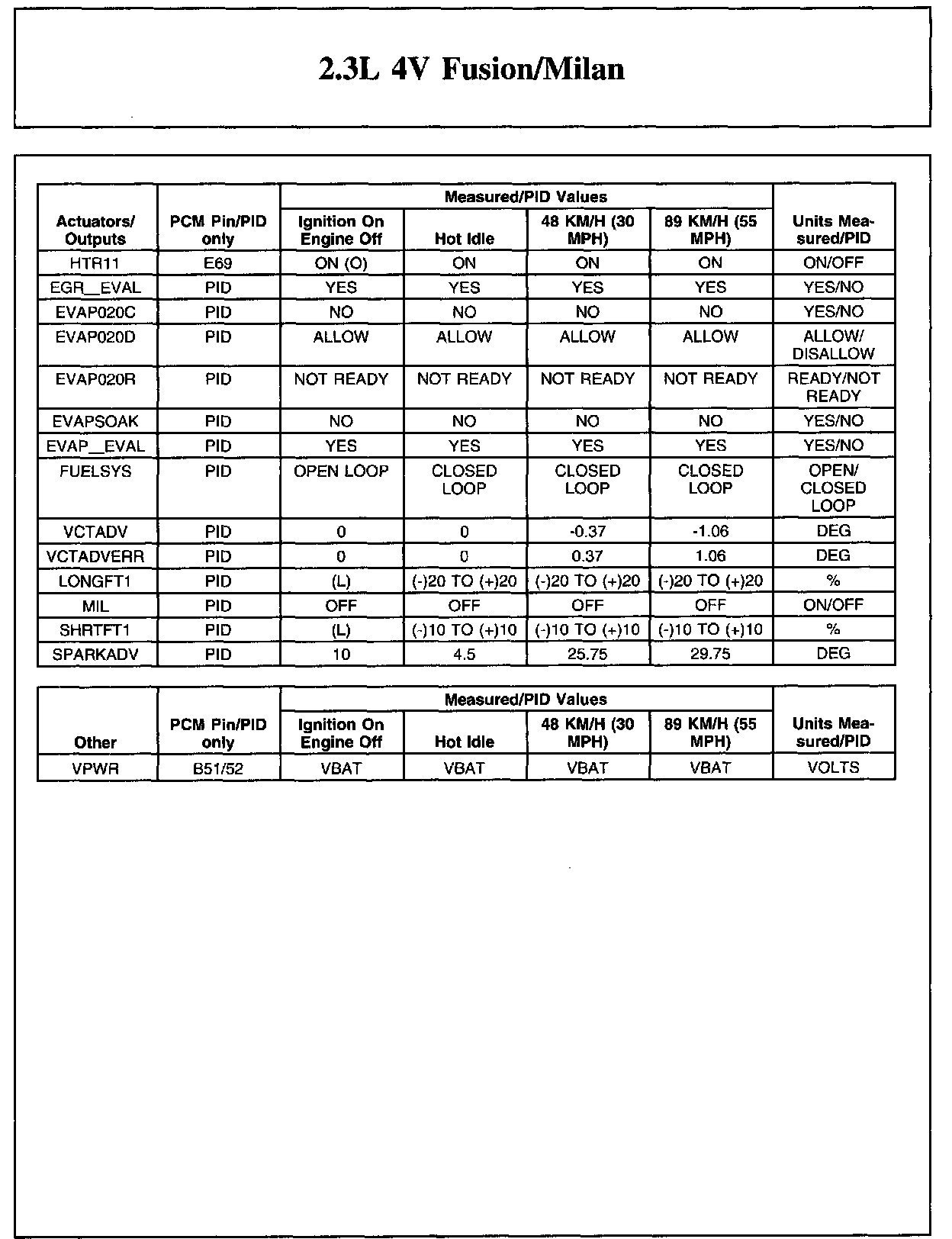

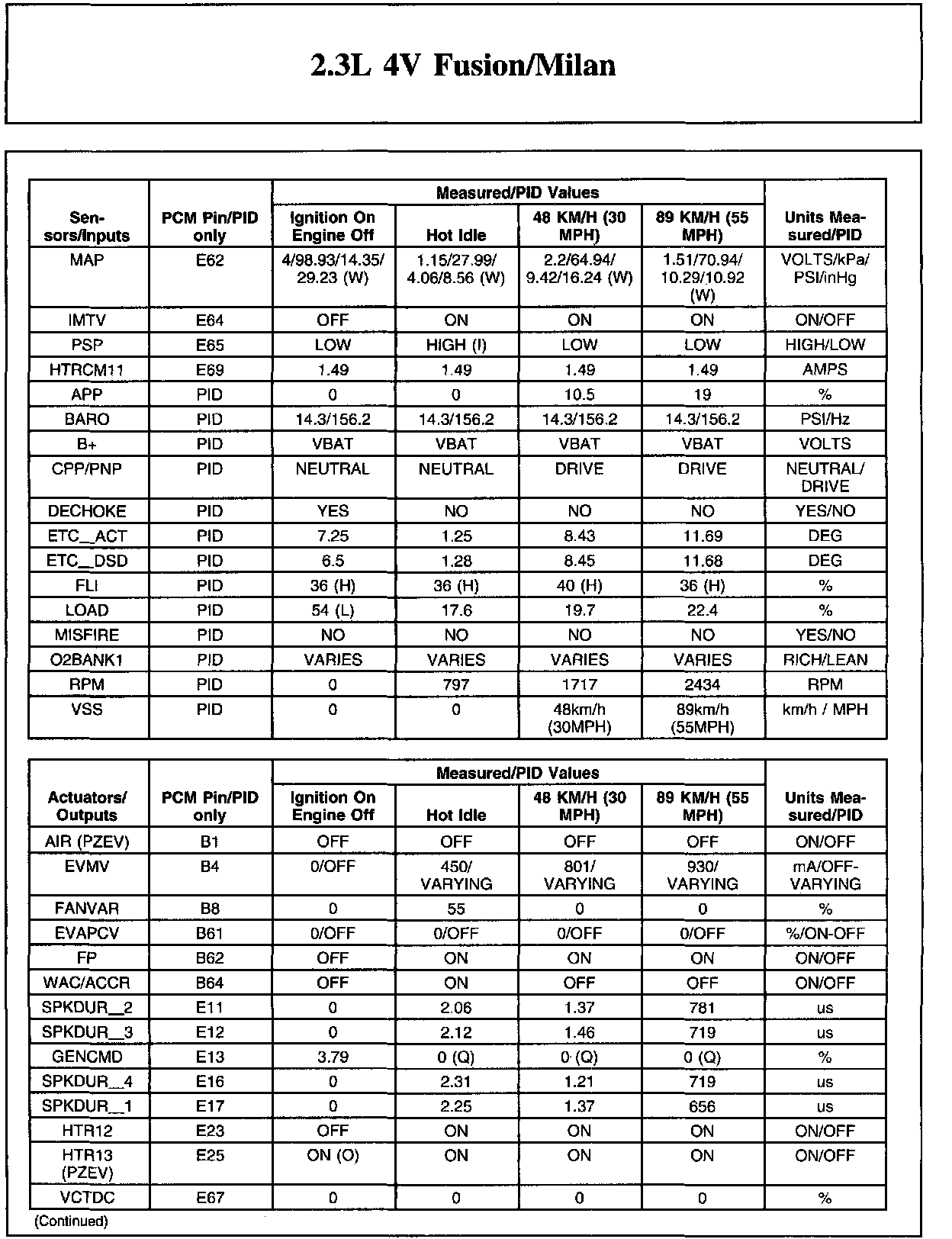

2.3L 4V Fusion/Milan (Part 1):
2.3L 4V Fusion/Milan (Part 2):
2.3L 4V Fusion/Milan (Part 3):
