Intake Manifold

Intake Manifold

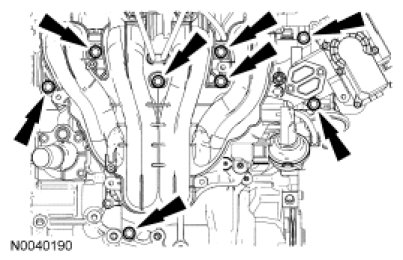

Install new gaskets, the intake manifold and the 8 bolts.
Tighten the bolts to 18 Nm (159 lb-in).





Throttle Body

NOTE: Discard the TB gasket.
Remove the 4 bolts and position the TB aside.
To install, tighten to 10 Nm (89 lb-in).
