Scan Tool Testing and Procedures




5R44E and 5R55E

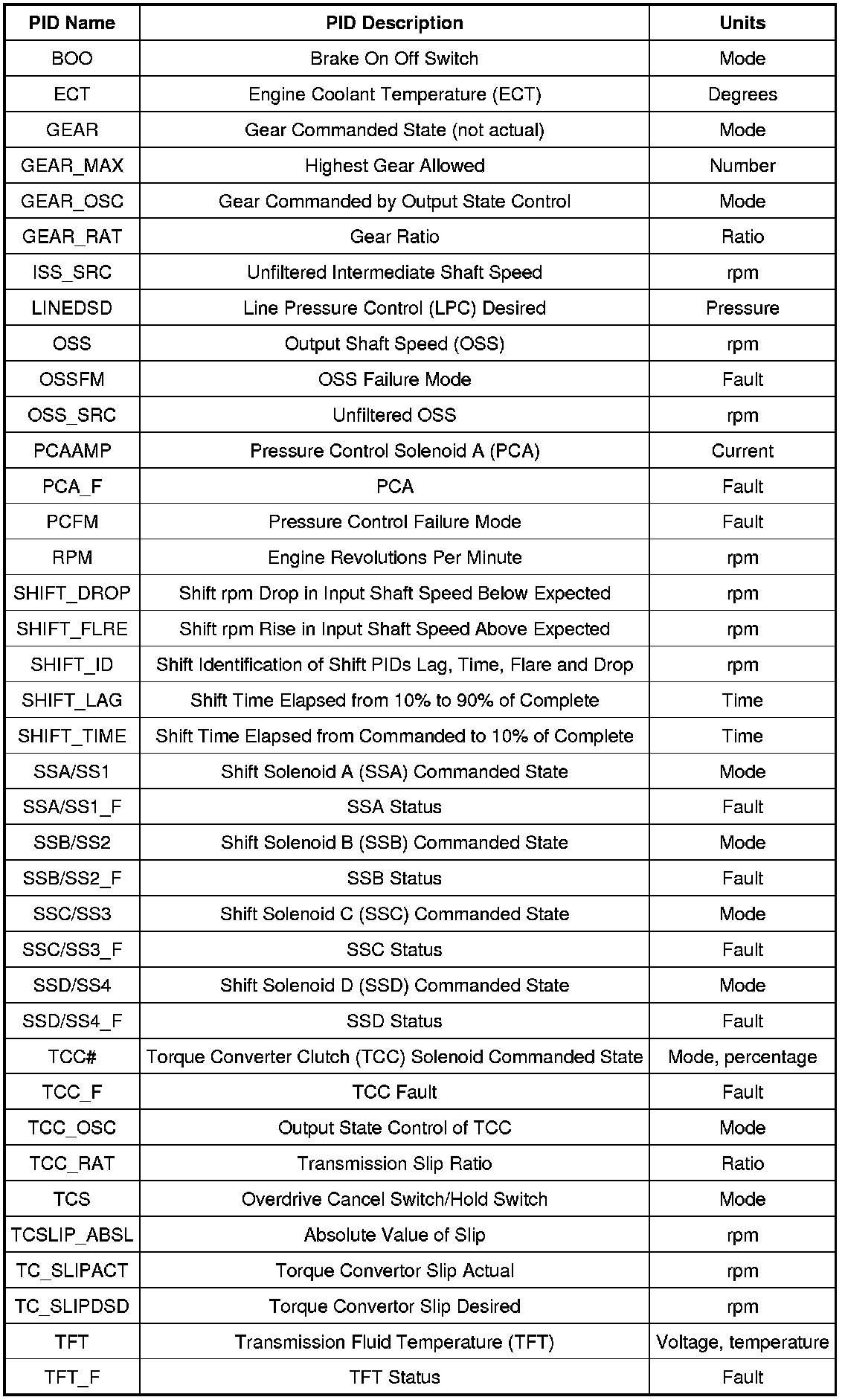

Diagnostic Parameters Identification (PID) Chart
