Control Module: Service and Repair

4X4 Control Module

Removal and Installation

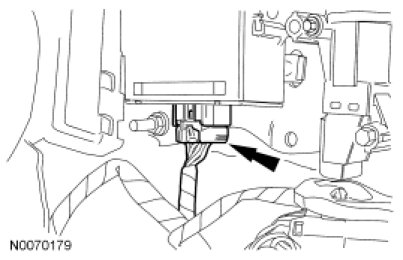

1. Working in the passenger compartment, pull the carpet out-of-the way, then disconnect the 4X4 control module electrical connector.

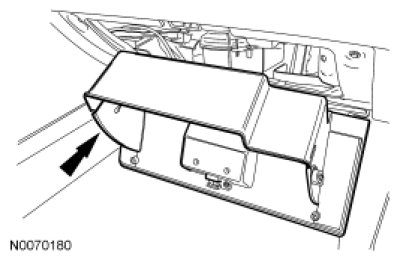

2. Disconnect the glove compartment rod. Rotate the glove compartment downward.

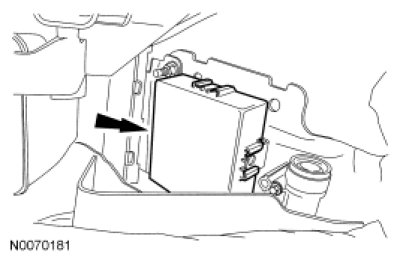

3. Carefully pry the 4X4 control module and bracket assembly from the holding bracket.





4. Remove the 4X4 control module and bracket assembly from the vehicle.

5. To install, reverse the removal procedure.
