Seat - Exploded View, Front

Seat - Exploded View, Front

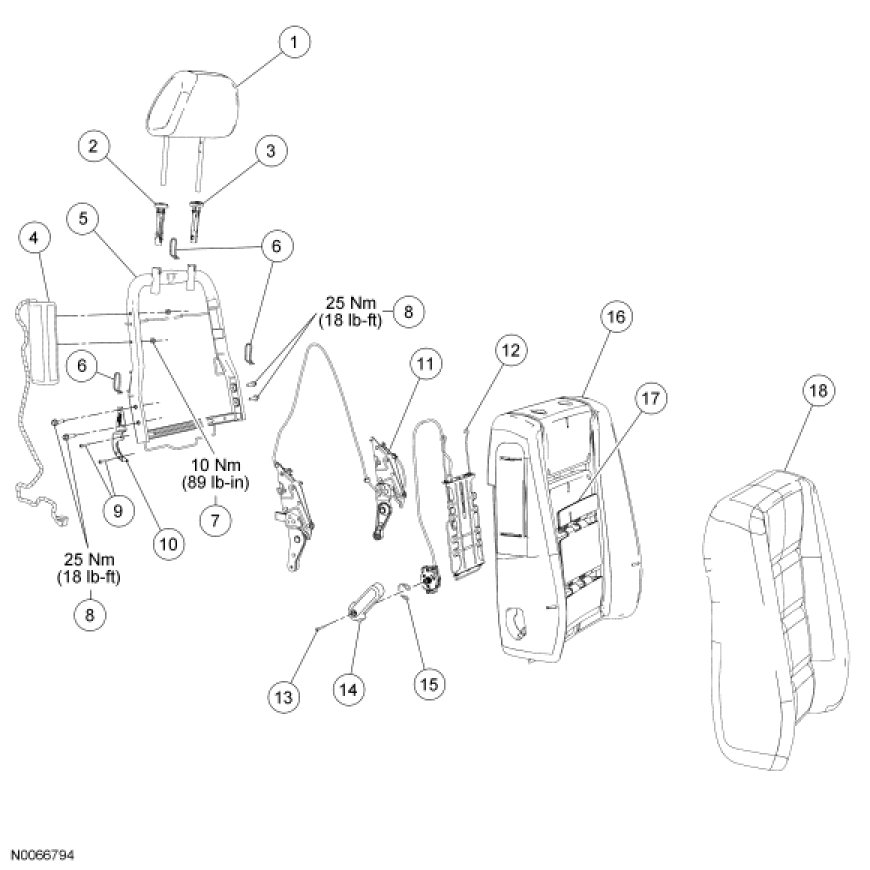

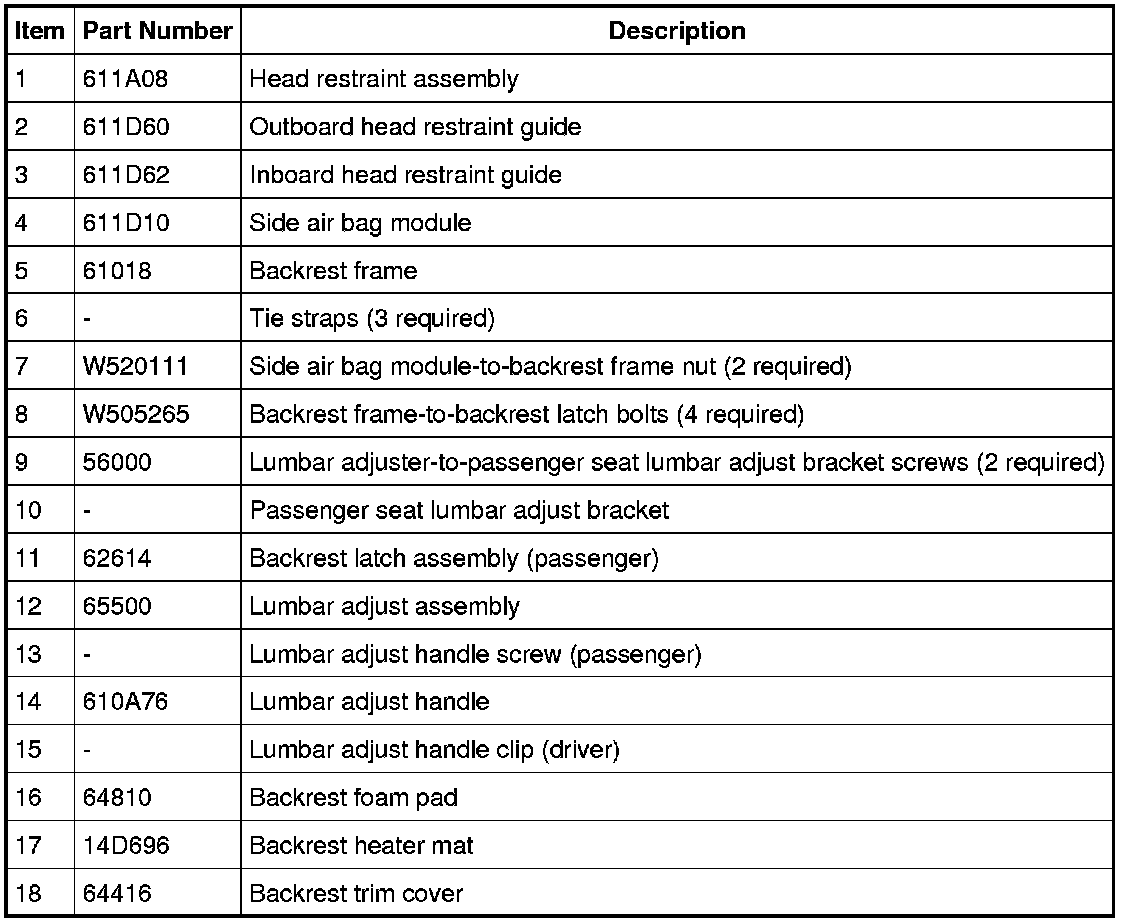

Front Seat Backrest

NOTE: RH shown, LH similar.

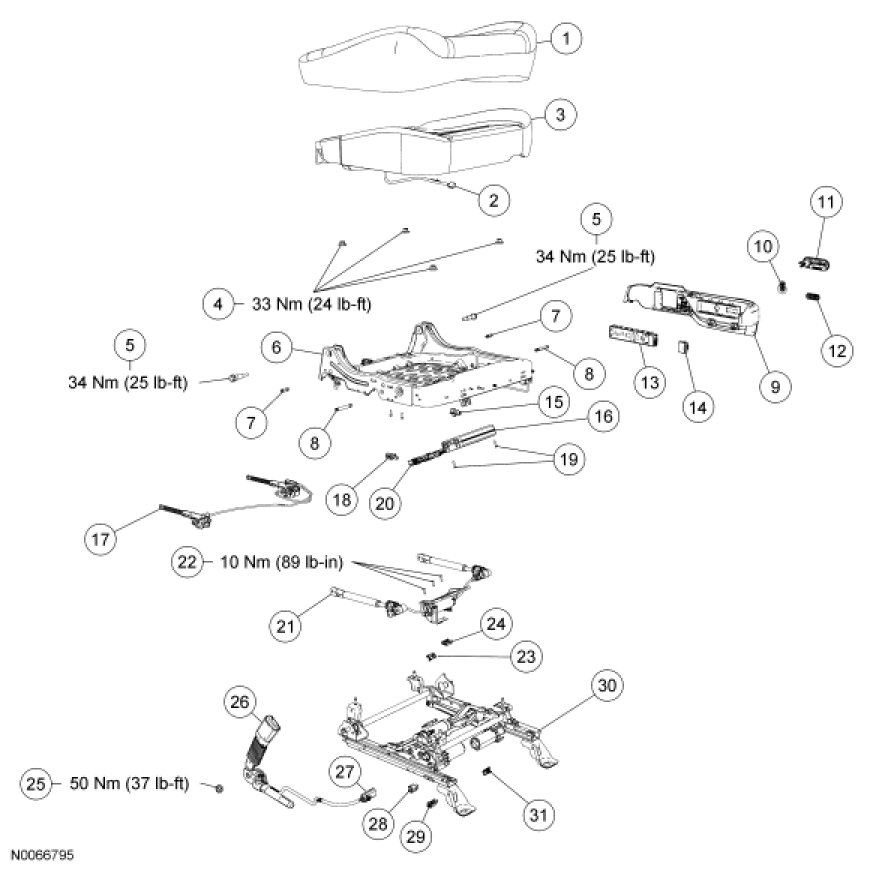

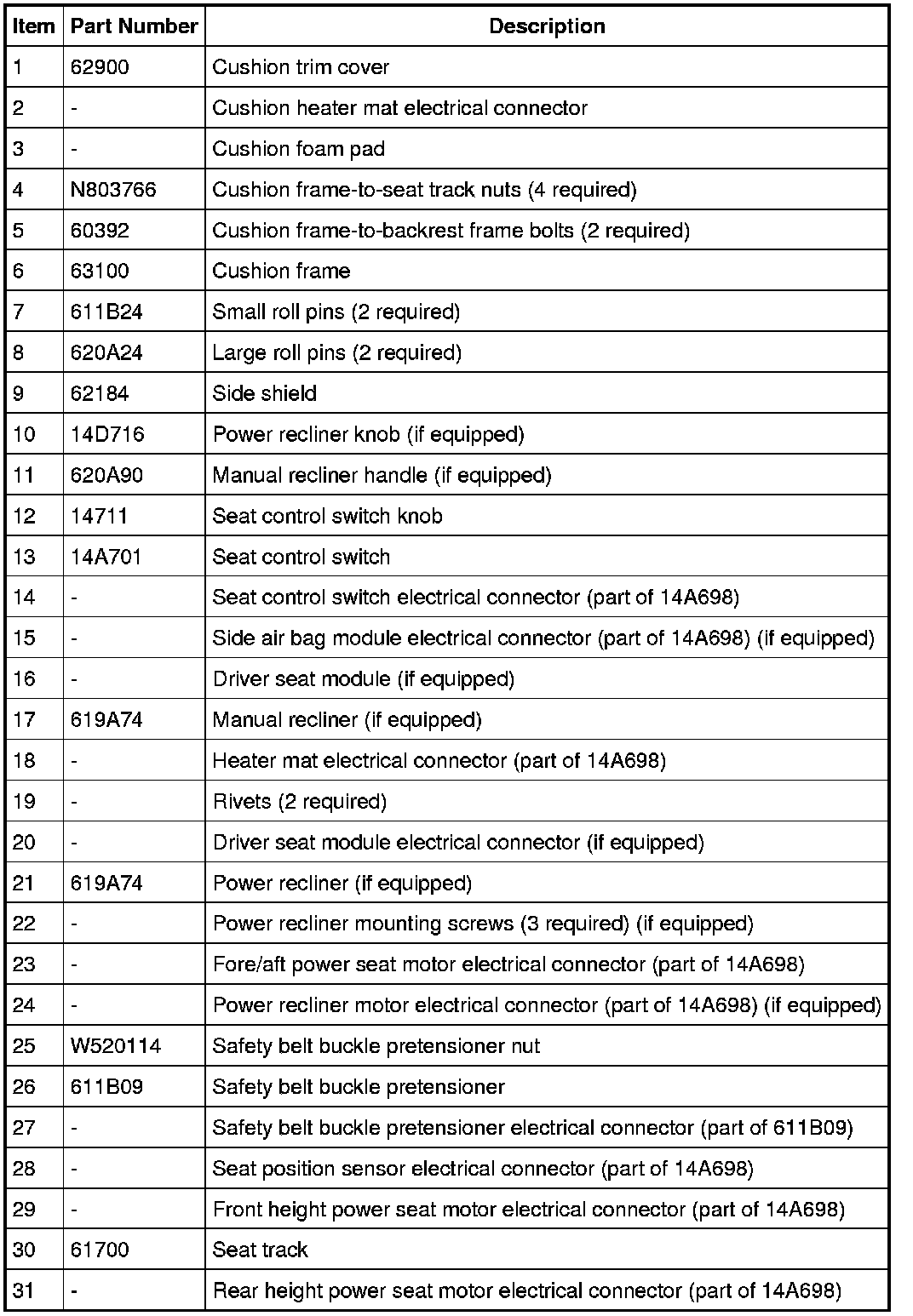

Driver Front Seat Cushion

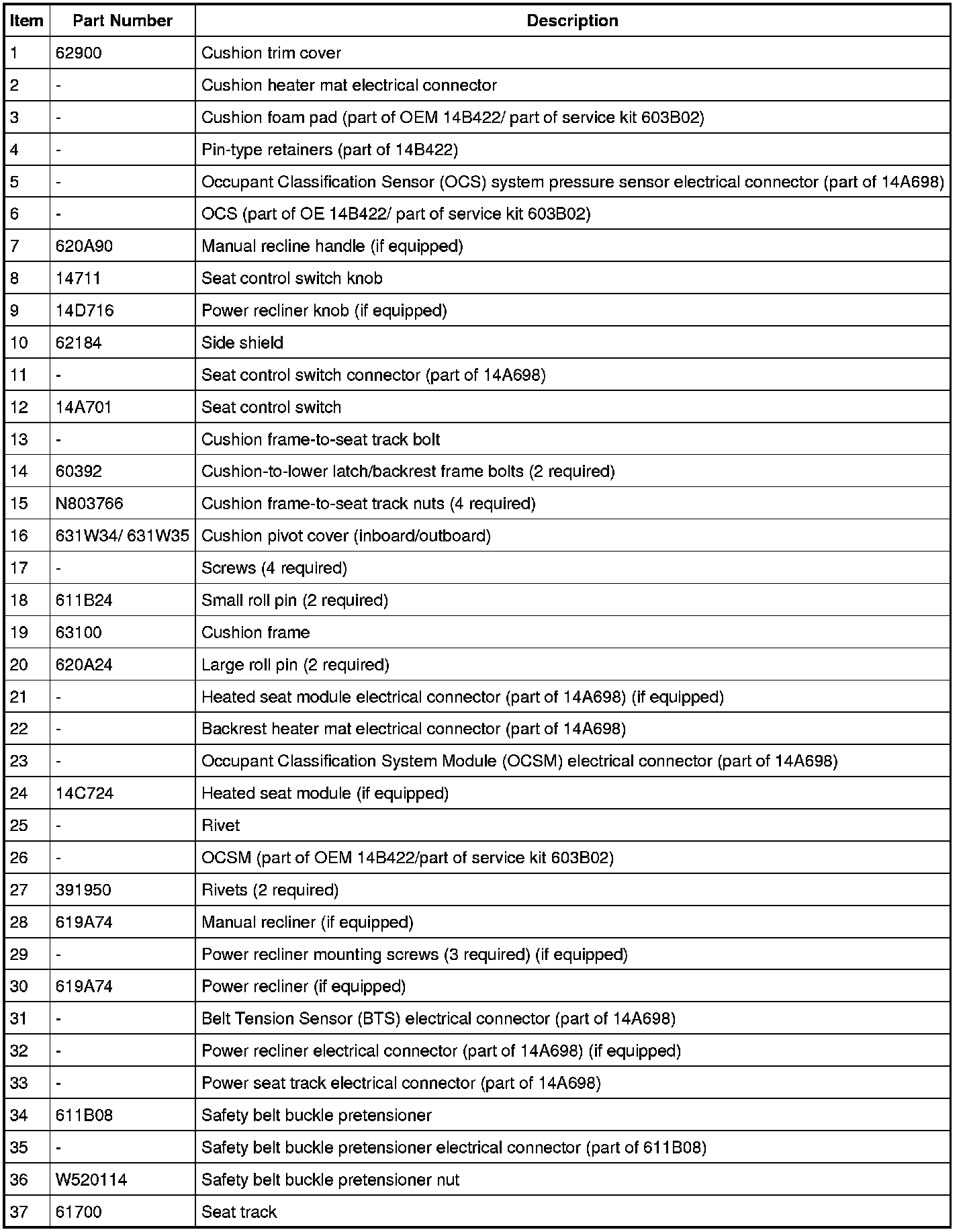

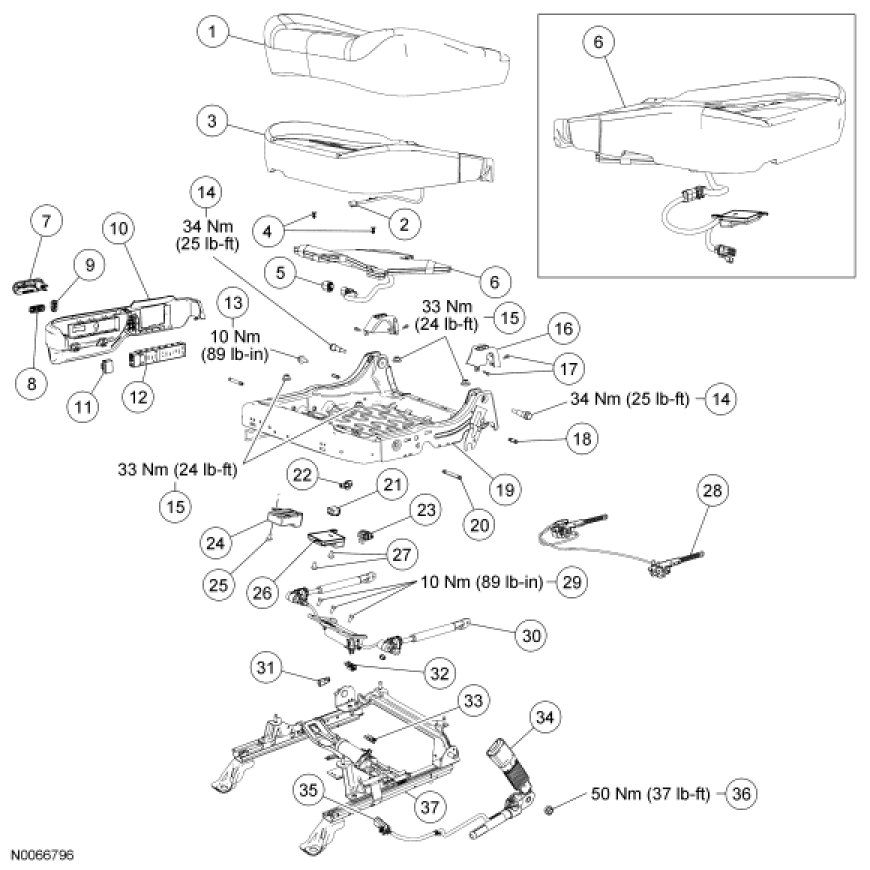

Passenger Front Seat Cushion









1. For additional information, refer to the procedures.
