Exhaust System

Exhaust System - Exploded View

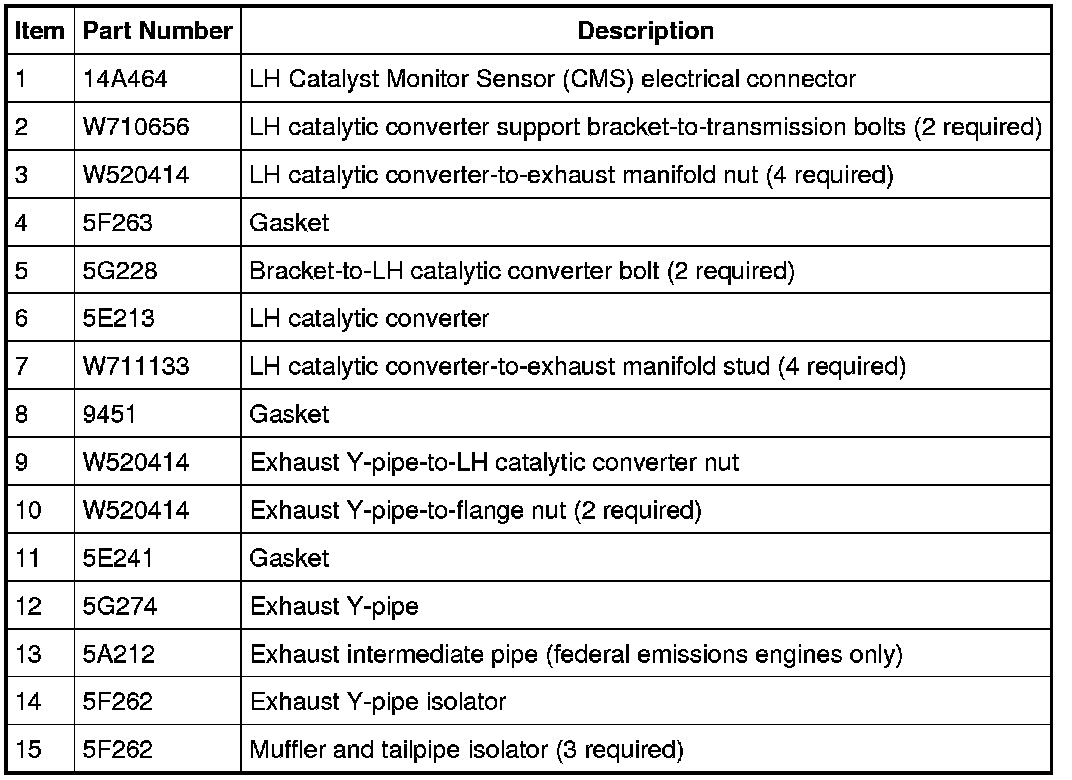

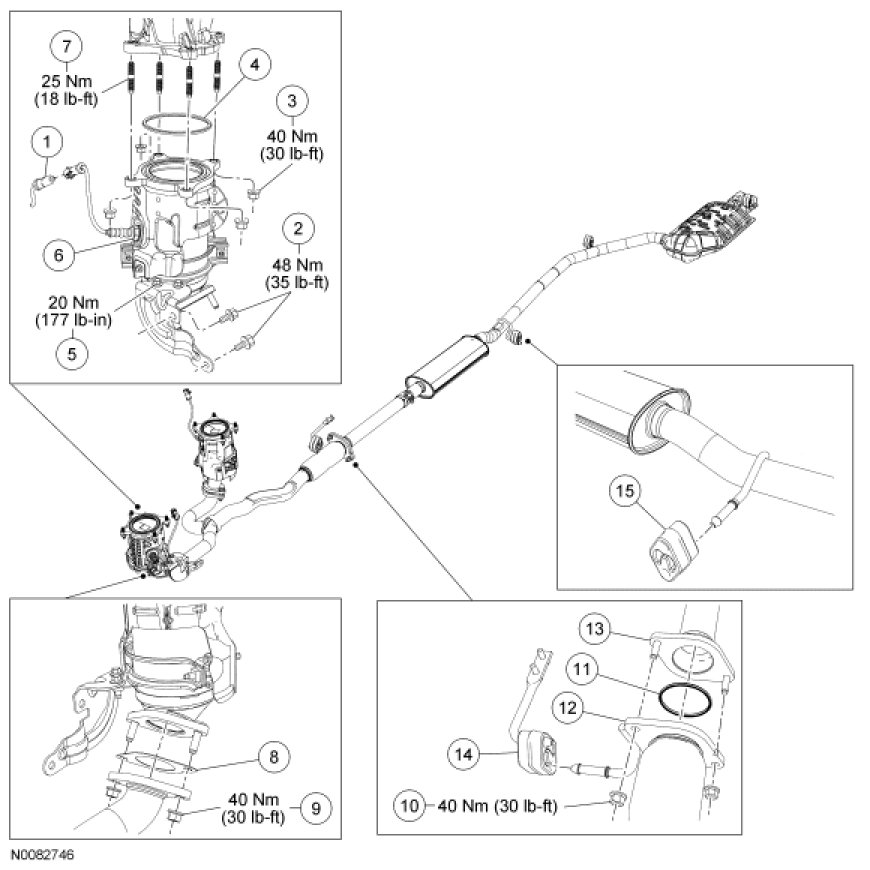

LH Catalytic Converter and Exhaust Y-Pipe

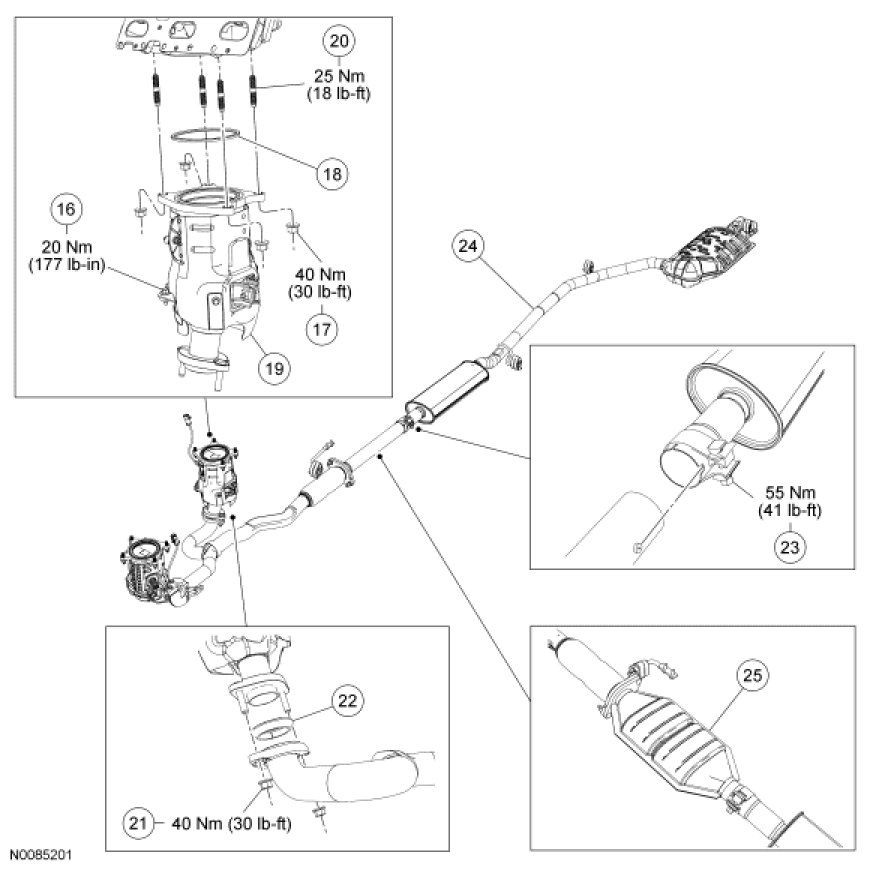

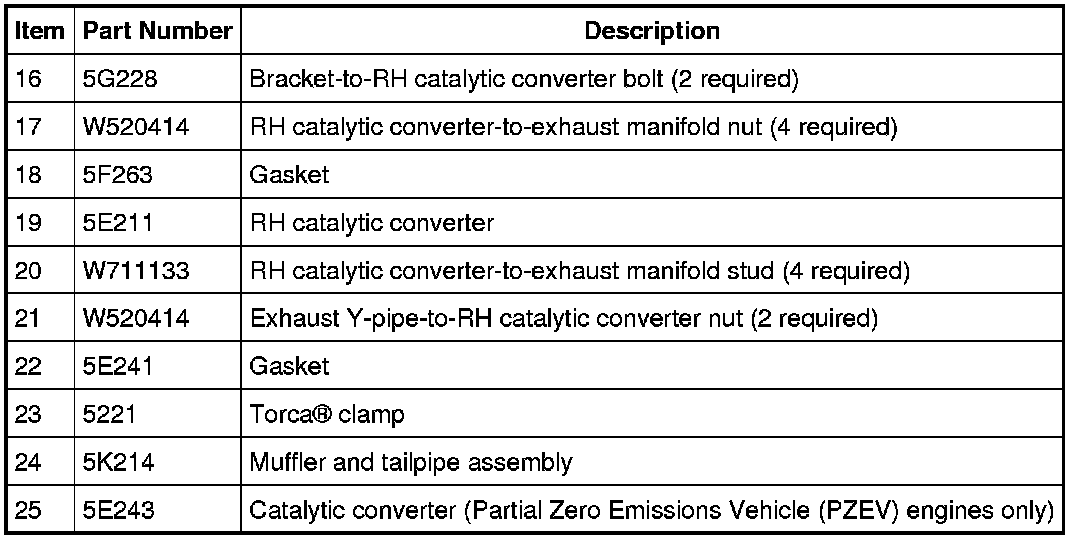

RH Catalytic Converter, Intermediate Pipe, Catalytic Converter and Muffler Assembly









1. For additional information, refer to the procedures.
