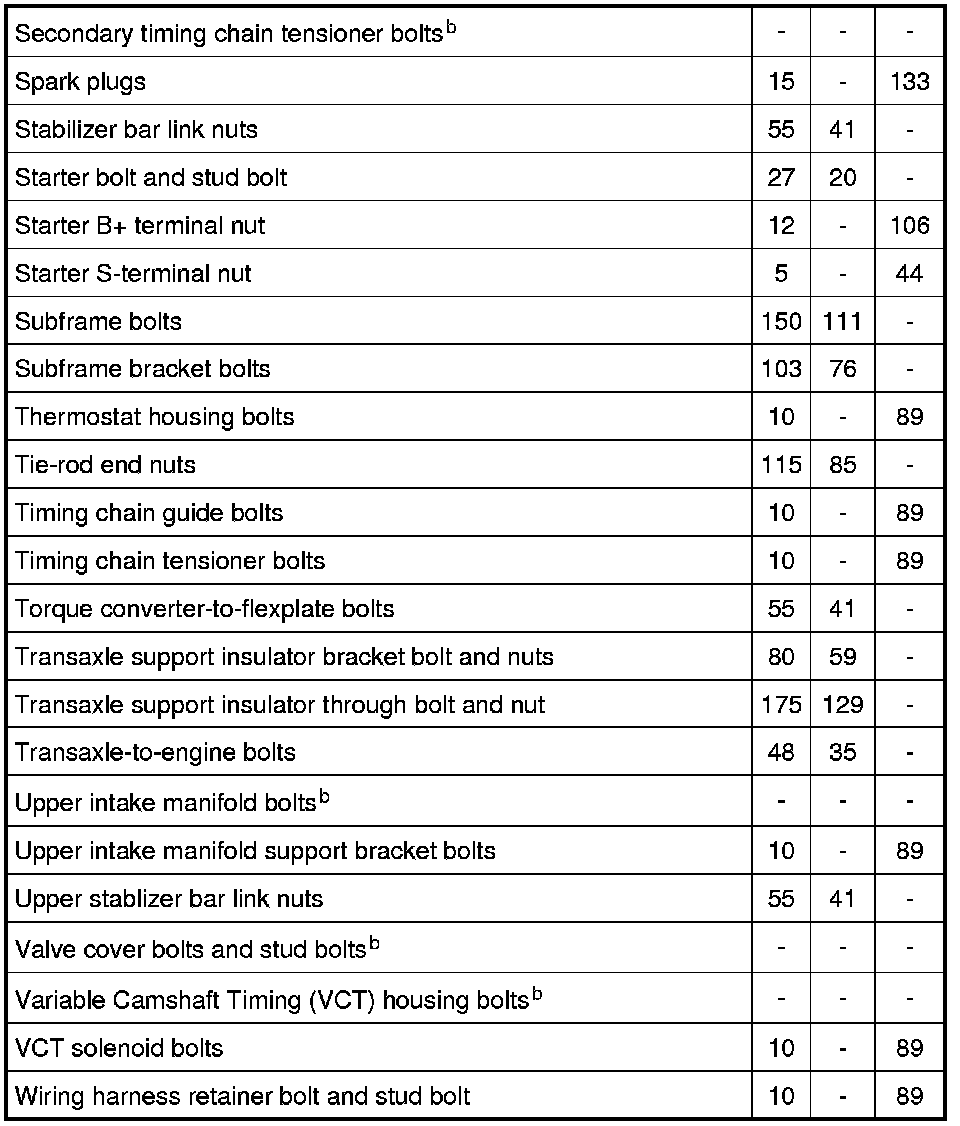

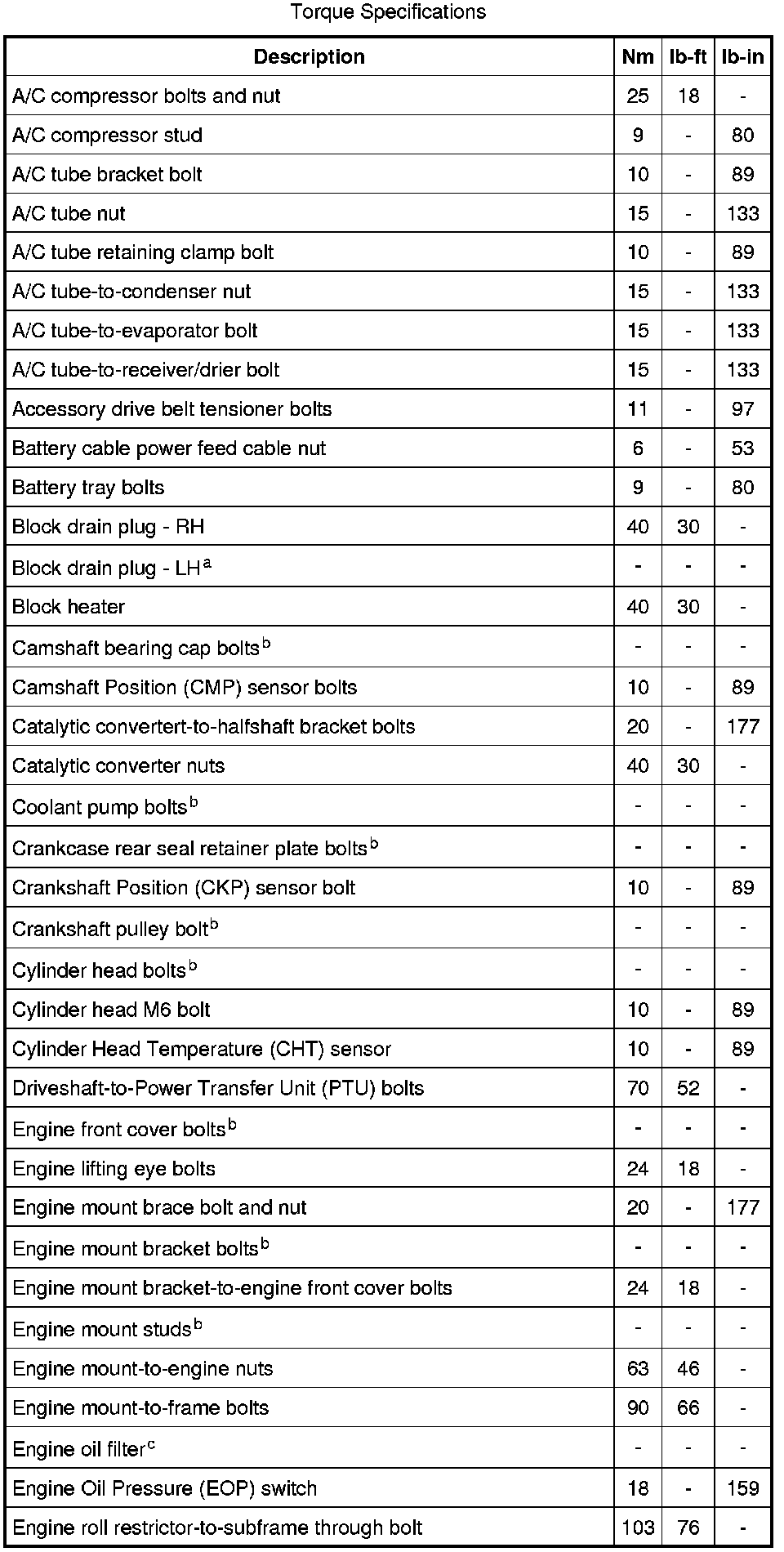

Torque Specifications

















a Tighten to 20 Nm (177 lb-in) plus an additional 180 degrees.

b Refer to the procedure.

c Tighten to 5 Nm (44 lb-in) plus an additional 180 degrees.
