Courtesy Lamp: Service and Repair

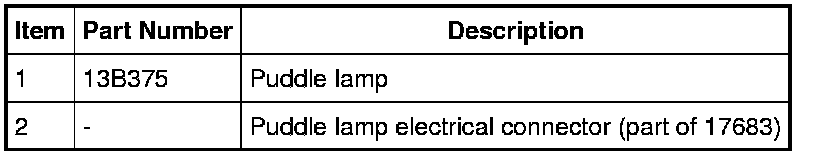

Puddle Lamp









Removal and Installation

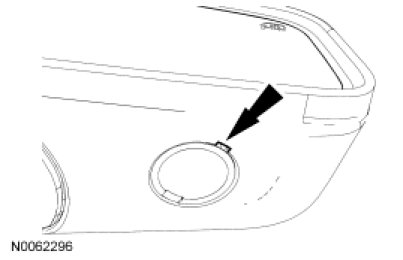

1. Release the tab to remove the puddle lamp from the mirror housing.

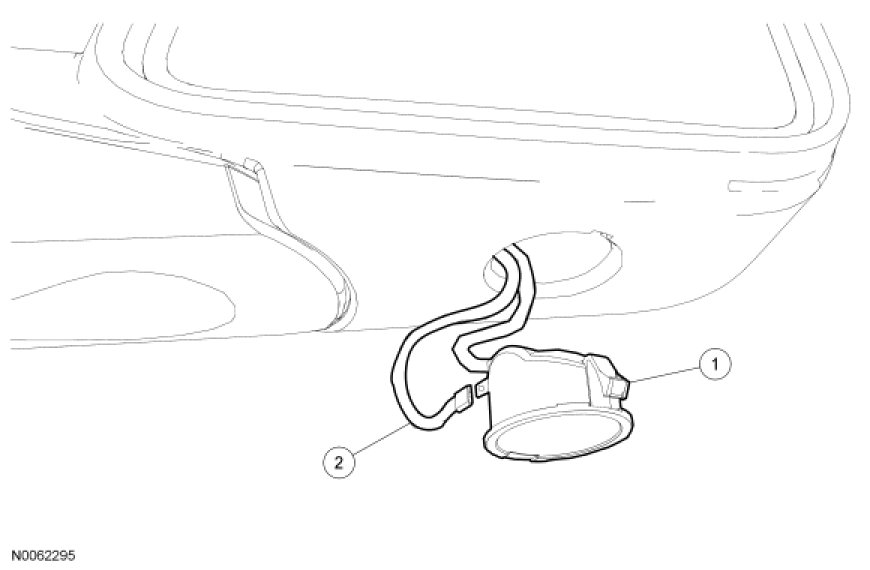

- Disconnect the electrical connector.





2. NOTE: An audible click can be heard when the puddle lamp is fully seated.

To install, reverse the removal procedure.
