Coolant Temperature Sensor/Switch (For Computer): Service and Repair

Engine Coolant Temperature (ECT) Sensor - 4.0L SOHC

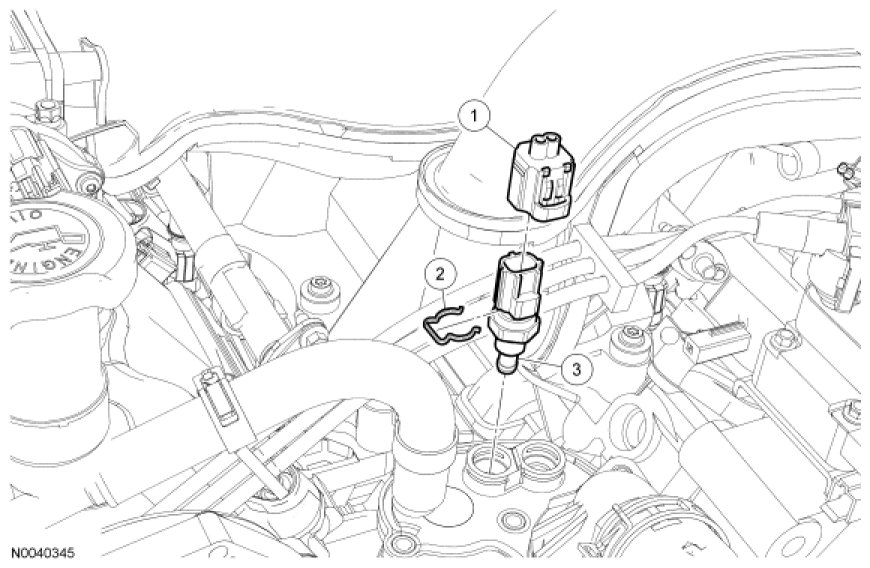

Removal and Installation

1. Drain the cooling system. For additional information, refer to Cooling System &/or Engine Block Heater.

2. Disconnect the Engine Coolant Temperature (ECT) sensor electrical connector.

3. Remove the clip and the ECT sensor.

4. To install, reverse the removal procedure.
