Intake Manifold

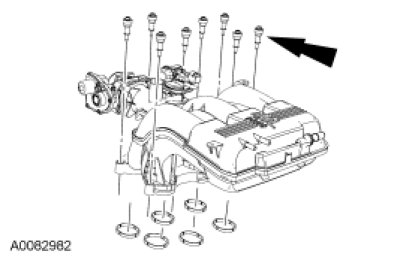

Install the gaskets, the intake manifold and the 8 bolts.
Tighten to 11 Nm (97 lb-in).
