Control Module: Service and Repair

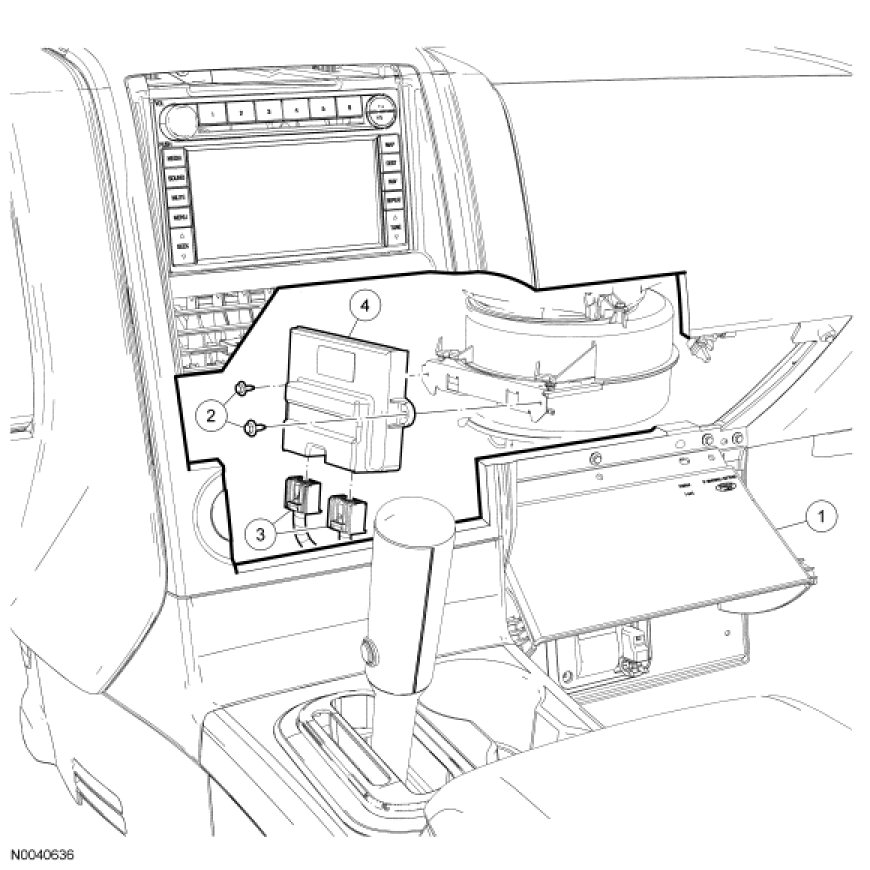

4X4 Control Module









1. Disconnect the battery ground cable. For additional information, refer to Battery.

2. Open the glove compartment, press in on sides and lower it to gain access.

3. Remove the 2 screws.

4. Disconnect the electrical connectors.

5. Remove the 4X4 control module.

6. To install, reverse the removal procedure.
