Cooling System
Radiator and Cooling Fan - Exploded View
Power Steering Fluid Reservoir and A/C Tubes

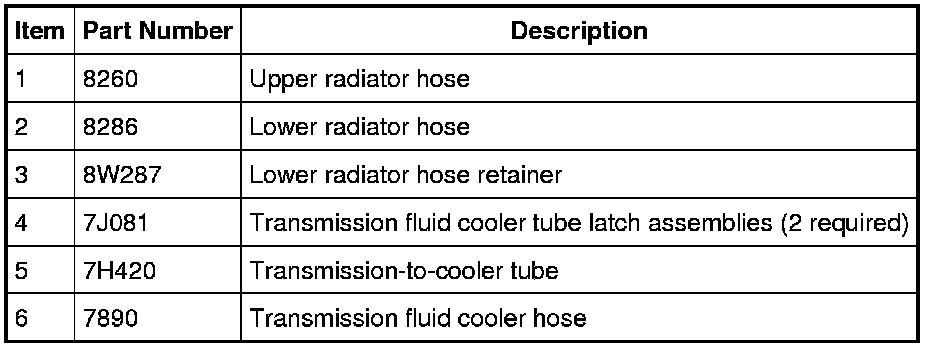

Radiator Hoses and Transmission Fluid Tubes
Cooling Fan and Shroud
Radiator, Support Brackets and Seals
Cooling Fan and Electronic Fan Clutch
Radiator and Cooling Fan - Exploded View

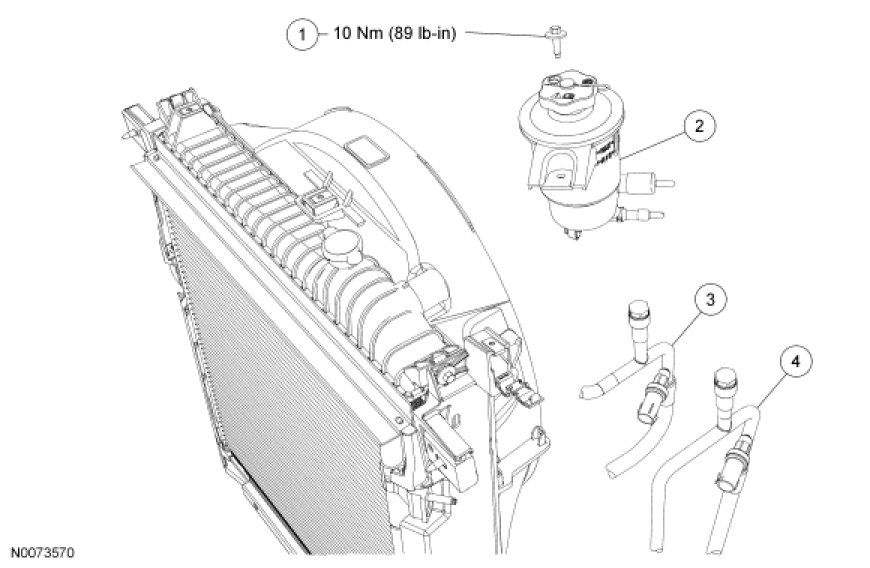

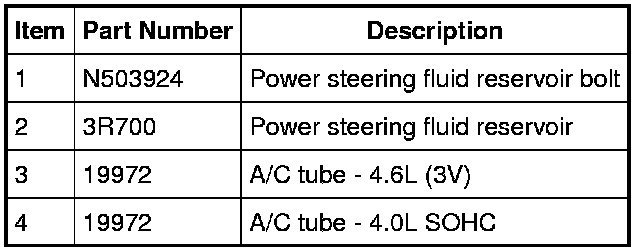

Power Steering Fluid Reservoir and A/C Tubes

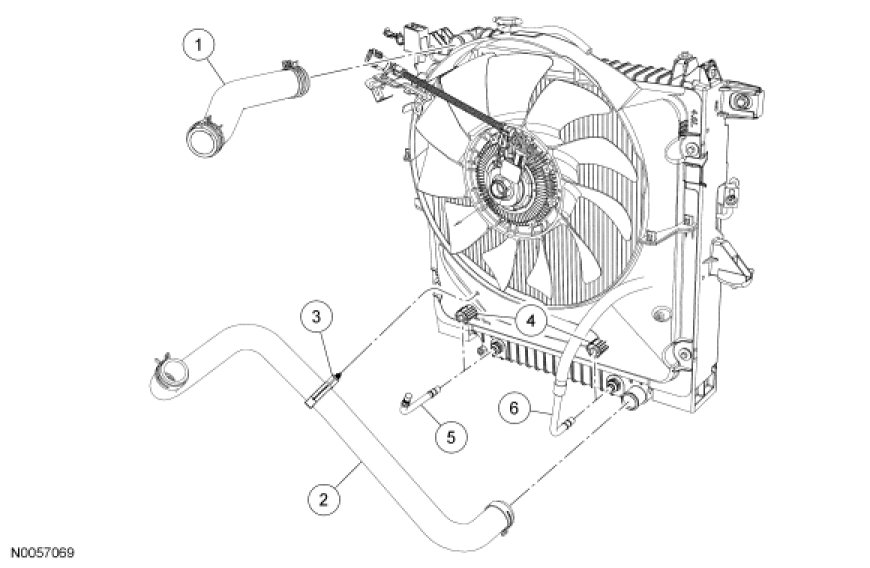

Radiator Hoses and Transmission Fluid Tubes

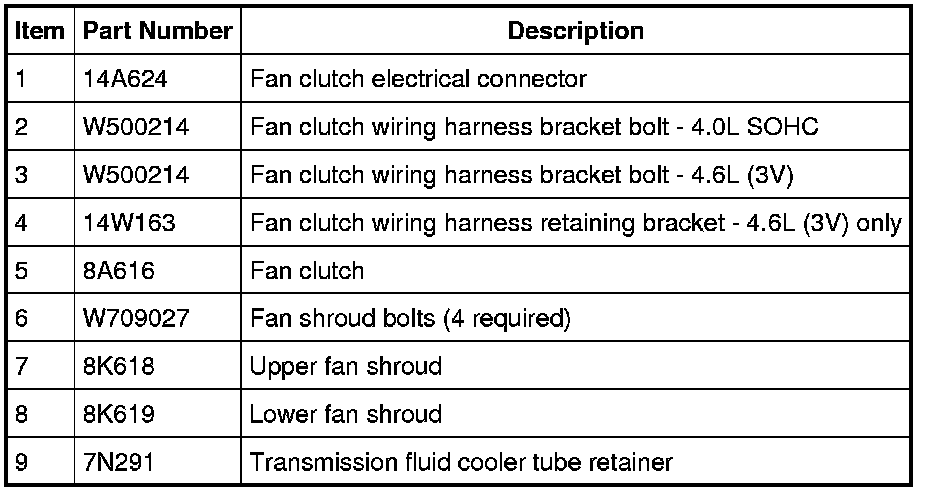

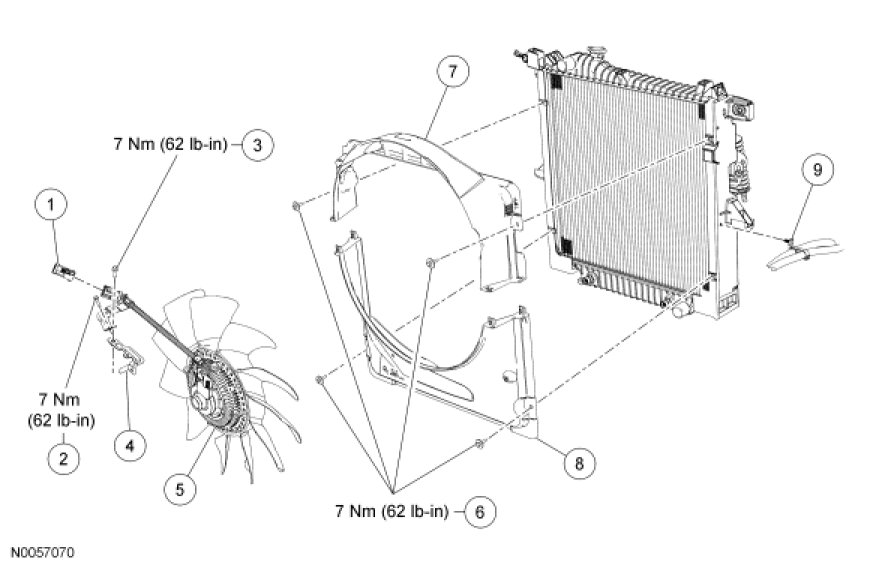

Cooling Fan and Shroud

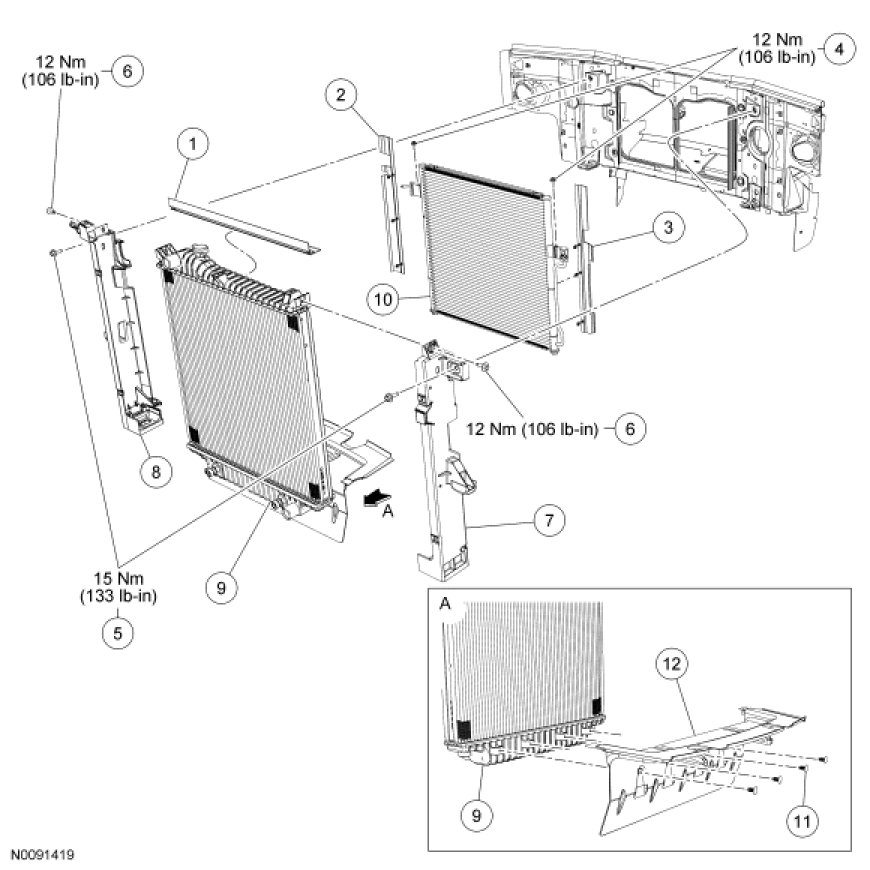

Radiator, Support Brackets and Seals

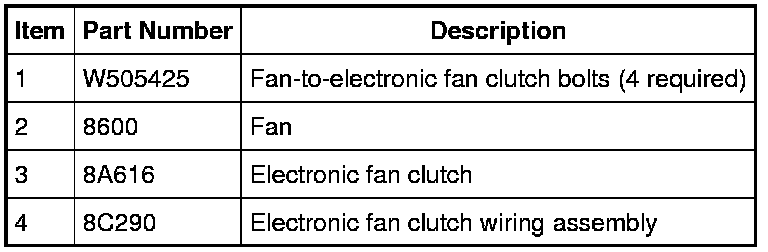

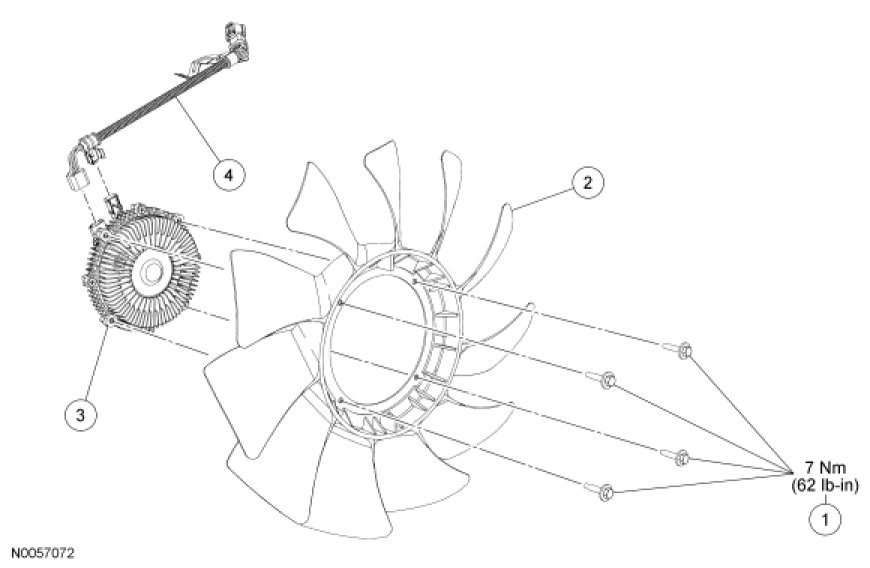

Cooling Fan and Electronic Fan Clutch
