Utility Storage Compartment

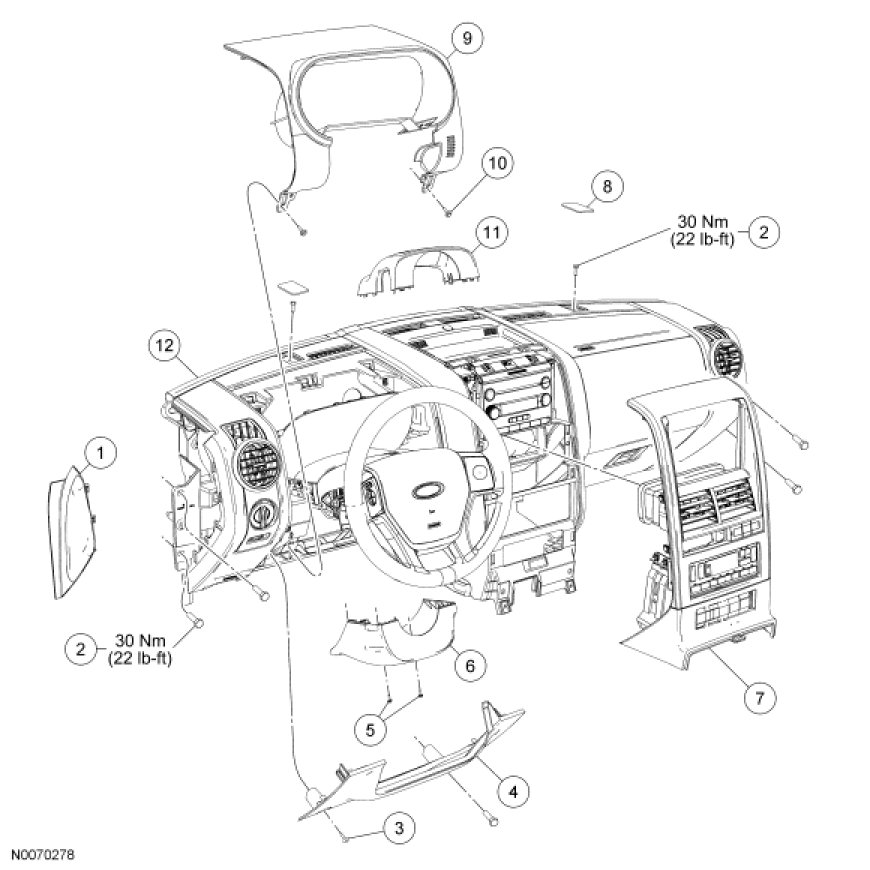

Instrument Panel - Exploded View
NOTE:
Explorer/Explorer Sport Trac shown, Mountaineer similar.
