Intake Manifold

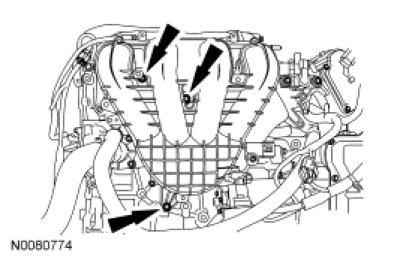

Install the intake manifold gaskets,
intake manifold
and the 7 bolts (3 shown).
Tighten to 18 Nm (159 lb-in).
